Genuine Chrysler 200 Axle Shaft
Car Axle Shaft- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
33 Axle Shafts found

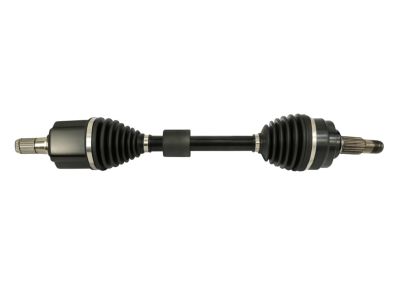

Chrysler 200 Drive Axles-Axle Assembly
Part Number: 5273546AE$227.23 MSRP: $510.00You Save: $282.77 (56%)

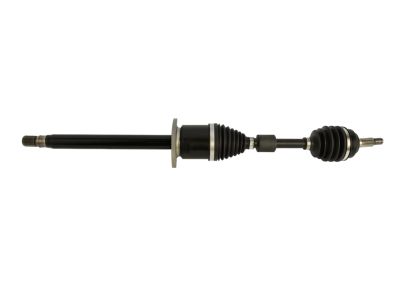

Chrysler 200 Front Drive Shaft Right
Part Number: 5273546AF$332.77 MSRP: $510.00You Save: $177.23 (35%)

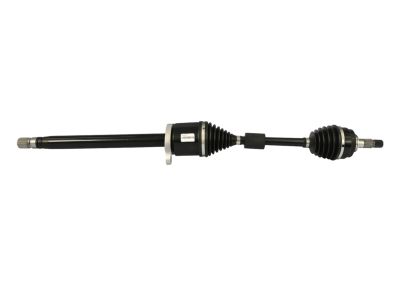

Chrysler 200 Front Drive Shaft Right
Part Number: 5085130AB$369.88 MSRP: $568.00You Save: $198.12 (35%)

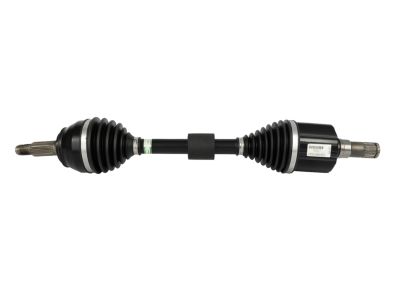

Chrysler 200 Drive Axles-Axle Assembly
Part Number: 5085180AF$319.15 MSRP: $474.00You Save: $154.85 (33%)
| Page 1 of 2 |Next >
1-20 of 33 Results
Chrysler 200 Axle Shaft
The Axle Shaft found in Chrysler 200 cars is used in transferring power from the differential to the wheels that powers the drive wheels and cause them to rotate in an opposite motion for better traction during the turning of a car. Most commonly made out of strong steel, these axle shafts are used to respond to all of the forces generated while driving while also ensuring that the car remains at the correct orientation. Chrysler 200 models involve the use of halfshafts, and these have splined ends that are supposed to attach to the differential as well as the wheel hubs. This design help to provide efficient power transfer in vehicles which has independent suspension system. There could have been some changes in design of Axle Shaft over the years but its working is general all through different models of Chrysler 200. A lot of problems can occur such as a worn CV joint or axle bearings which cause noise and vibration that is why the Chrysler 200 Axle Shaft requires regular inspections.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Chrysler 200 Axle Shaft at great affordable prices. Moreover, all genuine Chrysler 200 Axle Shaft come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Chrysler 200 Axle Shaft Parts Questions & Experts Answers
- Q: How do you remove the front and rear driveaxles on Chrysler 200?A: To remove the front axle shaft, start by setting the parking brake and removing the front wheel cover or hubcap. Loosen the axle shaft/hub nut and wheel lug nuts, but don't remove them yet. Raise the vehicle and support it securely on jackstands, then remove the lug nuts and the wheel. Next, remove the brake caliper and disc, supporting the caliper to protect the brake hose. Remove the two steering knuckle-to-strut bracket bolts and separate the strut from the steering knuckle, taking note of the cam bolt position for wheel alignment. Remove the axle shaft/hub nut and pull the steering knuckle out and away from the outer CV joint of the axle shaft, striking the stub shaft if necessary. Retrieve the washer from the stub shaft and replace the axle shaft/hub nut. To disengage the inner CV joint from the transaxle, support the outer end of the axle shaft, insert a prybar between the inner CV joint and the transaxle case, and pry it out sharply. On models with a passenger's side intermediate shaft, use a prybar to disengage the inner CV joint from the intermediate shaft bearing. Carefully withdraw the inner CV joint from the transaxle, being cautious not to damage the sealing lip of the axle shaft oil seal. For the rear axle shaft removal, begin by setting the parking brake and removing the rear wheel cover or hubcap. Loosen, but don't remove, the axle shaft/hub nut. Raise the vehicle and support it securely on jackstands, placing the shift selector lever in Neutral. Remove the rear Differential assembly from the vehicle. Then, remove the axle shaft/hub nut and pull the axle shaft from the hub and bearing assembly towards the center of the vehicle. If needed, strike the end of the stub shaft with a soft-faced hammer to separate the splines from the hub and bearing assembly. For installation, reverse the removal steps, ensuring thorough cleaning of splines and sealing surfaces, applying multi-purpose grease as needed, and sharply seating the snap-ring on the inner CV joint stub shaft into its groove in the differential gears or rear differential gears. Tighten the axle shaft/hub nut and lug nuts to complete the process.
