Genuine Ram 1500 Oil Pan
Oil Drain Pan- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
14 Oil Pans found

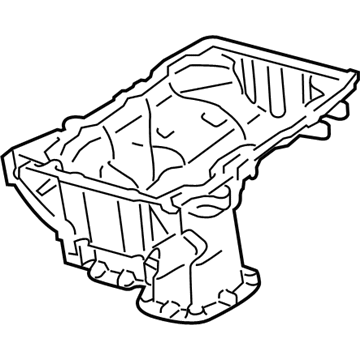

Ram 1500 Oil Pan
The Oil Pan of Ram 1500 vehicles is a component which is used to hold the engine oil for better lubrication of the moving parts of the engine. The Oil Pan is located at the lower area of the engine and bolted to the engine head by a gasket to avoid leakage of the oil and is also a receptacle for the oil. It is in contact with the road and is therefore easily vulnerable to the many dangers of the road, especially off-road, which may result into rusting, denting and cracking. The feature of the typical Oil Pan design helps in oil containment for normal manufacturing but other designs like the "dry sump" are employed in specific conditions like racing motorcycles and piston aircraft engines to improve on oil management under pressure. But still in the case of Ram 1500 the major focus has been given to the oil can setup and the overall setup means the engine needs to be placed at a slightly elevated level to provide the room for the sump. In general, for maximizing its performance and longevity, the Ram 1500 engine truly relies on the Oil Pan.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Ram 1500 Oil Pan at great affordable prices. Moreover, all genuine Ram 1500 Oil Pan come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Ram 1500 Oil Pan Parts Questions & Experts Answers
- Q: How to remove the oil pan in Hemi engine on Ram 1500?A: Make sure the engine is completely cool before starting to remove the oil pan. First, disconnect the battery cable from the negative terminal then jack up and secure the vehicle using jack stands. Then drain out engine oil and replace the oil filter. Remove fan with shroud and dust cover or transmission brace. Disconnect automatic transmission cooler lines from radiator and move them aside. Take away crossmember beneath oil pan (4WD models have front crossmember mounting bolts), if any, unbolt steering gear without disconnecting fluid lines, indicating front driveshaft position prior to removing it from front axle. Safely support front axle with jacks at each end and remove axle mounting bolts in order to lower front axle sufficiently for removal of oil pan. Support engine above with either an engine hoist or a support fixture while reducing some weight on engine and taking out through-bolts from engine mounts for all models. Further raise engine if necessary, take out transmission mount and lift transmission for more clearance or space. Then unscrew all the bolts holding down oil pan ensuring that gentle force is applied until it comes loose from the engine so as not to spoil rubber gasket by hitting it with rubber mallets. Be careful when prying on gasket not to overdo it.Once there is enough space pull off oil pump pick-up tube followed by windage tray/gasket assembly which should be thrown away too. Clean sludge from inside of the pan using solvent; make sure that both surfaces of its mounting area as well as those of engine block are thoroughly cleaned; they were recently wiped clean with rag soaked in brake cleaner too. Mount a new O-ring on each side of this part before fastening bolts in sequence shown here. Replace another windage tray gasket assembly but ensure alignment studs are positioned correctly into block's holes. Positioning it on top aligning its' holes properly so as not to disrupt anything if windage tray/gasket is used while tightening bolts by hand. Finally, tight fasteners in order as specified patterns and complete the remaining steps in reverse order. Top off with correct oil type and amount, install a new oil filter, check for leaks when engine starts then return vehicle back into service.
