Genuine Ram 2500 Control Arm
Suspension Arm- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
31 Control Arms found

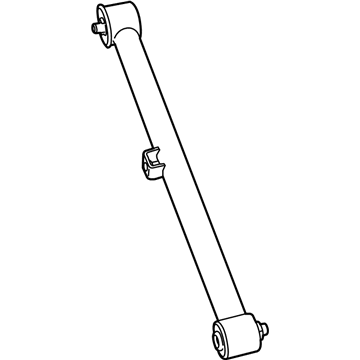

Ram 2500 Suspension Control Arm Rear Lower
Part Number: 4877152AB$275.63 MSRP: $422.00You Save: $146.37 (35%)
Ram 2500 Suspension Control Arm Front Right Lower
Part Number: 4877282AE$364.10 MSRP: $556.00You Save: $191.90 (35%)

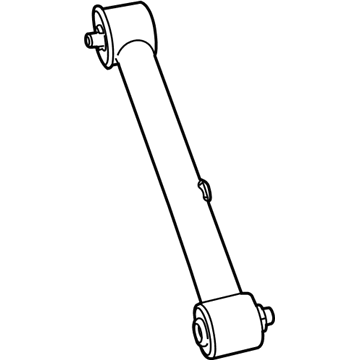

Ram 2500 Suspension Control Arm Rear Upper
Part Number: 4877143AA$228.80 MSRP: $349.00You Save: $120.20 (35%)
Ram 2500 Suspension Control Arm Front Left Lower
Part Number: 4877283AE$364.10 MSRP: $556.00You Save: $191.90 (35%)
| Page 1 of 2 |Next >
1-20 of 31 Results
Ram 2500 Control Arm
The Control Arm of Ram 2500 vehicles allows the connection between the frame of the car and the wheels to enable the movement of the suspension. This component enables the wheels to rotate in order to conform to the road surface irregularities giving necessary support to the wheel and other parts, thus making for safer handling. Ram 2500 vehicles have incorporated different types of Control Arm since the early models, with conventional stamped steel Control Arm, and Cast Iron/Aluminium Control Arm, which provides increased strength and durability together with less weight than the stamped steel Control Arm. Stamped steel Control Arms are durable, however, the material rusts and the Arms are known to wear over a period, thus requiring replacement of wear parts such as the bushing and ball joints. By contrast, modern models are designed to accommodate higher performance with greater durability in construction enhanced by the use of DOM tubular steel or aluminum. Several innovations that relate to the Ram 2500 vehicles' Control Arm provide improved handling as well as stability particularly during reckless driving or boxed up in addition to alteration of height.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Ram 2500 Control Arm at great affordable prices. Moreover, all genuine Ram 2500 Control Arm come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Ram 2500 Control Arm Parts Questions & Experts Answers
- Q: How to Replace the Lower Control Arm on My Ram 2500?A: This procedure applies to models equipped with independent front suspension. For 2WD models, start by loosening the wheel lug nuts and raising the vehicle. Support it securely on jackstands placed under the frame rails. Remove the wheel and support the outer end of the lower control arm with a floor jack. Remove the Shock Absorber. Next, remove the brake caliper, caliper bracket, and disc. Install a suitable internal type spring compressor and compress the spring sufficiently to relieve all force from the upper spring seat. Loosen the nut on the lower balljoint stud and disconnect the balljoint from the Steering Knuckle. Disconnect the link from the stabilizer bar. Lift the knuckle and hub assembly up and place a block of wood between the upper control arm and the frame to support the assembly out of the way. Pull the lower control arm down and guide the compressed coil spring out. Mark the positions of the eccentric washers and remove the bolts that attach the control arm to the frame. Pull the lower arm from its frame brackets. To install, tighten all fasteners, but don't tighten the pivot bolt nuts until the vehicle is sitting at normal ride height. For 4WD models, follow similar steps, including removing the wheel, driveaxle, and stabilizer bar. Remove the lower shock absorber bolt and disconnect the balljoint from the steering knuckle. Remove the lower control arm pivot bolts and pull the lower arm from its frame brackets. Installation is the reverse of removal, ensuring all fasteners are tightened and the pivot bolt nuts are tightened at normal ride height.
