2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

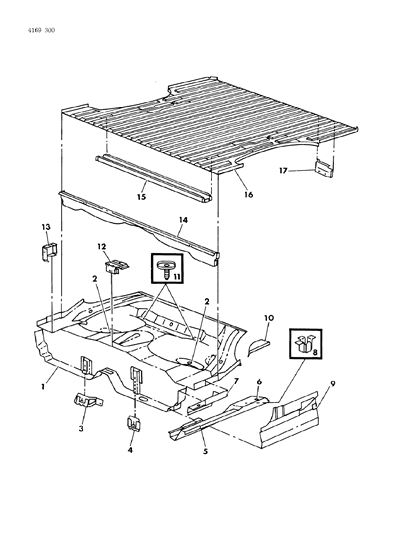

- 1.BODY - SHEET METAL EXCEPT DOORS FLOOR PAN REAR - M,Z 24,44

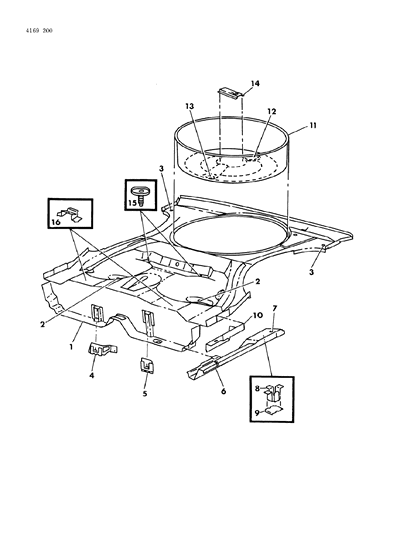

- 2.BODY - SHEET METAL EXCEPT DOORS FLOOR PAN REAR - M,Z 28
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
4314876PAN, Rear Floor- PAN, Rear Floor
- Fitting Vehicle Options: 28
1
4314878PAN, Rear Floor- Fitting Vehicle Options: 44
1
4337416PAN, Rear Floor- PAN, Rear Floor
- Fitting Vehicle Options: 24
2
5200474PLUG, .838" Dia./21.3 mm
3
5218306
PLATE and NUT, Fuel Tank Strap & Exhaust Hanger
4
5218306
PLATE and NUT, Fuel Tank Strap & Exhaust Hanger
4
5200266
PLATE, Fuel Tank Strap Hanger
5
5200162EXTENSION, Lower Side Sill, Rear, Right- EXTENSION, Lower Side Sill, Rear, Right
5
5200163EXTENSION, Lower Side Sill, Rear, Right- EXTENSION, Lower Side Sill, Rear, Left
5
5200266
PLATE, Fuel Tank Strap Hanger
6
5200162EXTENSION, Lower Side Sill, Rear, Right- EXTENSION, Lower Side Sill, Rear, Right
6
5200163EXTENSION, Lower Side Sill, Rear, Right- EXTENSION, Lower Side Sill, Rear, Left
7
5200034PANEL, Inner Sill, Rear, Right- PANEL, Inner Sill, Rear, Right
7
5200035PANEL, Inner Sill, Rear, Right- PANEL, Inner Sill, Rear, Left
8
5200312BRACKET, Jacking Rear
8
5200312BRACKET, Jacking, Rear
9
4206678EXTENSION, Cargo Floor Front, Side, Right- EXTENSION, Cargo Floor Front, Side, Right
9
4206679EXTENSION, Cargo Floor Front, Side, Right- EXTENSION, Cargo Floor Front, Side, Left
10
5200034PANEL, Inner Sill, Rear, Right- PANEL, Inner Sill, Rear, Right
10
5200035PANEL, Inner Sill, Rear, Right- PANEL, Inner Sill, Rear, Left
11
4337584
PANEL, Tire Stowage
11
4314256REINFORCEMENT and BOLT, Fuel Tank Strap Rear
12
4206774
SUPPORT, Stowage Tray, Center
13
5200456
PLUG, 2.75" Dia./70 mm
13
4206772SUPPORT, Stowage Tray, Outer, Right- SUPPORT, Stowage Tray, Outer, Right
13
4206773SUPPORT, Stowage Tray, Outer, Right- SUPPORT, Stowage Tray, Outer, Left
14
3791040
BRACKET, Tire Stowage
15
4314256REINFORCEMENT and BOLT, Fuel Tank Strap Rear
16
4206579
PANEL, Cargo Floor
16
5200388RETAINER, Rear Seat Cushion
17
4206732
BRACKET, Muffler Hanger
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1984
Dodge Charger parts. Parts like Floor Pan Rear are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.6L, 4 Cyl 2.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
