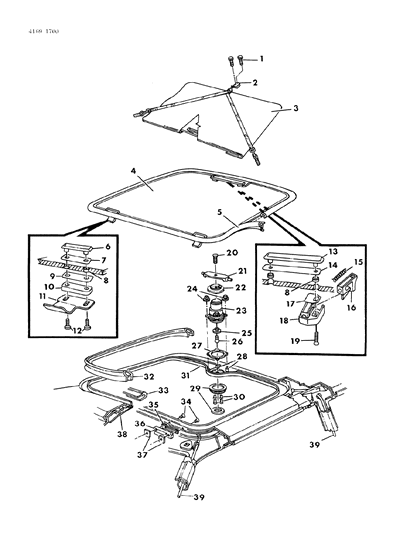

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS SUN ROOF - M,Z 24
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
2
5216587BRACKET, Stowage Bag D-Ring Retainer
3
E858BX7
BAG, Stowage (Black)
4
5207474PANEL, Glass w/Frame (Bonded)- PIN, Glass Frame Connecting
- Require Quantity: 2
4
5232068PANEL, Glass w/Frame (Bonded)- PANEL, Glass w/Frame (Bonded)
5
5232046
SEAL, Sun Roof (Secondary)
14
5207368
GASKET, Latch T/Plate
22
4341037
GASKET and RETAINER, Adjuster
23
4341035
ADJUSTER, Latch (Includes Items #20-23 & 25,26)
24
6050140NUT, Up To 4/2/84- NUT, Up To 4/2/84
- Require Quantity: 4
24
25
5232094
WASHER, Latch Striker Stop
27
5232052
GASKET, Latch Adjuster to Trough
29
H808BX9
HANDLE, Latch Adjuster (Complete)
31
4341325
PANEL and TROUGH, (Includes Item #28)
32
5207319
SEAL, Sun Roof (Primary)
33
H611BA2WELT, Headliner Opening, Silver- WELT, Headliner Opening, Silver
33
H611BB5WELT, Headliner Opening, Silver 33
H611BL3WELT, Headliner Opening, Silver 33
H611BM6WELT, Headliner Opening, Silver 33
H611CS8WELT, Headliner Opening, Silver 33
H611CT8WELT, Headliner Opening, Silver
35
5232050GASKET, Hinge Receiver, Right- GASKET, Hinge Receiver, Right
35
5232051GASKET, Hinge Receiver, Right- GASKET, Hinge Receiver, Left
36
5207374RECEIVER, Hinge (Includes Items #35 & 37), Right- RECEIVER, Hinge (Includes Items #35 & 37), Right
36
5207375RECEIVER, Hinge (Includes Items #35 & 37), Right- RECEIVER, Hinge (Includes Items #35 & 37), Left
37
5207378NUT PLATE, Hinge Receiver
39
4106872HOSE, Drain (3/8 I.D. x 50' Roll Stock) NS1- HOUSING and LATCH, Includes Items #15-19, Right
39
4106873HOSE, Drain (3/8 I.D. x 50' Roll Stock) NS1- HOUSING and LATCH, Includes Items #15-19, Left
39
4106874HOSE, Drain (3/8 I.D. x 50' Roll Stock) NS1- HINGE and T-PLATE, (Includes Items #6-12)
- Require Quantity: 2
