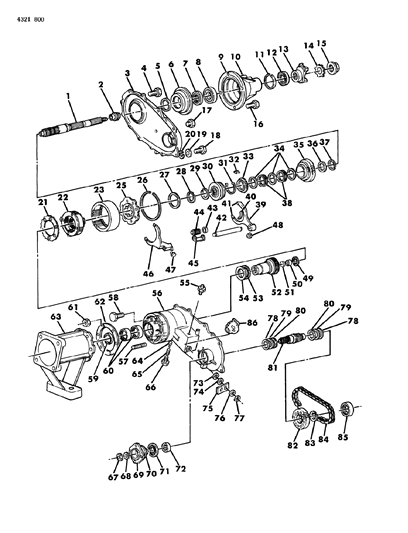

Diagram (1 of 1): TRANSMISSION, MANUAL CASE, TRANSFER N.P.G. MODEL 208, SYNCHRONIZED D5,6,7,8
1984 Dodge D150 Case, Transfer Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    4329329
    MAINSHAFT, 52-38-32 Teeth, 14.36" Long
  • 2
    4210606
    GEAR, Speedometer Drive
  • 3
    4167996
    CASE, Rear Half
  • 6
    4210602
    HOUSING, Oil Pump
  • 7
    3894957
    PUMP, Oil, 38 Inner Spline, 2-7/32" O.D. (Nylon)
  • 9
    4219093
    RETAINER, Rear Output Shaft Bearing
  • 10
    0118749
    CONNECTOR, Vent Tube 5/16 Flared
  • 11
    4210984
    RING, Bearing Retaining, 2-31/32" O.D.
  • 13
    3516495
    YOKE, Rear Output Shaft, 32 Spline
  • 20
    4210982
    DOWEL, Case Alignment, 1/2" O.D. x 5/8" Lg.
  • 21
    4167931
    PLATE, Low Range Lock, 37 Teeth
  • 22
    4329198
    PLANETARY ASSEMBLY, Complete
  • 23
    4219060
    GEAR, Annulus
  • 25
    4295115
    WEB and HUB ASSEMBLY
  • 27
    4219064
    WASHER, Case & Web Hub Thrust
  • 28
    3821372
    RING, Web & Hub Retaining, 3" O.D.
  • 30
    4329516
    SYNCHRONIZER ASSEMBLY
  • 33
    4329526
    RING, Synchro. Stop
  • 34
    4219088
    SPACER, Sprocket Drive Roller
    • Require Quantity: 3
  • 35
    4329527
    SPROCKET, Drive
  • 36
    4329330
    WASHER, Sprocket Thrust
  • 37
    4167987
    RING, Sprocket Retaining
  • 39
    4329518
    FORK, Mode Shift, w/Pads
  • 42
    4167965
    RAIL, Shift, 5/8" O.D. x 8-11/16" Long
  • 44
    4329559
    SPRING, Mode Shift Fork
  • 45
    4219075
    RETAINER, Mode Fork Pin And Spring
  • 46
    4219068
    FORK, Shift Range
  • 47
    4167968
    PIN, Range Shift Fork
  • 48
    4219072
    PIN, Mode Shift Fork
  • 49
    4269182
    BEARING, Mainshaft, Nylon Flat w/o Rollers, Thrust
  • 50
    4269187
    BEARING, Drive Gear Pilot, Needle Roller, 1-1/2" O.D.
  • 51
    4167938
    PLUG, Drive Gear Cup
  • 52
    4167935
    GEAR, w/Pilot Bearing, Drive, 23 Spl., 46 Teeth
  • 53
    4167934
    BEARING, Input Gear, Thrust, 1-31/32" I.D.
  • 54
    4167933
    WASHER, Input Gear Thrust Bearing
  • 55
    3515027
    GASKET, Four Wheel Drive Indicator Light Switch
  • 55
    4168000
    SWITCH, Four Wheel Drive Indicator Light, 1984
    • SWITCH, Four Wheel Drive Indicator Light, 1984
  • 55
    4169633
    SWITCH, Four Wheel Drive Indicator Light, 1984
    • SWITCH, Transfer Case Vacuum, 1985
  • 56
    4167927
    CASE, Transfer Case Front Half
  • 58
    4167932
    BOLT, Lock Plate
    • Require Quantity: 6
  • 63
    4130675
    ADAPTER, Trans. To Transfer Case, w/A727 Trans.
    • ADAPTER, Trans. To Transfer Case, w/A727 Trans.
  • 63
    4210977
    ADAPTER, Trans. To Transfer Case, w/A727 Trans.
    • w/435 Trans.
  • 63
    Dodge 6030849
    6030849
    ADAPTER, Trans. To Transfer Case, w/A727 Trans.
    • SCREW, Adapter to T/Case, w/A727 Trans.
    • Require Quantity: 6
  • 64
    4213356
    PLUNGER, Poppet Spring
  • 65
    1798192
    SPRING, Shift Sector Poppet
  • 66
    4213355
    SCREW, Case Poppet
  • 69
    4167912
    FLANGE, Front Output Shaft
  • 70
    4210611
    SLINGER, Front Output Shaft Flange
  • 72
    4269186
    BEARING, Front Output Shaft, Frt. Needle Roller 2-1/8" O.D.
  • 75
    4210609
    LEVER, Mode Shift Operating
  • 76
    0120394
    WASHER, Operating Lever Locknut
  • 79
    4167993
    BEARING, Front Output Shaft Thrust, 1-3/4" I.D., 2-1/2" O.D.
    • Require Quantity: 2
  • 80
    4167994
    WASHER, Front Output Shaft Thrust, 1/32" Thick
    • Require Quantity: 2
  • 81
    4167730
    SHAFT, Front Output, 6-15/16" Long (32-61T)
  • 82
    4167728
    SPROCKET, Driven, 61-34 Ext. Teeth
  • 86
    4219066
    SHAFT, Sector, Case Shift
  • 4329515
    TRANSFER CASE ASSEMBLY, Synchronized, SERVICED, 1984
  • 4348250
    TRANSFER CASE ASSEMBLY, Synchronized, w/Frt. Axle Disconnect, SERVICED, 1985
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1984 Dodge D150 parts. Parts like Case, Transfer are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.7L, 8 Cyl 5.2L, 8 Cyl 5.9L. Transmission: 4-Speed Manual Transmission, Automatic Transmission.
