2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

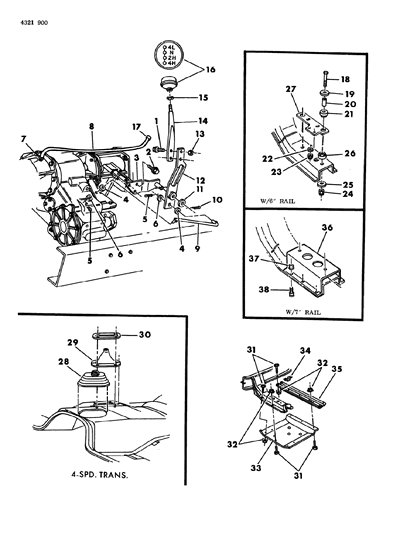

- 1.TRANSMISSION, MANUAL CONTROLS AND MOUNTING, TRANSFER CASE N.P.G. MODEL 205 D7

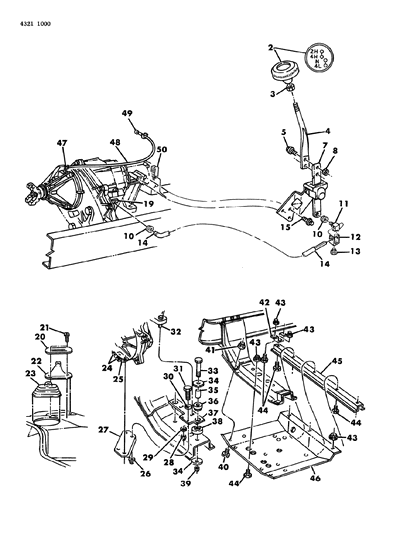

- 2.TRANSMISSION, MANUAL CONTROLS AND MOUNTING, TRANSFER CASE N.P.G. MODEL 208 D5,6,7,8
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
0180124BOLT, Lever Mtg. 3/8-16 x 1-1/4"
2
4364777
KNOB PACKAGE, Shift Lever
2
0180122SCREW, Lever Brkt. Mtg. 3/8-16 x 1-1/8"
3
4188434
BRACKET, Shift Lever Mtg.
4
4340189
LEVER, Upper Shift, 1984
5
0180124BOLT, Lever Mtg. 3/8-16 x 1-1/4"
6
7
0118749
CONNECTOR, Vent Tube 5/16" Flared
7
4269841SHIFTER ASSEMBLY, Gated Shift Control, 1984- SHIFTER ASSEMBLY, Gated Shift Control, 1984
7
4340188SHIFTER ASSEMBLY, Gated Shift Control, 1984
8
8
1843253TUBING, Breather Vent 5/16" O.D. (25 Ft. Roll)- TUBING, Breather Vent 5/16" O.D. (25 Ft. Roll)
8
1941667TUBING, Breather Vent 5/16" O.D. (25 Ft. Roll) 8
4203316TUBING, Breather Vent 5/16" O.D. (25 Ft. Roll)- HOSE, Breather Vent 5/16" I.D. (50 Ft. Roll)
9
4188436
ROD, Shift Control
11
930006
SPACER, Shift Lever
12
2204274
CLAMP, Shift Lever Rod Swivel
12
4112970LEVER, w/Bushing, Shift Control, Lower- LEVER, w/Bushing, Shift Control, Lower
12
926677LEVER, w/Bushing, Shift Control, Lower
13
181082
SCREW, Swivel Clamp 5/16-18 x 1/2"
14
4210917
LEVER, Upper Shift
15
15
0180122SCREW, Lever Brkt. Mtg. 3/8-16 x 1-1/8"
17
18
271885BOLT, 5/8-11 x 3-1/4"
19
4210609
LEVER, Mode Shift Operating
20
4082056
RETAINER, Boot Hold Down, Bright Finish
22
4113509BOOT, Transfer Case Shift Control Lever, Vinyl- BOOT, Transfer Case Shift Control Lever, Vinyl
22
4269843BOOT, Transfer Case Shift Control Lever, Vinyl- BOOT, Transfer Case Shifter Assy.
24
4213663BOLT, Strut Mtg. Brkt.
25
4213376
BRACKET, T/Case Mtg.
6025020NUT, w/Washer, 3/8-16
27
4213374
PLATE, w/Tab Insulator Mtg.
27
4213375
STRUT, T/Case To Insulator Mtg. Plate
29
4113509
BOOT, Transfer Case Shift Control Lever, Vinyl
30
4082056
RETAINER, Boot Hold Down, Bright Finish
31
0181114BOLT, 3/8-16 x 1-1/4"
31
181138BOLT, 7/16-14 x 1-1/8"
32
33
271885BOLT, 5/8-11 x 3-1/4"
33
4213116
PLATE, Transfer Case Skid
34
4213123SUPPORT, C/Membr. Skid Plate
35
4213124
CROSSMEMBER, Transfer Case Skid Plate
36
3821225
ADAPTER, Crossmember w/7" Rail
37
4213374
PLATE, w/Tab Insulator Mtg.
41
42
4213123SUPPORT, C/Membr. Skid Plate
43
45
4213124
CROSSMEMBER, Transfer Case Skid Plate
46
4213116
PLATE, Transfer Case Skid
47
0118749
CONNECTOR, Breather Vent Tube 5/16" Flared
48
1843253TUBING, Breather Vent 5/16" O.D. (25 Ft. Roll)- TUBING, Breather Vent 5/16" O.D. (25 Ft. Roll)
48
4203316TUBING, Breather Vent 5/16" O.D. (25 Ft. Roll)- HOSE, Breather Vent 5/16" I.D. (50 Ft. Roll)
49
1941667VENT, Cap, Hose End 49
50
6100129CLIP, Vent Hose Holding (Not Serviced)- WASHER, Strut Mtg. Brkt. Bolt
- Require Quantity: 2
4377248LABEL, T/Case Four Wheel Drive Shift Procedure, ENGLISH
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1984
Dodge D150 parts. Parts like Controls & Mounting, Transfer Case are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.7L, 8 Cyl 5.2L, 8 Cyl 5.9L. Transmission: 4-Speed Manual Transmission, Automatic Transmission.
