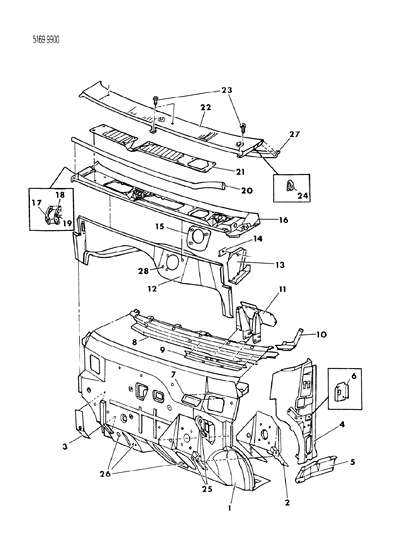

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS COWL AND DASH PANEL H,K

1985 Dodge Caravan Cowl & Dash Panel Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4337360
PANEL, Dash

2
4337329
REINFORCEMENT, Dash Panel Accelerator & Brake Pedal

3
4337276
REINFORCEMENT, Dash Panel to Front Side Rail Upper, Right

4
4278968
PANEL, Cowl Side, Right
PANEL, Cowl Side, Right
4
4278969
PANEL, Cowl Side, Right
- PANEL, Cowl Side, Left

5
4278046
EXTENSION, Body Side Sill Inner Panel, Right
EXTENSION, Body Side Sill Inner Panel, Right
5
4278047
EXTENSION, Body Side Sill Inner Panel, Right
- EXTENSION, Body Side Sill Inner Panel, Left

6
4278733
REINFORCEMENT, Cowl Side Park Brake Mounting Bracket

7
4278415
BRACKET, Cowl Plenum Water Deflector, Left

8
4278051
REINFORCEMENT, Dash Panel Belt

9
4278675
SUPPORT, Dash Panel Belt Reinforcement Steering Column Mounting

10
4278386
REINFORCEMENT, Dash Panel Belt to Windshield Frame Inner, Right
REINFORCEMENT, Dash Panel Belt to Windshield Frame Inner, Right
10
4278387
REINFORCEMENT, Dash Panel Belt to Windshield Frame Inner, Right
- REINFORCEMENT, Dash Panel Belt to Windshield Frame Inner, Left

11
4314210
BRACKET, Dash Panel Steering Column Mounting Support

12
4337470
PANEL, Cowl Plenum Lower
Up To 10-24-84
12
4371697
PANEL, Cowl Plenum Lower
- After 10-24-84

13
4278148
PANEL, Cowl Plenum Side Inner, Right
PANEL, Cowl Plenum Side Inner, Right
13
4278149
PANEL, Cowl Plenum Side Inner, Right
- PANEL, Cowl Plenum Side Inner, Left

14
4341381
REINFORCEMENT, w/Pin Cowl Plenum Side Inner Hood Hinge
- Require Quantity: 2

15
4337478
REINFORCEMENT, Cowl Lower Plenum Windshield Wiper Motor
Up To 3-15-85
15
4371698
REINFORCEMENT, Cowl Lower Plenum Windshield Wiper Motor
- After 3-15-85

16
4278056
PANEL, Cowl Plenum Upper

18
4314806
RETAINER, w/Fastener Cowl Top to Body Side Aperture Panel Seal (Includes Item #19), Right
RETAINER, w/Fastener Cowl Top to Body Side Aperture Panel Seal (Includes Item #19), Right
18
4314807
RETAINER, w/Fastener Cowl Top to Body Side Aperture Panel Seal (Includes Item #19), Right
- RETAINER, w/Fastener Cowl Top to Body Side Aperture Panel Seal (Includes Item #19), Left

19
6003808
FASTENER
- Require Quantity: 2

20
4278411
SEAL, Cowl Plenum to Hood

21
4314059
SCREEN, w/Seal Cowl Plenum Upper

22
4278057
PANEL, Cowl Plenum Grille

24
6032281
CLIP, Cowl Plenum Grille Mounting
- Require Quantity: 2

25
3445939
PLUG, .906" Dia./23 mm

26
5200456
PLUG, 2.75" Dia./70 mm
- Require Quantity: 2

28

6030441
RETAINER, Cowl Plenum Lower Windshield Wiper Motor Mounting P/Nut
$7.40 $4.99
1
Add To Cart

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1985 Dodge Caravan parts. Parts like Cowl & Dash Panel are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.6L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
