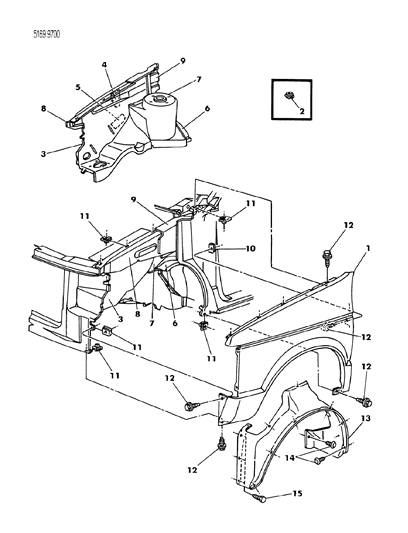

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS FENDER H,K
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
4296930PANEL, Fender, Right 1
4296931PANEL, Fender, Right
2
4222739
PLUG, Fender Antenna Hole
3
4341551PANEL and NUT, Front Fender Shield, Right- PANEL, Front Fender Shield, Left
3
4341552PANEL and NUT, Front Fender Shield, Right- PANEL and NUT, Front Fender Shield, Right
4
4341023
BRACKET, Jack Stowage Mount Reinforcement
5
4220849
PLATE, Horn Mounting
6
4296812EXTENSION, Iso-Strut Tower to Dash Panel, Right- EXTENSION, Iso-Strut Tower to Dash Panel, Right
6
4296813EXTENSION, Iso-Strut Tower to Dash Panel, Right- EXTENSION, Iso-Strut Tower to Dash Panel, Left
7
4296118TOWER, Iso-Strut Mounting, Right- TOWER, Iso-Strut Mounting, Right
7
4296119TOWER, Iso-Strut Mounting, Right- TOWER, Iso-Strut Mounting, Left
8
4270074BEAM, Front Fender Shield, Right- BEAM, Front Fender Shield, Right
8
4270075BEAM, Front Fender Shield, Right- BEAM, Front Fender Shield, Left
9
4278052EXTENSION, Body Side Aperture to Front Fender Shield Beam 9
4278053EXTENSION, Body Side Aperture to Front Fender Shield Beam 9
4386162EXTENSION, Body Side Aperture to Front Fender Shield Beam 9
4386163EXTENSION, Body Side Aperture to Front Fender Shield Beam
10
4314093BRACKET and NUT, Body Side Aperture to Fender Center Mounting
13
4296218SHIELD, Fender Wheelhouse Splash, Right- SHIELD, Fender Wheelhouse Splash, Right
13
4296219SHIELD, Fender Wheelhouse Splash, Right- SHIELD, Fender Wheelhouse Splash, Left
