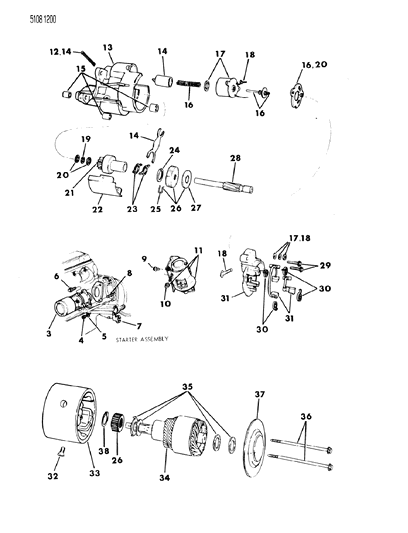

Diagram (1 of 1): ELECTRICAL STARTER 318 ENGINE CHRYSLER NO. 4145360
1985 Dodge Diplomat Starter Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 3
    4145360
    STARTER
    • STARTER
  • 3
    R0171375
    STARTER
    • REMAN, Door, REMAN ENGINES - Mopar Remanufactured Part
  • 4
    0272235
    NUT
  • 6
    6023899
    SCREW and WASHER
  • 8
    2095875
    STUD, Mtg. 7/16 x 2.00
  • 10
    Dodge 6025001
    6025001
    NUT and WASHER
  • 11
    4140724
    SHIELD STARTER
  • 12
    2095133
    PIN, Shifting Fork Pivot
  • 13
    3755261
    HOUSING and BEARING, Gear
  • 14
    4057940
    CORE and SHIFTING FORK PACKAGE
  • 15
    3874817
    BEARING, Pinion Housing
    • BEARING, Pinion Housing
    • Require Quantity: 2
  • 15
    3874818
    BEARING, Pinion Housing
    • Bearing, Gear Housing
  • 16
    2932814
    CONTACT and SPRING PACKAGE
    • Require Quantity: 2
  • 17
    2875558
    SOLENOID PACKAGE
    • Seal, Solenoid
  • 17
    3837337
    SOLENOID PACKAGE
    • SOLENOID PACKAGE
  • 18
    3579193
    STUD PACKAGE
  • 19
    6022006
    RING, Pinion Shaft Ret.
  • 20
    2275558
    THRUST WASHER and RETAINER RING PACKAGE
  • 21
    4145978
    CLUTCH ASSEMBLY
    • CLUTCH ASSEMBLY
  • 21
    4240449
    CLUTCH ASSEMBLY
    • CLUTCH and SHIFTING FORK PACKAGE
  • 21
    R0231020
    CLUTCH ASSEMBLY
    • REMAN, Door, REMAN ENGINES - Mopar Remanufactured Part
  • 22
    2095116
    COVER, Gear Housing
  • 23
    2275556
    ACTUATOR, Starter Clutch
  • 24
    2095130
    RING, Clutch Actuator Ret.
  • 25
    2095117
    SNAP RING, Pinion Shaft Gear Ret.
  • 26
    4026347
    GEAR and RING PACKAGE, w/4145360 Starter
    • GEAR, Starter Repair Pkg., Armature w/4145360 Starter
  • 26
    4106092
    GEAR and RING PACKAGE, w/4145360 Starter
    • GEAR and RING PACKAGE, w/4145360 Starter
  • 27
    3755256
    WASHER, Pinion Shaft Gear w/4145360 Starter
  • 28
    4091914
    SHAFT, Pinion
  • 29
    0153468
    SCREW and WASHER
    • Require Quantity: 2
  • 30
    2084666
    SPRING PACKAGE
  • 31
    3874345
    BRUSH HOLDER
  • 32
    6030160
    SCREW, 3/8-16.66
    • Require Quantity: 4
  • 33
    4111959
    FRAME and FIELD, 4145360 Starter
  • 34
    3837334
    ARMATURE, w/4145360 Starter
  • 35
    3837340
    THRUST WASHER PACKAGE
  • 36
    3755231
    SCREW, 1/4-20x5.42 w/4145360 Starter
    • Require Quantity: 2
  • 37
    2095076
    HEAD, End
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1985 Dodge Diplomat parts. Parts like Starter are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: Automatic Transmission.
