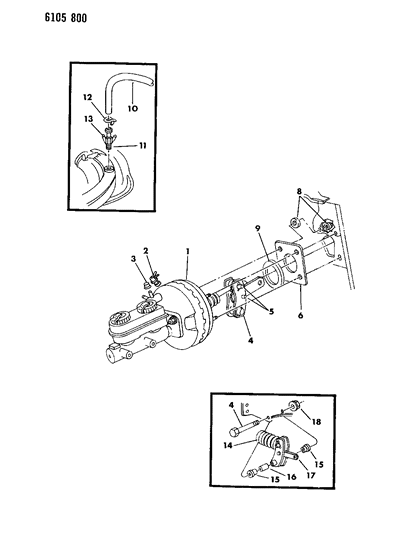

Diagram (1 of 1): BRAKES, SERVICE BOOSTER, POWER BRAKE B,G,F (M BODY)

1986 Chrysler Fifth Avenue Booster, Power Brake Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
3880348
BOOSTER

2
3420973
VALVE and GROMMET PACKAGE

3
2944127
CAP

4
6028165
BOLT

6
3699447
GASKET

8
118614
NUT

9
3766046
RING, Boot

10
3879277
HOSE, Lgh. 20"
.34 I.D. (Flexible) 50 ft. Roll
Replaced By: HWV01132AA
$40.00 $27.06
1
Add To Cart
10
3837042
HOSE, Lgh. 20"
- .215 I.D. Neoprene 50 ft. Roll
10
3880431
HOSE, Lgh. 20"
- HOSE, Lgh. 20"
10
4026511
HOSE, Lgh. 20"
- .145 I.D. 50 Ft. Roll
10
4095681
HOSE, Lgh. 20"
- .025 I.D. 50 Ft. Roll
10
4203421
HOSE, Lgh. 20"
- .350 I.D. 50 Ft. Roll
10
4267340
HOSE, Lgh. 20"
- .341 I.D. Hypalon 50 ft. Roll

11
4026117
CONNECTOR, 4-Way, w/Caps
7-Way, w/Caps
11
4210580
CONNECTOR, 4-Way, w/Caps
- CONNECTOR, 4-Way, w/Caps

12
2448761
CLAMP, Hose Mounting
- Replaced By: 33000784
$4.95 $3.28
1
Add To Cart

13
3580172
CAP, Conn. Aux Tube, 3/16" I.D.
1/4" I.D.
Replaced By: 4663032
$16.05 $11.03
1
Add To Cart
13
3580171
CAP, Conn. Aux Tube, 3/16" I.D.
- CAP, Conn. Aux Tube, 3/16" I.D.
13
3580170
CAP, Conn. Aux Tube, 3/16" I.D.
- 1/8" I.D.

14
3766073
BOOT, Plunger to Push Rod, Bendix

15
2467770
BUSHING, Brake Pedal
- Require Quantity: 2
- Package Quantity: 1

16
2534227
SLEEVE, Brake Pedal

17
3766167
HUB, Lever (Serv. w/Booster)

18
6023035
NUT

4294036
CLIP, Push Rod Pin (not shown)
- Replaced By: 4581512AA
$2.35 $1.72
1
Add To Cart

3766429
FILTER, Vac. Hose (Not Shown)

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Chrysler Fifth Avenue parts. Parts like Booster, Power Brake are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: Automatic Transmission.
