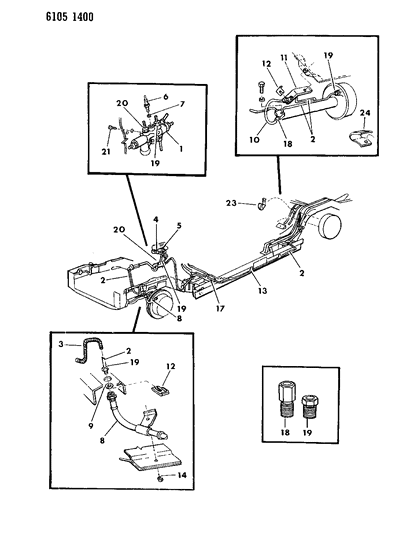

Diagram (1 of 1): BRAKES, SERVICE LINES AND HOSES, BRAKES B,G,F (M BODY)
1986 Chrysler Fifth Avenue Lines & Hoses, Brake Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 2
    Chrysler 1843251
    Chrysler 1843251
    Chrysler 1843251
    Chrysler 1843251
    Chrysler 1843251
    1843251
    TUBING, Brake, 25 ft. Roll, 3/16" O.D.
    • TUBING, Brake, 25 ft. Roll, 3/16" O.D.
    $72.68 $57.12
    1
    Add To Cart
  • 2
    1843252
    TUBING, Brake, 25 ft. Roll, 3/16" O.D.
    • 1/4" O.D.
  • 2
    1843253
    TUBING, Brake, 25 ft. Roll, 3/16" O.D.
    • 5/16" O.D.
  • 2
    1843254
    TUBING, Brake, 25 ft. Roll, 3/16" O.D.
    • 3/8" O.D.
  • 3 Chrysler 3879283
    3879283
    COVER, 25 ft. Rolls, 3/16" O.D. Tubing
    • 3/16" O.D. Tubing, 11-1/2 Coils per inch (9-1/4 Coils per inch)
      COVER, 25 ft. Rolls, 3/16" O.D. Tubing
  • 3
    3879284
    COVER, 25 ft. Rolls, 3/16" O.D. Tubing
    • 1/4" O.D. Tubing (9-1/4 Coils per inch)
  • 3
    4026140
    COVER, 25 ft. Rolls, 3/16" O.D. Tubing
    • 3/8" O.D. Tubing (9-1/4 Coils per inch)
  • 4
    6026888
    NUT, Secondary Tube
    • Require Quantity: 2
  • 5
    6026887
    NUT, Primary Tube
    • Require Quantity: 2
  • 6
    3620790
    SWITCH, Mtrg. Prpg.
  • 7
    2881984
    O-RING, Sw. Mtrg. Prpg.
  • 8
    4240508
    HOSE, Front Whl. Brake (Flexible), Right
    • HOSE, Front Whl. Brake (Flexible), Right
  • 8
    4240509
    HOSE, Front Whl. Brake (Flexible), Right
    • HOSE, Front Whl. Brake (Flexible), Left
  • 10
    4126502
    HOSE and TEE, Rear Axle
  • 11
    4126503
    BRACKET, Brake Tube Rear Hose
  • 12
    Chrysler 2208893
    Chrysler 2208893
    Chrysler 2208893
    Chrysler 2208893
    2208893
    LOCK
    • Require Quantity: 4
    • Package Quantity: 1
    $9.10 $6.62
    1
    Add To Cart
  • 13
    2207933
    CLIP
  • 14
    6025004
    NUT
  • 17
    2123341
    CLIP
  • 18
    6029113
    NUT, 3/8-24 Thd. Long Hex
  • 20
    6026436
    NUT, Primary, 3/16" O.D.
  • 21
    6030607
    LOCK, Nut
  • 24
    3880807
    GUARD, Axle Brk. Tube Tee
  • 3766357
    SHIELD, Brake Valve to Rear Hose (Not Shown)
  • 4126794
    SHIELD, Frt. Brake Lt. Hose Heat (Not Shown)
