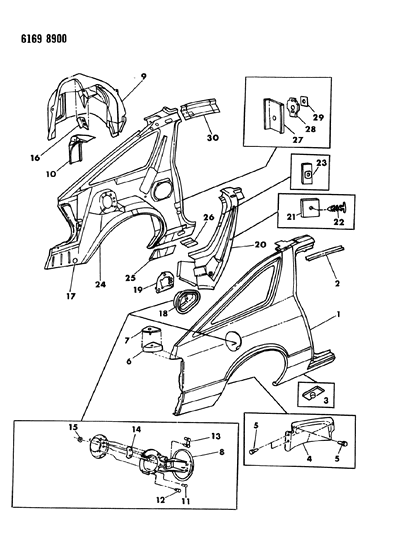

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS BODY REAR QUARTER G BODY 24

1986 Chrysler Laser Body Rear Quarter Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4371624
PANEL, Body Side Aperture, Rear, Right
PANEL, Body Side Aperture, Rear, Right
1
4371625
PANEL, Body Side Aperture, Rear, Right
- PANEL, Body Side Aperture, Rear, Left

2
4206824
RETAINER, Body Side Aperture Secondary Seal, Right
RETAINER, Body Side Aperture Secondary Seal, Right
2
4206825
RETAINER, Body Side Aperture Secondary Seal, Right
- RETAINER, Body Side Aperture Secondary Seal, Left

3
4314277
PLATE, Body Side Aperture Jack Locator
- Require Quantity: 2

4
4314104
SHIELD, Rear Wheelhouse Inner Panel Appearance, Right
SHIELD, Rear Wheelhouse Inner Panel Appearance, Right
4
4314105
SHIELD, Rear Wheelhouse Inner Panel Appearance, Right
- SHIELD, Rear Wheelhouse Inner Panel Appearance, Left

6
4206974
EXTENSION, Liftgate Opening Lower Panel, Upper, Right
EXTENSION, Liftgate Opening Lower Panel, Upper, Right
6
4206975
EXTENSION, Liftgate Opening Lower Panel, Upper, Right
- EXTENSION, Liftgate Opening Lower Panel, Upper, Left

7
3759944
SEAL, Liftgate Opening Lower Panel Upper Extension
RETAINER
Require Quantity: 2
Package Quantity: 1
7
4314121
SEAL, Liftgate Opening Lower Panel Upper Extension
- SEAL, Liftgate Opening Lower Panel Upper Extension
- Require Quantity: 2

8
4364448
DOOR and SUPPORT, Body Side Aperture Fuel Filler Door

9
4206832
PANEL, Rear Wheelhouse Inner, Right
PANEL, Rear Wheelhouse Inner, Right
9
4206833
PANEL, Rear Wheelhouse Inner, Right
- PANEL, Rear Wheelhouse Inner, Left

10
4134686
REINFORCEMENT, Rear Wheelhouse Inner Panel Shock Absorber Mounting, Right
REINFORCEMENT, Rear Wheelhouse Inner Panel Shock Absorber Mounting, Right
10
4134687
REINFORCEMENT, Rear Wheelhouse Inner Panel Shock Absorber Mounting, Right
- REINFORCEMENT, Rear Wheelhouse Inner Panel Shock Absorber Mounting, Left

11
6032280
SCREW, #10-16 x 1.00" (Not Serviced)

12
4015682
BUMPER
- Require Quantity: 2
- Package Quantity: 1

13
4337147
PLATE, Fuel Filler Door Mounting

14
4314601
SHIM

15
6032641
NUT
- Require Quantity: 2

16
4278630
REINFORCEMENT, Wheelhouse Rear Seat Back Latch
- Require Quantity: 2

17
4073485
PLUG, 1.50" Dia./38 mm
- Require Quantity: 2

18
4337219
REINFORCEMENT, Body Side Aperture Fuel Filler Door Opening

19
4337398
GASKET, Inner To Fuel Filler Door Opening Reinforcement, Adhesive

20
4296900
SUPPORT, Quarter Inner & Wheelhouse Outer To Aperture, Right
SUPPORT, Quarter Inner & Wheelhouse Outer To Aperture, Right
20
4296901
SUPPORT, Quarter Inner & Wheelhouse Outer To Aperture, Right
- SUPPORT, Quarter Inner & Wheelhouse Outer To Aperture, Left

22
5208743
RETAINER
- Require Quantity: 2

23
4314326
REINFORCEMENT, Quarter Inner Panel Upper Shoulder Harness
- Require Quantity: 2

24
4341914
PANEL, Quarter Inner & Wheelhouse Outer ( Up To 6-2-86), Right
PANEL, Quarter Inner & Wheelhouse Outer ( Up To 6-2-86), Right
Fitting Vehicle Options: 24
24
4341915
PANEL, Quarter Inner & Wheelhouse Outer ( Up To 6-2-86), Right
- PANEL, Quarter Inner & Wheelhouse Outer ( Up To 6-2-86), Left
- Fitting Vehicle Options: 24
24
4386264
PANEL, Quarter Inner & Wheelhouse Outer ( Up To 6-2-86), Right
- After 6-2-86, Right
24
4386265
PANEL, Quarter Inner & Wheelhouse Outer ( Up To 6-2-86), Right
- After 6-2-86, Left

25
4278596
REINFORCEMENT, Quarter Inner Panel Sill Jacking, Right
REINFORCEMENT, Quarter Inner Panel Sill Jacking, Right
25
4278597
REINFORCEMENT, Quarter Inner Panel Sill Jacking, Right
- REINFORCEMENT, Quarter Inner Panel Sill Jacking, Left

26
4278573
REINFORCEMENT, Aperture To Quarter Inner & Wheelhouse Outer Panel
- Require Quantity: 2

27
4325188
REINFORCEMENT, w/Retainer Aperture Door Lock Striker Includes Item 28
- Require Quantity: 2

28
4134972
RETAINER, Aperture Door Lock Striker T/Plate
- Require Quantity: 2

29
4314743
T-PLATE, Aperture Door Lock Striker
- Require Quantity: 2

30
4341758
RAIL, Roof Side Inner, Right
RAIL, Roof Side Inner, Right
30
4341759
RAIL, Roof Side Inner, Right
- RAIL, Roof Side Inner, Left

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Chrysler Laser parts. Parts like Body Rear Quarter are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
