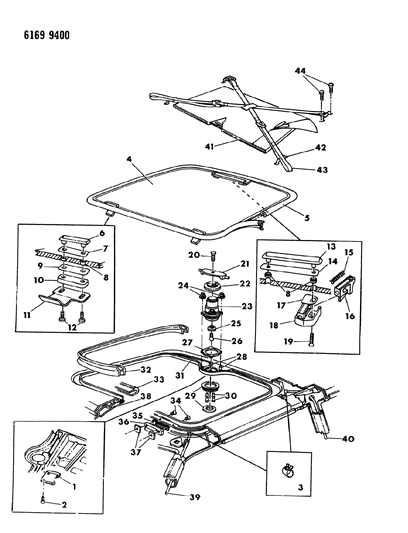

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS SUN ROOF G BODY 24

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4278794
SUPPORT, Sun Roof Opening Drain Trough

2
9421073
SCREW
- Require Quantity: 4

3
2448761
CLAMP, Drain Hose To Trough
- Require Quantity: 4
- Package Quantity: 1
- Replaced By: 33000784
$4.95 $3.28
1
Add To Cart

4
4296034
PANEL, Sun Roof Glass w/Frame (Bonded)
PANEL, Sun Roof Glass w/Frame (Bonded)
4
5207474
PANEL, Sun Roof Glass w/Frame (Bonded)
- PIN, Glass Frame Connecting
- Require Quantity: 2

5
4172849
SEAL, Sun Roof (Secondary)

6-12
4106874
HINGE and T-PLATE, Sun Roof Includes Items 6-12
- Require Quantity: 2

13
5207322
T-PLATE, Latch

14
5207368
GASKET, Latch T/Plate

15
4106872
HOUSING and LATCH, Sun Roof Includes Items 15-19, Right
HOUSING and LATCH, Sun Roof Includes Items 15-19, Right
15
4106873
HOUSING and LATCH, Sun Roof Includes Items 15-19, Right
- HOUSING and LATCH, Sun Roof Includes Items 15-19, Left

21
5207327
STRIKER, Latch

22
4341037
GASKET and RETAINER

23
4341035
ADJUSTER, Latch (Includes Items #20-23 & 25,26)

24
6501140
NUT
- Require Quantity: 4
- Package Quantity: 1
- Replaced By: 6100515
$7.55 $6.70
1
Add To Cart

25
5232094
WASHER, Latch Striker Stop

27
5232052
GASKET, Latch Adjuster To Trough

29
H808BX9
HANDLE, Tilting Roof Pnl. Riser Control
Black
29
H808CA3
HANDLE, Tilting Roof Pnl. Riser Control
- HANDLE, Tilting Roof Pnl. Riser Control
29
H808EE8
HANDLE, Tilting Roof Pnl. Riser Control
- Cordovan
29
H808EK1
HANDLE, Tilting Roof Pnl. Riser Control
- Light Almond

30
6031171
SCREW
- Require Quantity: 4

31
4341728
PANEL and TROUGH, Outer w/Sun Roof Includes Item 28

32
4278800
SEAL, Sun Roof (Primary)

33
H594EA3
WELT, Sun Roof Headliner Opening
Silver (After 7-23-86)
33
H594EE8
WELT, Sun Roof Headliner Opening
- Cordovan (After 7-23-86)
33
H594EK1
WELT, Sun Roof Headliner Opening
- Almond (After 7-23-86)
33
H594EX9
WELT, Sun Roof Headliner Opening
- Black (After 7-23-86)
33
H812CX9
WELT, Sun Roof Headliner Opening
- Black
33
H812EE8
WELT, Sun Roof Headliner Opening
- Cordovan
33
H812EK1
WELT, Sun Roof Headliner Opening
- Light Almond

34
6101127
SCREW
- Require Quantity: 4

35
5232050
GASKET, Hinge Receiver, Right
GASKET, Hinge Receiver, Right
35
5232051
GASKET, Hinge Receiver, Right
- GASKET, Hinge Receiver, Left

36
4172966
RECEIVER, Hinge (Includes Items #35 & 37), Right
RECEIVER, Hinge (Includes Items #35 & 37), Right
36
4172967
RECEIVER, Hinge (Includes Items #35 & 37), Right
- RECEIVER, Hinge (Includes Items #35 & 37), Left

37
5207378
PLATE, Hinge Receiver
- Require Quantity: 4

39
4278798
HOSE, Sun Roof Drain Trough, Front
- Require Quantity: 2

40
4278799
HOSE, Sun Roof Drain Trough, Rear
- Require Quantity: 2

41
H608CX7
BAG, Stowage (Black)

42
4248818
ANCHOR, Tie-Down Strap To Floor Pan
- Require Quantity: 4

43
H349CX9
STRAP, Sun Roof Stowage Tie-Down, Black

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Chrysler Laser parts. Parts like Sun Roof are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
