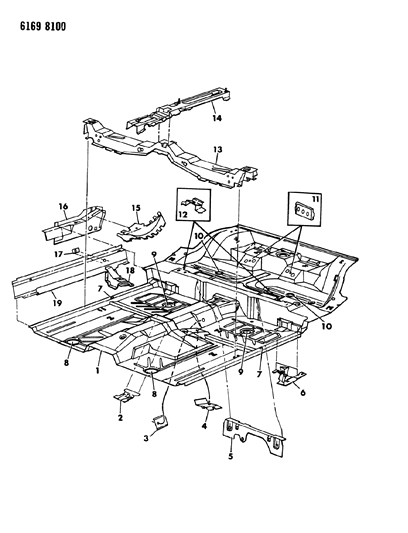

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS FLOOR PAN FRONT G BODY 24

1986 Chrysler Laser Floor Pan Front Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4337973
PAN, Front Floor

2
4278600
BRACKET, Front Floor Pan Park Brake Cable Guide

3
4314259
REINFORCEMENT, Front Floor Pan Front Seat Belt Inner Mounting
- Require Quantity: 2

4
4278498
REINFORCEMENT, Front Floor Pan Front Seat Rear Inner Mounting, Right
REINFORCEMENT, Front Floor Pan Front Seat Rear Inner Mounting, Right
4
4278499
REINFORCEMENT, Front Floor Pan Front Seat Rear Inner Mounting, Right
- REINFORCEMENT, Front Floor Pan Front Seat Rear Inner Mounting, Left

6
4314318
BRACKET, Front Floor Pan Lift Hoisting, Right
BRACKET, Front Floor Pan Lift Hoisting, Right
6
4314319
BRACKET, Front Floor Pan Lift Hoisting, Right
- BRACKET, Front Floor Pan Lift Hoisting, Left

7
2574792
PLUG, .75" Dia./19.5 mm
- Require Quantity: 2

8
5200456
PLUG, 2.75" Dia./70 mm
- Require Quantity: 2

9
2424864
PLUG, 1.75" Dia./44.5 mm
- Require Quantity: 2
- Package Quantity: 1
$14.00 $9.70
1
Add To Cart

10
4073475
PLUG, 1.50" Dia./38 mm
- Require Quantity: 2

11
4314260
REINFORCEMENT, Front Floor Pan Rear Seat & Seat Belt Inner Mounting
- Require Quantity: 2

12
5200388
RETAINER, Front Floor Pan Rear Seat Cushion
- Require Quantity: 2

13
4325654
CROSSMEMBER, Front Floor Pan Front Seat Track Mounting

14
4371514
BRACKET, Console Gear Selector To Floor Pan Mounting

15
4314866
REINFORCEMENT, Front Floor Pan Rear Seat Belt Outer Mounting, Right
REINFORCEMENT, Front Floor Pan Rear Seat Belt Outer Mounting, Right
15
4314867
REINFORCEMENT, Front Floor Pan Rear Seat Belt Outer Mounting, Right
- REINFORCEMENT, Front Floor Pan Rear Seat Belt Outer Mounting, Left

16
4371522
EXTENSION, Side Sill Inner Rear, Right
EXTENSION, Side Sill Inner Rear, Right
16
4371523
EXTENSION, Side Sill Inner Rear, Right
- EXTENSION, Side Sill Inner Rear, Left

17
4314326
REINFORCEMENT, Front Seat Belt Outer Mounting
- Require Quantity: 2

18
4206928
REINFORCEMENT, Front Floor Pan Front Seat Rear Outer Mounting, Right
REINFORCEMENT, Front Floor Pan Front Seat Rear Outer Mounting, Right
18
4206929
REINFORCEMENT, Front Floor Pan Front Seat Rear Outer Mounting, Right
- REINFORCEMENT, Front Floor Pan Front Seat Rear Outer Mounting, Left

19
4371114
PANEL, Body Side Sill Inner, Right
PANEL, Body Side Sill Inner, Right
19
4371115
PANEL, Body Side Sill Inner, Right
- PANEL, Body Side Sill Inner, Left

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Chrysler Laser parts. Parts like Floor Pan Front are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
