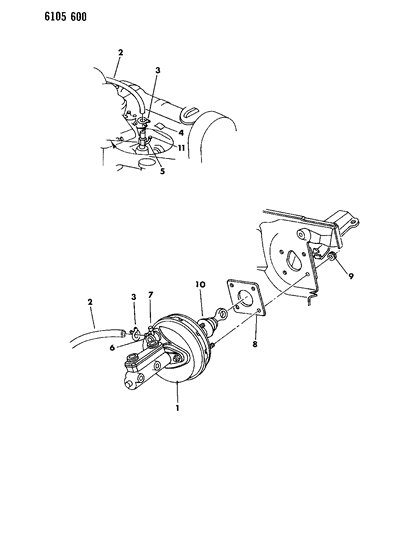

Diagram (1 of 1): BRAKES, SERVICE BOOSTER, POWER BRAKE M,Z (L BODY)

1986 Dodge Charger Booster, Power Brake Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4342707
BOOSTER, Brake

2
3879277
HOSE, .34 I.D., 50 Ft. Roll
HOSE, .34 I.D., 50 Ft. Roll
Replaced By: HWV01132AA
$40.00 $27.06
1
Add To Cart
2
3880431
HOSE, .34 I.D., 50 Ft. Roll
- 20"long
2
4026511
HOSE, .34 I.D., 50 Ft. Roll
- .145 I.D. 50 Ft. Roll
2
4095681
HOSE, .34 I.D., 50 Ft. Roll
- .025 I.D. 50 Ft. Roll
2
4267340
HOSE, .34 I.D., 50 Ft. Roll
- .341 I.D. Hypalon

3
2448761
CLAMP
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 33000784
$4.95 $3.28
1
Add To Cart

4
3580170
CAP, w/Bendix
CAP, w/Bendix
4
4294232
CAP, w/Bendix
- CAP, w/Teves

5
4026117
CONNECTOR, 2 Way
7 Way
5
4041228
CONNECTOR, 2 Way
- 1 Way w/plug, P/Brk. Vac. Line
5
4094139
CONNECTOR, 2 Way
- CONNECTOR, 2 Way
5
4094872
CONNECTOR, 2 Way
- 5 Way
5
5240798
CONNECTOR, 2 Way
- 1 Way, Vacuum Control

6
4271382
VALVE and GROMMET PACKAGE, w/Bendix
VALVE and GROMMET PACKAGE, w/Bendix
6
4294229
VALVE and GROMMET PACKAGE, w/Bendix
- GROMMET, w/Teves
6
4294230
VALVE and GROMMET PACKAGE, w/Bendix
- VALVE, w/Teves

7
3880044
CAP

8
5204061
GASKET

9
6100050
NUT
$3.95 $2.62
1
Add To Cart

10
4294228
BOOT, w/Bendix
BOOT, w/Teves
10
5204069
BOOT, w/Bendix
- BOOT, w/Bendix

11
3580171
CAP, Tube 3/16" I.D. w/Bendix
CAP, Tube 3/16" I.D. w/Bendix
11
4294231
CAP, Tube 3/16" I.D. w/Bendix
- CAP, Tube 3/16" I.D. w/Teves

4294036
CLIP, Push Rod Pin (not shown)
- Replaced By: 4581512AA
$2.35 $1.72
1
Add To Cart

3766429
FILTER, Vac. Hose (Not Shown)

4095681
HOSE, .025 I.D., 50 Ft. Roll (Not Shown)

6500230
NUT, Bstr. to M/Cyl. Mtg. (Not Shown)
- Require Quantity: 2

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Dodge Charger parts. Parts like Booster, Power Brake are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.6L, 4 Cyl 2.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
