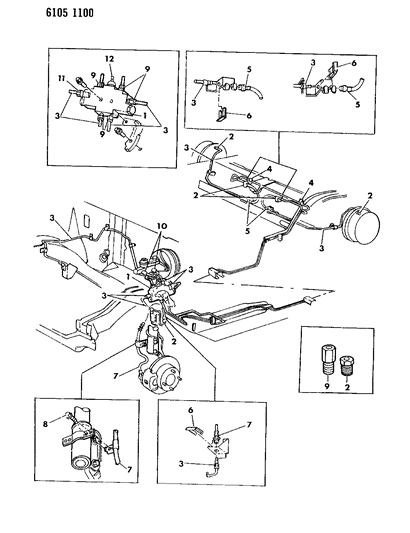

Diagram (1 of 1): BRAKES, SERVICE LINES AND HOSES, BRAKE M,Z (L BODY)

1986 Dodge Charger Lines & Hoses, Brake Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4313266
VALVE, Metering and Warning Brake

2
6029113
NUT

3
1843251
TUBING, Brake 25 Ft. Roll, 3/16" O.D.
TUBING, Brake 25 Ft. Roll, 3/16" O.D.
$72.68 $57.12
1
Add To Cart
3
3879283
TUBING, Brake 25 Ft. Roll, 3/16" O.D.
- COVER, 25 Ft. Roll, 3/16" O.D. Tubing
3
4026140
TUBING, Brake 25 Ft. Roll, 3/16" O.D.
- 3/8" O.D. Tubing

4
2123341
CLIP
- Require Quantity: 2

5
5204264
HOSE, Rear Brake
- Require Quantity: 2

6
2208893
CLIP
- Require Quantity: 2
- Package Quantity: 1
$9.10 $6.62
1
Add To Cart

7
4313772
HOSE, Front Brake, Right
HOSE, Front Brake, Right
7
4313773
HOSE, Front Brake, Right
- HOSE, Front Brake, Left

8
6100557
SCREW
- Require Quantity: 2
- Package Quantity: 1
$8.55 $5.79
1
Add To Cart

9
6029113
NUT

10
6029113
NUT

11
6031714
NUT

12
3620790
SWITCH, Brake Warning

4313632
BRACKET, Valve Mtg. (Not Shown)

6030084
GASKET, Inlet Hose (not shown)

2881984
O-RING, (Not Shown)

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Dodge Charger parts. Parts like Lines & Hoses, Brake are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.6L, 4 Cyl 2.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
