3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

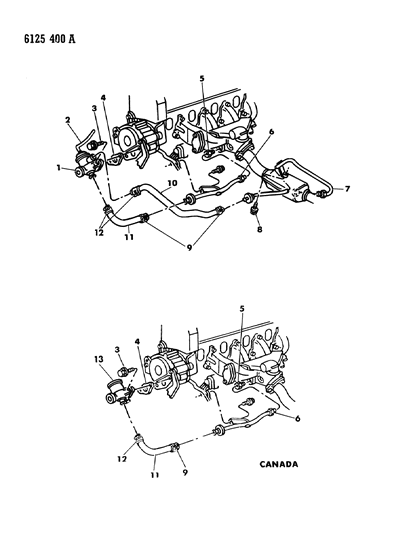

- 1.EMISSION SYSTEMS AIR PUMP TUBING 1.6L ENGINE
- 2.EMISSION SYSTEMS AIR PUMP TUBING 2.2L ENGINE L BODY
- 3.EMISSION SYSTEMS AIR PUMP TUBING 318 ENGINE
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
1
2
4275837
HOSE, Air Switch and Relief Valve to Catalyst Tube
3
4179884
HOSE, Diverter or Combination Valve to Air Injection Tube or Crossover
3
4275838
TUBE, Air Switch and Relief Valve to Exhaust Manifold
4
4179700
GASKET, Air Switch and Relief Valve
4
4179885
HOSE, Air Switch Valve to Catalyst Tube
4
4268784
HOSE, Air Switch and Relief Valve to Exhaust Manifold Tube
5
6032290
ADAPTER, Exhaust Manifold
2448761CLAMP- CLAMP
- Require Quantity: 4
- Package Quantity: 1
- Replaced By: 33000784
5
6
4268782
HOSE, Air Pump to Air Switch and Relief Valve
6
4104161
TUBE, Air Switch Valve to Catalyst Downstream
6
4287346
TUBE, Combination Valve to Exhaust Manifold
7
4150638
TUBE, Airline to Catalytic Converter
7
4300393
TUBE, Combination Valve to Catalyst Downstream
9
4274949
BRACKET, Clip Locator
9
10
4227168
HOSE, Air Switch and Relief Valve to Catalyst Tube
10
11
4241670
HOSE, Valve to Exhaust Manifold Tube
12
6032290
ADAPTER, Exhaust Manifold
12
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1986
Dodge Charger parts. Parts like Air Pump Tubing are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.6L, 4 Cyl 2.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
