2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

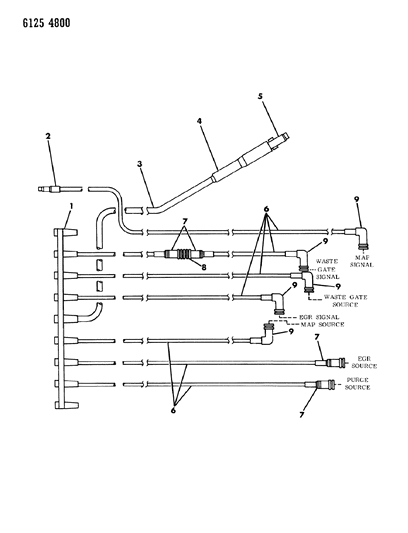

  • 1.EMISSION SYSTEMS QUAD VACUUM SOLENOID HOSE HARNESS 2.2L ENGINE TURBO L BODY - AFTER 1-16-86
    1986 Dodge Charger Quad Vacuum Solenoid Hose Harness Diagram 1

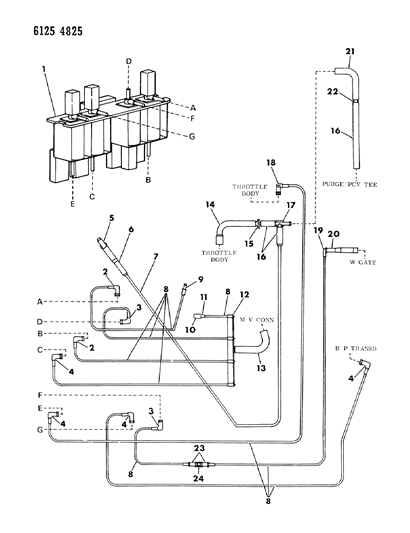

  • 2.EMISSION SYSTEMS QUAD VACUUM SOLENOID HOSE HARNESS 2.2L ENGINE TURBO L BODY - UP TO 1-16-86
    1986 Dodge Charger Quad Vacuum Solenoid Hose Harness Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    4288238
    CONNECTOR, 9 Port - Female
  • 1
    5226352
    SOLENOID, Quad Vacuum
  • 2
    4268687
    CONNECTOR .15M - 3/16
  • 2
    4213778
    ELBOW .15F - 3/16
    • Require Quantity: 2
  • 3
    4213779
    ELBOW .15F - 3/16
    • Require Quantity: 2
  • 3
    4275716
    HOSE, Rubber 1/4" (serv. in 50 ft. roll)
  • 4
    4213774
    ELBOW .15F - 3/16
    • Require Quantity: 4
  • 4
    4288208
    TUBE, Expanded End
  • 6
    4288208
    TUBE, Expanded End
  • 7
    4179391
    CONNECTOR .15F - 3/16
    • Require Quantity: 4
  • 7
    4287935
    HOSE, Rubber 1/4" (serv. in 50 ft. roll)
  • 8
    4275607
    CONNECTOR 3/16 x 3/16
  • 9
    4268687
    CONNECTOR .15M - 3/16
  • 9
    4213774
    ELBOW .15F - 3/16
    • Require Quantity: 5
  • 10
    3580170
    CAP
  • 11
    4268681
    CONNECTOR .15M - 1/8
  • 12
    4306053
    CONNECTOR
  • 13
    4241846
    TUBE, Formed
  • 14
    4306993
    TUBE, Molded
  • 15
    4306923
    VALVE, Check
  • 16
    4203211
    HOSE, Rubber 1/4" (serv. in 50 ft. roll)
  • 18
    4213766
    ELBOW .15F - 1/8
  • 19
    4213797
    ELBOW .15M - 3/16
  • 21
    4307877
    HOSE, Molded
  • 22
    4307334
    CONNECTOR
  • 23
    4179391
    CONNECTOR .15F - 3/16
    • Require Quantity: 2
  • 24
    4275607
    CONNECTOR
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1986 Dodge Charger parts. Parts like Quad Vacuum Solenoid Hose Harness are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.6L, 4 Cyl 2.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
