2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

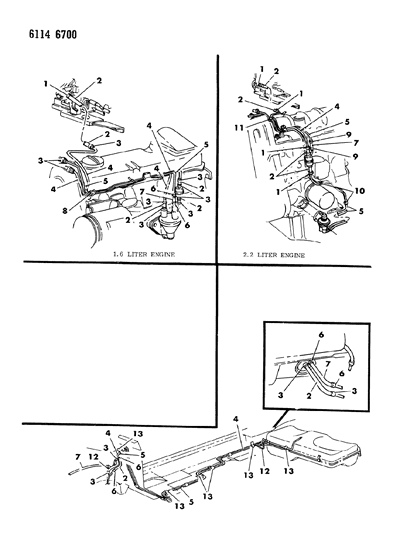

  • 1.FUEL FUEL LINES L BODY (EXCEPT TURBO CHARGER)
    1986 Dodge Charger Fuel Lines Diagram 1

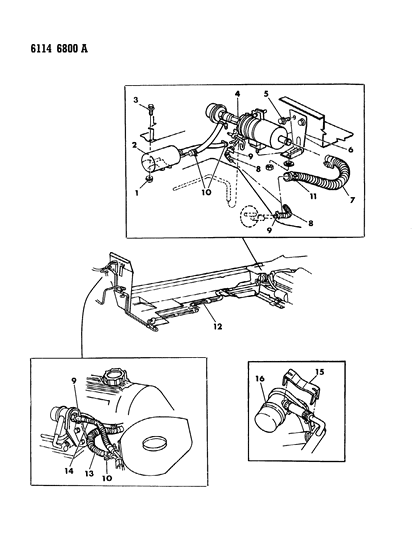

  • 2.FUEL FUEL LINES L BODY - TURBO CHARGER
    1986 Dodge Charger Fuel Lines Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    2463937
    CLAMP
  • 1
    Dodge 0219462
    0219462
    NUT, Filter Mounting
  • 2
    4203316
    HOSE, (50 ft. roll) 5/16 I.D.
  • 3
    2448761
    CLAMP
    • Replaced By: 33000784
    $4.95 $3.28
    1
    Add To Cart
  • 4
    1843253
    TUBE, (25 ft. roll) 5/16 I.D.
    • TUBE, (25 ft. roll) 5/16 I.D.
  • 4
    4268268
    TUBE, (25 ft. roll) 5/16 I.D.
    • TUBE, Fuel Filter Hose to Carb. Hose, w/1.6 Liter Engine (Fuel)
  • 5
    1843252
    TUBE, (25 ft. roll) 1/4 O.D.
  • 7
    4203211
    HOSE, (50 ft. roll) 1/4 I.D.
  • 7
    4279931
    HOSE, Fuel Pump to Tank
  • 8
    5214412
    CLIP, Fuel Tubes
  • 8
    4279699
    HOSE, Fuel Return Tube to Tank
    • SLEEVE, Fuel Return Hose
  • 8
    4279992
    HOSE, Fuel Return Tube to Tank
    • HOSE, Fuel Return Tube to Tank
  • 9
    6500650
    CLAMP
    • Require Quantity: 4
  • 10 Dodge 6500651
    6500651
    CLAMP
    • Require Quantity: 4
    • Package Quantity: 1
    • Replaced By: 6503573
    $8.40 $5.78
    1
    Add To Cart
  • 10
    2925705
    CLIP
  • 11
    6500722
    CLAMP
  • 11
    2530700
    CLIP
  • 12
    1843251
    TUBE
    • Fuel Vapor, 3/16 O.D.
    $72.68 $57.12
    1
    Add To Cart
  • 12
    1843252
    TUBE
    • Fuel Return, 1/4 O.D.
  • 12
    1843253
    TUBE
    • Fuel Supply, 5/16 O.D.
  • 13
    3879284
    CLIP (not serviced)
    • TUBING, Fuel Return Tube Convoluted
  • 13
    3879285
    CLIP (not serviced)
    • COVER, Fuel Supply Tube
  • 13
    4279991
    HOSE, Fuel Supply Tube Front to Fuel Rail
  • 14
    4279992
    HOSE, Fuel Return Tube to Engine
  • 15
    3879284
    SHIELD, Fuel Rail Hose
    • TUBING, Fuel Return Hose Convoluted
  • 15
    3879285
    SHIELD, Fuel Rail Hose
    • TUBING, Fuel Supply Hose Convoluted
  • 15
    4279699
    SHIELD, Fuel Rail Hose
    • SLEEVE, Fuel Return Tube Hose to Engine
  • 15
    4306340
    SHIELD, Fuel Rail Hose
    • SHIELD, Fuel Rail Hose
      SLEEVE, Fuel Return Hose (not illustrated)
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1986 Dodge Charger parts. Parts like Fuel Lines are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.6L, 4 Cyl 2.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
