3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

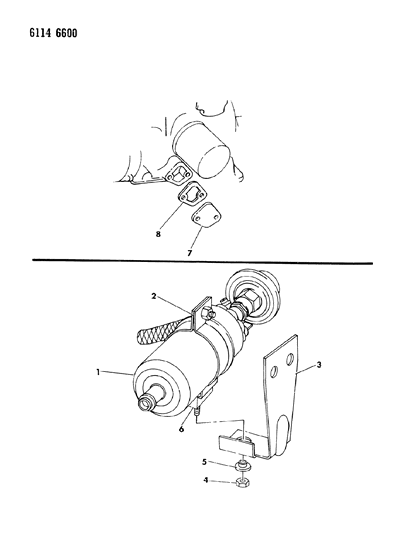

- 1.FUEL FUEL PUMP 2.6L ENGINE
- 2.FUEL FUEL PUMP E.F.I.
- 3.FUEL FUEL PUMP TURBO CHARGER L BODY
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
MD026604
SUPPORT, Fuel Hose, exc High Altitude
3
4203712
BRACKET, Fuel Pump Mounting
3
MD023388GASKET, Fuel Pump
4
4275325
COVER, Fuel Pump Pad
4
MD023389
INSULATOR, Fuel Pump
5
5214680
GASKET, Fuel Pump Pad Cover
5
4279988
ISOLATOR, Fuel Pump
6
4279681
ISOLATOR, Fuel Pump Mounting
6
6033095
SEAL, Fuel Pump Mounting
7
4275325
COVER, Fuel Pump Pad
7
8
5214680
GASKET, Fuel Pump Pad Cover
8
MD026607
HOSE, w/Clips, Fuel, exc Calif and High Altitude
10
MD100684
HOSE, w/Clip, Fuel, High Altitude
11
MD100694
CONNECTOR, Fuel Hose, High Altitude
12
MD100681
HOSE, w/Clip, Fuel, High Altitude
13
MD100680
HOSE, w/Clip, Fuel, High Altitude
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1986
Dodge Charger parts. Parts like Fuel Pump are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.6L, 4 Cyl 2.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
