5 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

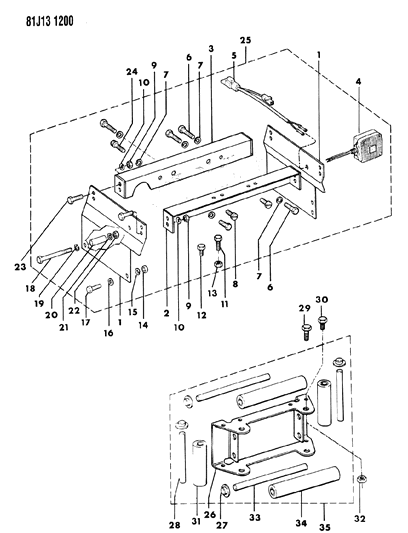

  • 1.FRAME & BUMPERS WINCH MOUNTING RAMSEY 6000 CJ
    1986 Jeep Wrangler Winch Mounting Diagram 1

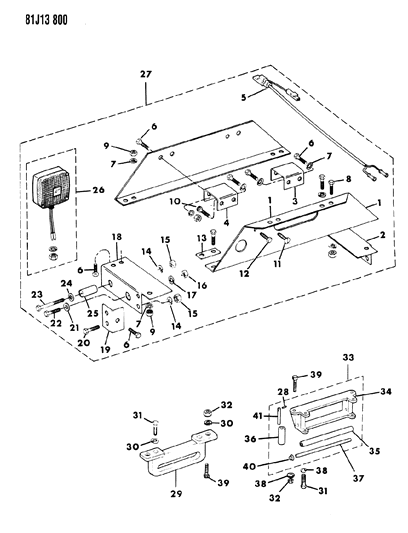

  • 2.FRAME & BUMPERS WINCH MOUNTING RAMSEY 6000 CJ
    1986 Jeep Wrangler Winch Mounting Diagram 2

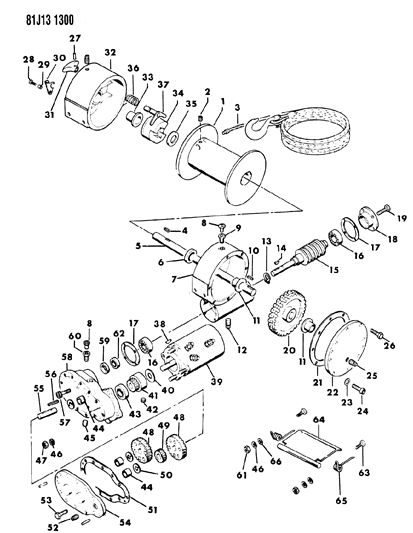

  • 3.FRAME & BUMPERS WINCH MOUNTING RAMSEY REP 6000 CJ
    1986 Jeep Wrangler Winch Mounting Diagram 3

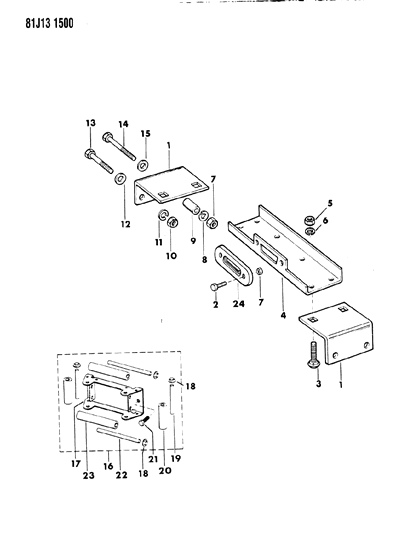

  • 4.FRAME & BUMPERS WINCH MOUNTING, LIGHTWEIGHT RAMSEY 2000 OR 2001 CJ
    1986 Jeep Wrangler Winch Mounting Diagram 4

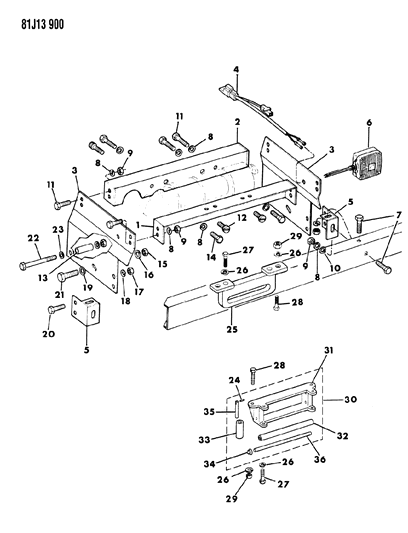

  • 5.FRAME & BUMPERS WINCH MOUNTING, REGULAR RAMSEY 2000 OR 2001 CJ
    1986 Jeep Wrangler Winch Mounting Diagram 5
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    J8131169
    BAR
  • 1
    J8131037
    BRACKET, Mounting
    • Left
  • 1
    J8131038
    BRACKET, Mounting
    • Right
  • 1
    83510152
    BRACKET, Right
    • BRACKET, Right
  • 1
    83510153
    BRACKET, Right
    • BRACKET, Left
  • 1
    J8134176
    BRACKET, Right
    • BRACKET, Right
  • 1
    J8134177
    BRACKET, Right
    • BRACKET, Left
  • 1
    J8131489
    DRUM, Cable
  • 2
    J8131174
    BAR
    • BAR
  • 2
    J8131473
    BAR
    • BAR
  • 2
    83510147
    BOLT
    • Require Quantity: 2
  • 2
    J8131035
    BRACKET
    • Require Quantity: 2
  • 2
    J8131065
    PLUG
  • 3
    J8131474
    BAR
  • 3
    83510156
    BOLT
  • 3
    J8131062
    BRACKET
  • 3
    J8131172
    BRACKET, Right
    • BRACKET, Right
  • 3
    J8131173
    BRACKET, Right
    • BRACKET, Left
  • 3
    J8131517
    CABLE, Tow
  • 4
    83510155
    BRACKET
  • 4
    J8131063
    BRACKET
  • 4
    J8131091
    KEY
  • 4
    J8131043
    LAMP, Park/Turn
    • Require Quantity: 2
  • 4
    J8131045
    WIRE
    • Require Quantity: 2
  • 5
    J8131170
    BRACKET, Right
    • BRACKET, Right
  • 5
    J8131171
    BRACKET, Right
    • BRACKET, Left
  • 5
    J0120377
    NUT
  • 5
    J8131494
    SHAFT
  • 5
    J8131045
    WIRE
    • Require Quantity: 2
  • 6 Jeep J0180077
    J0180077
    BOLT
    • BOLT
    • Replaced By: 154906AA
    $3.55 $2.38
    1
    Add To Cart
  • 6
    J0180122
    BOLT
    • BOLT
  • 6
    J8131000
    BUSHING
  • 6
    J8131043
    LAMP, Park/Turn
    • Require Quantity: 2
  • 6
    J0120382
    WASHER, Lock
  • 7
    S0180124
    BOLT
  • 7
    J8131493
    HOUSING
  • 7
    S0120378
    NUT
  • 7
    J0120214
    WASHER
  • 7
    J0120382
    WASHER, Lock
  • 8
    S0180124
    BOLT
  • 8
    J2051247
    PLUG
    • Require Quantity: 2
  • 8
    S0120384
    WASHER
  • 8
    J0120382
    WASHER, Lock
  • 8
    J8131479
    WASHER, Lock
  • 9
    J0120377
    NUT
  • 9
    J8131511
    PLUG
  • 9
    83510154
    SPACER
  • 10
    J8131033
    BOLT
    • Require Quantity: 4
  • 10
    J2051097
    KEY
  • 10
    S0220286
    NUT
  • 10
    J0120394
    WASHER
  • 10
    J0120382
    WASHER, Lock
  • 11
    J0180120
    BOLT
    • BOLT
  • 11
    J0180122
    BOLT
    • BOLT
  • 11
    J8131497
    BUSHING
  • 11
    J8131034
    SCREW
  • 11
    S0131046
    WASHER
  • 12
    J0180120
    BOLT
    • BOLT
  • 12
    J8131034
    BOLT
    • BOLT
  • 12
    S0180124
    BOLT
  • 12
    J8131509
    PLUG
  • 12
    S0131017
    WASHER
  • 13
    S0271767
    BOLT
  • 13
    J8131040
    BRACKET
    • Require Quantity: 4
  • 13
    J8131475
    NUT
  • 13
    J2062126
    RIING, Snap
  • 13
    J8131044
    SPACER
  • 14
    J0180120
    BOLT
  • 14
    S0180192
    BOLT
  • 14
    J2062135
    KEY
  • 14
    S0220086
    NUT
  • 14
    S0120384
    WASHER, Lock
  • 15
    S0120378
    NUT
  • 15
    S0220086
    NUT
  • 15
    J8131495
    SHAFT
  • 15
    Jeep J0120396
    J0120396
    WASHER
  • 15
    S0131046
    WASHER
  • 16
    J2051099
    BEARING
    • Require Quantity: 2
  • 16
    83510142
    GUIDE, Cable
  • 16
    S0220086
    NUT
  • 16
    S0131017
    WASHER
    • WASHER
  • 16
    S0131046
    WASHER
    • WASHER
  • 17
    S0271767
    BOLT
  • 17
    83510144
    FRAME
  • 17
    J2051104
    GASKET
  • 17
    S0120378
    NUT
  • 17
    S0131046
    WASHER
  • 18
    S0180192
    BOLT
  • 18
    J8131036
    BRACKET, Mounting
    • Require Quantity: 2
  • 18
    J8131021
    CAP
  • 18
    J8131184
    CAP
  • 18
    S0120384
    WASHER
  • 19
    J8131500
    BOLT
  • 19
    J8131039
    BRACKET
  • 19
    J8131484
    PIN
    • Require Quantity: 2
  • 19
    S0120384
    WASHER
    • WASHER
  • 19
    S0131017
    WASHER
    • WASHER
  • 20
    J0180173
    BOLT
  • 20
    J8131490
    GEAR
  • 20
    J8131482
    ROLLER
    • Require Quantity: 2
  • 20
    J8131044
    SPACER
  • 21
    83510145
    BOLT
    • Require Quantity: 2
  • 21
    S0271767
    BOLT
  • 21
    J8131507
    GASKET
  • 21
    Jeep J0120396
    J0120396
    WASHER
  • 21
    S0131017
    WASHER
  • 22
    S0180192
    BOLT
    • BOLT
  • 22
    S0271767
    BOLT
    • BOLT
    • Require Quantity: 2
  • 22
    J8131488
    COVER
  • 22
    S0120378
    NUT
  • 22
    83510143
    PIN
    • Require Quantity: 2
  • 23
    J0180122
    BOLT
  • 23
    S0180192
    BOLT
    • Require Quantity: 2
  • 23
    J8131015
    ROLLER
    • Require Quantity: 2
  • 23
    J0120392
    WASHER
    • WASHER
  • 23
    Jeep J0120396
    J0120396
    WASHER
    • WASHER
  • 24
    J8131478
    BOLT
  • 24
    83510146
    GUIDE, Cable
  • 24
    J8131017
    PIN
  • 24
    J8131502
    SCREW
  • 24
    Jeep J0120396
    J0120396
    WASHER
  • 25
    J8131011
    GUIDE, Cable
  • 25
    J2061544
    MOUNTING PACKAGE, Winch
  • 25
    J8131510
    PLUG
  • 25
    J8131044
    SPACER
  • 26
    J8131480
    FRAME
  • 26
    J8131043
    LAMP, Park/Turn
    • Require Quantity: 2
  • 26
    J8131499
    SCREW
  • 26
    J0120382
    WASHER, Lock
  • 27
    J0180122
    BOLT
  • 27
    J8131021
    CAP
  • 27
    J8131512
    KEY
  • 27
    J2061506
    MOUNTING PACKAGE, Winch
  • 28
    J0180124
    BOLT
  • 28
    J8131017
    PIN
  • 28
    J8131484
    ROLLER
    • Require Quantity: 2
  • 28
    J8131504
    SCREW
  • 29
    S0180124
    BOLT
  • 29
    J8131496
    BUSHING
  • 29
    J8131011
    GUIDE, Cable
  • 29
    J0120377
    NUT
  • 30
    J0180120
    BOLT
  • 30
    J8131508
    BRACKET
  • 30
    J8131177
    GUIDE, Cable
  • 30
    J0120382
    WASHER, Lock
    • Require Quantity: 2
  • 31
    J0180122
    BOLT
  • 31
    J8131012
    FRAME
  • 31
    J8131491
    HANDLE
  • 31
    J8131482
    ROLLER
    • Require Quantity: 2
  • 32
    J8131492
    HOUSING
  • 32
    J0120377
    NUT
  • 32
    J8131475
    NUT
  • 32
    J8131015
    ROLLER
    • Require Quantity: 2
  • 33
    J8131194
    BUSHING
  • 33
    J8131177
    GUIDE, Cable
  • 33
    J8131483
    PIN
    • Require Quantity: 2
  • 33
    J8131016
    ROLLER
    • Require Quantity: 2
  • 34
    J8131021
    CAP
  • 34
    J8131185
    CLUTCH
  • 34
    J8131012
    FRAME
  • 34
    J8131481
    ROLLER
    • Require Quantity: 2
  • 35
    J8131485
    GUIDE, Cable
  • 35
    J8131014
    PIN
    • Require Quantity: 2
  • 35
    J8131015
    ROLLER
    • Require Quantity: 2
  • 35
    J8131189
    SPACER
  • 36
    J8131013
    PIN
    • Require Quantity: 2
  • 36
    J8131016
    ROLLER
    • Require Quantity: 2
  • 36
    J8131513
    SPRING
  • 37
    J8131013
    PIN
  • 37
    J8131486
    SPACER
  • 38
    J8131003
    KEY
  • 38
    J0120382
    WASHER, Lock
  • 39
    J0180124
    BOLT
  • 39
    J2062124
    MOTOR
  • 40
    J8131021
    CAP
  • 40
    J8131007
    WASHER
  • 41
    J8129999
    GEAR
  • 41
    J8131014
    PIN
    • Require Quantity: 2
  • 42
    J8131065
    PLUG
  • 43
    J8131008
    SEAL, Oil
  • 44
    J8131193
    BUSHING
  • 45
    J0103867
    PLUG
  • 46
    J0120382
    WASHER, Lock
  • 47
    J8131505
    NUT
  • 48
    J2062114
    GEAR
    • Require Quantity: 2
  • 49
    J2062112
    GEAR
  • 50
    J2057017
    WASHER
  • 51
    J2062119
    GASKET
  • 52
    J2051332
    PLUG
  • 53
    J8131498
    BOLT
  • 54
    J8131187
    COVER
  • 55
    J2062111
    SHAFT
  • 56
    J2062136
    KEY
  • 57
    J8131063
    SCREW
  • 58
    J8131001
    HOUSING
  • 59
    J8131516
    BUSHING
  • 60
    J0119923
    PLUG
  • 61
    J0120377
    NUT
  • 62
    J2051103
    SEAL
  • 63
    J8131503
    SCREW
  • 64
    J8131518
    PLATE
  • 65
    J8131514
    SPRING, Right
    • SPRING, Right
  • 65
    J8131515
    SPRING, Right
    • SPRING, Left
  • 66
    J8131506
    WASHER
