2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

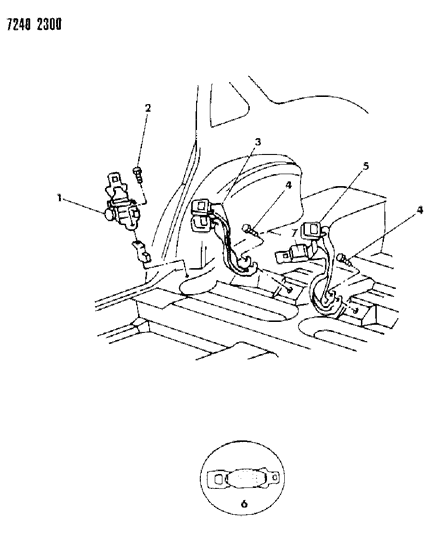

  • 1.H BODY BELT--FRONT SEAT H BODY
    1987 Chrysler LeBaron Belt - Front Seat Diagram 1

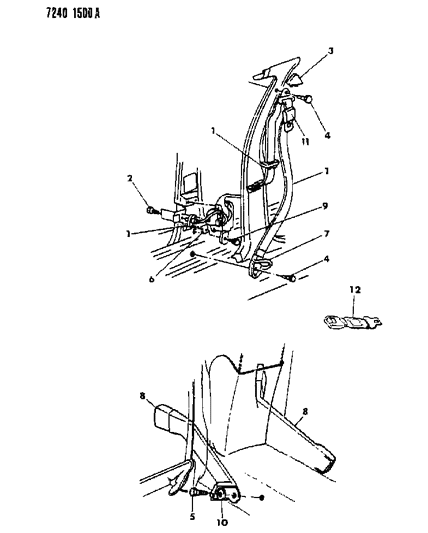

  • 2.H BODY BELT--REAR SEAT H BODY
    1987 Chrysler LeBaron Belt - Front Seat Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    F724DS8
    BELT, Buckle Half
    • Charcoal (LABEL NUMBER 4317069)
    • Require Quantity: 2
  • 1
    F724EE8
    BELT, Buckle Half
    • Cordovan (LABEL NUMBER 4317069)
    • Require Quantity: 2
  • 1
    F724EK1
    BELT, Buckle Half
    • Almond (LABEL NUMBER 4317069)
    • Require Quantity: 2
  • 1
    F724FC5
    BELT, Buckle Half
    • Blue (LABEL NUMBER 4317069)
    • Require Quantity: 2
  • 1
    F864EE8
    BELT, Outer
    • Cordovan, Right (LABEL NUMBER 4317022-3)
  • 1
    F864EK1
    BELT, Outer
    • Almond, Right (LABEL NUMBER 4317022-3)
  • 1
    F864FC5
    BELT, Outer
    • Blue, Right (LABEL NUMBER 4317022-3)
  • 1
    F864FS8
    BELT, Outer
    • Charcoal, Right (LABEL NUMBER 4317022-3)
  • 1
    F865EE8
    BELT, Outer
    • Cordovan, Left (LABEL NUMBER 4317022-3)
  • 1
    F865EK1
    BELT, Outer
    • Almond, Left (LABEL NUMBER 4317022-3)
  • 1
    F865FC5
    BELT, Outer
    • Blue, Left (LABEL NUMBER 4317022-3)
  • 1
    F865FS8
    BELT, Outer
    • Charcoal, Left (LABEL NUMBER 4317022-3)
  • 2
    Chrysler 6031484
    6031484
    BOLT
    • Require Quantity: 2
  • 3
    F710CS8
    BELT, Buckle Inner
    • Charcoal (LABEL NUMBER 4316754)
  • 3
    F710EE8
    BELT, Buckle Inner
    • Cordovan (LABEL NUMBER 4316754)
  • 3
    F710EK1
    BELT, Buckle Inner
    • Almond (LABEL NUMBER 4316754)
  • 3
    F710FC5
    BELT, Buckle Inner
    • Blue (LABEL NUMBER 4316754)
  • 3
    F700CA3
    COVER, Turning Loop
    • Silver
    • Require Quantity: 2
  • 3
    F700EC5
    COVER, Turning Loop
    • Blue
    • Require Quantity: 2
  • 3
    F700EE8
    COVER, Turning Loop
    • Cordovan
    • Require Quantity: 2
  • 3
    F700EK1
    COVER, Turning Loop
    • Almond
    • Require Quantity: 2
  • 3
    F700FS8
    COVER, Turning Loop
    • Charcoal
    • Require Quantity: 2
  • 4
    6031216
    BOLT
    • Require Quantity: 2
  • 5
    F717CS8
    BELT, Inner and Tip Half
    • Charcoal (LABEL NUMBER 4316767)
  • 5
    F717EE8
    BELT, Inner and Tip Half
    • Cordovan (LABEL NUMBER 4316767)
  • 5
    F717EK1
    BELT, Inner and Tip Half
    • Almond (LABEL NUMBER 4316767)
  • 5
    F717FC5
    BELT, Inner and Tip Half
    • Blue (LABEL NUMBER 4316767)
  • 5
    6031298
    BOLT
    • Require Quantity: 6
  • 6
    6031448
    U-NUT
    • Require Quantity: 2
  • 7
    4316773
    COVER, Tip Half (P.A.R.)
  • 8
    F720EE8
    BELT, Inner
    • Cordovan, Right (LABEL NUMBER 4317070-1)
  • 8
    F720EK1
    BELT, Inner
    • Almond, Right (LABEL NUMBER 4317070-1)
  • 8
    F720FC5
    BELT, Inner
    • Blue, Right (LABEL NUMBER 4317070-1)
  • 8
    F720FS8
    BELT, Inner
    • Charcoal, Right (LABEL NUMBER 4317070-1)
  • 8
    F721EE8
    BELT, Inner
    • Cordovan, Left (LABEL NUMBER 4317070-1)
  • 8
    F721EK1
    BELT, Inner
    • Almond, Left (LABEL NUMBER 4317070-1)
  • 8
    F721FC5
    BELT, Inner
    • Blue, Left (LABEL NUMBER 4317070-1)
  • 8
    F721FS8
    BELT, Inner
    • Charcoal, Left (LABEL NUMBER 4317070-1)
  • 9
    Chrysler 6031484
    6031484
    BOLT
    • Require Quantity: 4
  • 11
    4316773
    COVER, Tip Half (P.A.R.)
  • 4519075
    TETHER, Anchor Pkg.
    • Outer
  • 4519076
    TETHER, Anchor Pkg.
    • Center
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1987 Chrysler LeBaron GTS parts. Parts like Belt - Front Seat are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
