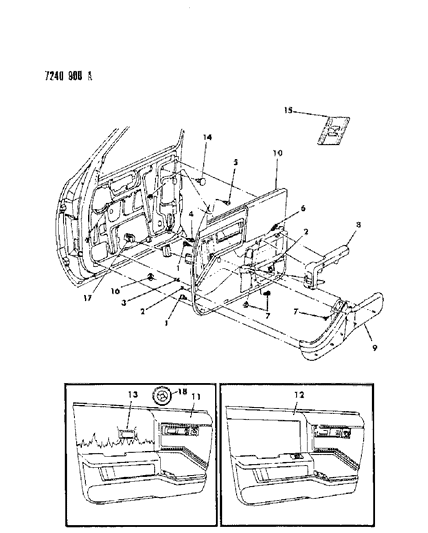

Diagram (1 of 1): H BODY DOOR TRIM--FRONT H BODY

1987 Chrysler LeBaron Door Trim - Front Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

2
6501353
NUT, Spring Push On

3
6501352
FASTENER
- Require Quantity: 14
- Package Quantity: 1
$5.83 $4.59
1
Add To Cart

4
4114785
FASTENER

8
D526EE8
ARMREST
Cordovan, Right (w/o ELECTRIC SWITCH)
8
D526EK1
ARMREST
- Almond, Right (w/o ELECTRIC SWITCH)
8
D526FC5
ARMREST
- Blue, Right (w/o ELECTRIC SWITCH)
8
D526FS8
ARMREST
- Charcoal, Right (w/o ELECTRIC SWITCH)
8
D527EE8
ARMREST
- Cordovan, Left (w/o ELECTRIC SWITCH)
8
D527EK1
ARMREST
- Almond, Left (w/o ELECTRIC SWITCH)
8
D527FC5
ARMREST
- Blue, Left (w/o ELECTRIC SWITCH)
8
D527FS8
ARMREST
- Charcoal, Left (w/o ELECTRIC SWITCH)
8
D548EE8
ARMREST
- Cordovan, Right (w/ELECTRIC SWITCH)
8
D548EK1
ARMREST
- Almond, Right (w/ELECTRIC SWITCH)
8
D548FC5
ARMREST
- Blue, Right (w/ELECTRIC SWITCH)
8
D548FS8
ARMREST
- Charcoal, Right (w/ELECTRIC SWITCH)
8
D549EE8
ARMREST
- Cordovan, Left (w/ELECTRIC SWITCH)
8
D549EK1
ARMREST
- Almond, Left (w/ELECTRIC SWITCH)
8
D549FC5
ARMREST
- Blue, Left (w/ELECTRIC SWITCH)
8
D549FS8
ARMREST
- Charcoal, Left (w/ELECTRIC SWITCH)

9
D112EE8
PANEL, Trim Pocket
Cordovan, Right (w/o POWER WINDOWS)
9
D112EK1
PANEL, Trim Pocket
- Almond, Right (w/o POWER WINDOWS)
9
D112FC5
PANEL, Trim Pocket
- Blue, Right (w/o POWER WINDOWS)
9
D112FS8
PANEL, Trim Pocket
- Charcoal, Right (w/o POWER WINDOWS)
9
D113EE8
PANEL, Trim Pocket
- Cordovan, Left (w/o POWER WINDOWS)
9
D113EK1
PANEL, Trim Pocket
- Almond, Left (w/o POWER WINDOWS)
9
D113FC5
PANEL, Trim Pocket
- Blue, Left (w/o POWER WINDOWS)
9
D113FS8
PANEL, Trim Pocket
- Charcoal, Left (w/o POWER WINDOWS)
9
D114EE8
PANEL, Trim Pocket
- Cordovan, Right (w/POWER WINDOWS)
9
D114EK1
PANEL, Trim Pocket
- Almond, Right (w/POWER WINDOWS)
9
D114FC5
PANEL, Trim Pocket
- Blue, Right (w/POWER WINDOWS)
9
D114FS8
PANEL, Trim Pocket
- Charcoal, Right (w/POWER WINDOWS)
9
D115EE8
PANEL, Trim Pocket
- Cordovan, Left (w/POWER WINDOWS)
9
D115EK1
PANEL, Trim Pocket
- Almond, Left (w/POWER WINDOWS)
9
D115FC5
PANEL, Trim Pocket
- Blue, Left (w/POWER WINDOWS)
9
D115FS8
PANEL, Trim Pocket
- Charcoal, Left (w/POWER WINDOWS)

10
4282464
WEATHERSTRIP, Right
WEATHERSTRIP, Right
10
4282465
WEATHERSTRIP, Right
- WEATHERSTRIP, Left

11
J362EEE
PANEL, Door Trim w/Speaker Grille
Cordovan, (C7E), Right (CLOTH)
11
J362EKK
PANEL, Door Trim w/Speaker Grille
- Almond, (C7K), Right (CLOTH)
11
J362FCC
PANEL, Door Trim w/Speaker Grille
- Blue, (C7C), Right (CLOTH)
11
J362FSA
PANEL, Door Trim w/Speaker Grille
- Charcoal, (C7S), Right (CLOTH)
11
J363EEE
PANEL, Door Trim w/Speaker Grille
- Cordovan, (C7E), Left (CLOTH)
11
J363EKK
PANEL, Door Trim w/Speaker Grille
- Almond, (C7K), Left (CLOTH)
11
J363FCC
PANEL, Door Trim w/Speaker Grille
- Blue, (C7C), Left (CLOTH)
11
J363FSA
PANEL, Door Trim w/Speaker Grille
- Charcoal, (C7S), Left (CLOTH)
11
J364EE8
PANEL, Door Trim w/Speaker Grille
- Cordovan, (HLE), Right ((Use Up To 12-1-86))
11
J364EK1
PANEL, Door Trim w/Speaker Grille
- Almond, (HLK), Right ((Use Up To 12-1-86))
11
J364FC5
PANEL, Door Trim w/Speaker Grille
- Blue, (HLC), Right ((Use Up To 12-1-86))
11
J364FS8
PANEL, Door Trim w/Speaker Grille
- Charcoal, (HLS), Right ((Use Up To 12-1-86))
11
J365EE8
PANEL, Door Trim w/Speaker Grille
- Cordovan, (HLE), Left ((Use Up To 12-1-86))
11
J365EK1
PANEL, Door Trim w/Speaker Grille
- Almond, (HLK), Left ((Use Up To 12-1-86))
11
J365FC5
PANEL, Door Trim w/Speaker Grille
- Blue, (HLC), Left ((Use Up To 12-1-86))
11
J365FS8
PANEL, Door Trim w/Speaker Grille
- Charcoal, (HLS), Left ((Use Up To 12-1-86))
11
J796FCC
PANEL, Door Trim w/Speaker Grille
- Blue, (C7C), Right (CLOTH)
11
J796FEE
PANEL, Door Trim w/Speaker Grille
- Cordovan, (C7E), Right (CLOTH)
11
J796FKK
PANEL, Door Trim w/Speaker Grille
- Almond, (C7K), Right (CLOTH)
11
J796FSA
PANEL, Door Trim w/Speaker Grille
- Charcoal, (C7S), Right (CLOTH)
11
J797FCC
PANEL, Door Trim w/Speaker Grille
- Blue, (C7C), Left (CLOTH)
11
J797FEE
PANEL, Door Trim w/Speaker Grille
- Cordovan, (C7E), Left (CLOTH)
11
J797FKK
PANEL, Door Trim w/Speaker Grille
- Almond, (C7K), Left (CLOTH)
11
J797FSA
PANEL, Door Trim w/Speaker Grille
- Charcoal, (C7S), Left (CLOTH)
11
J798FC5
PANEL, Door Trim w/Speaker Grille
- Blue, (HLC), Right ((Use After 12-1-86)
11
J798FE8
PANEL, Door Trim w/Speaker Grille
- Cordovan, (HLE), Right ((Use After 12-1-86)
11
J798FK1
PANEL, Door Trim w/Speaker Grille
- Almond, (HLK), Right ((Use After 12-1-86)
11
J798FS8
PANEL, Door Trim w/Speaker Grille
- Charcoal, (HLS), Right ((Use After 12-1-86)
11
J799FC5
PANEL, Door Trim w/Speaker Grille
- Blue, (HLC), Left ((Use After 12-1-86)
11
J799FE8
PANEL, Door Trim w/Speaker Grille
- Cordovan, (HLE), Left ((Use After 12-1-86)
11
J799FK1
PANEL, Door Trim w/Speaker Grille
- Almond, (HLK), Left ((Use After 12-1-86)
11
J799FS8
PANEL, Door Trim w/Speaker Grille
- Charcoal, (HLS), Left ((Use After 12-1-86)

12
J360EKK
PANEL, Door Trim w/Speaker Grille
Almond, (E7K), Right (CLOTH)
12
J360FC5
PANEL, Door Trim w/Speaker Grille
- Blue, (E7C), Right (CLOTH)
12
J360FEE
PANEL, Door Trim w/Speaker Grille
- Cordovan, (E7E), Right (CLOTH)
12
J360FSA
PANEL, Door Trim w/Speaker Grille
- Charcoal, (E7S), Right (CLOTH)
12
J361EKK
PANEL, Door Trim w/Speaker Grille
- Almond, (E7K), Left (CLOTH)
12
J361FC5
PANEL, Door Trim w/Speaker Grille
- Blue, (E7C), Left (CLOTH)
12
J361FEE
PANEL, Door Trim w/Speaker Grille
- Cordovan, (E7E), Left (CLOTH)
12
J361FSA
PANEL, Door Trim w/Speaker Grille
- Charcoal, (E7S), Left (CLOTH)
12
J726FC5
PANEL, Door Trim w/Speaker Grille
- Blue, (D7C), Right (CLOTH)
12
J726FE8
PANEL, Door Trim w/Speaker Grille
- Cordovan, (D7E), Right (CLOTH)
12
J726FK1
PANEL, Door Trim w/Speaker Grille
- Almond, (D7K), Right (CLOTH)
12
J726FS8
PANEL, Door Trim w/Speaker Grille
- Charcoal, (D7S), Right (CLOTH)
12
J727FC5
PANEL, Door Trim w/Speaker Grille
- Blue, (D7C), Left (CLOTH)
12
J727FE8
PANEL, Door Trim w/Speaker Grille
- Cordovan, (D7E), Left (CLOTH)
12
J727FK1
PANEL, Door Trim w/Speaker Grille
- Almond, (D7K), Left (CLOTH)
12
J727FS8
PANEL, Door Trim w/Speaker Grille
- Charcoal, (D7S), Left (CLOTH)
12
J792FC5
PANEL, Door Trim w/Speaker Grille
- Blue, (D7C), Right ((use after 12/1/86))
12
J792FE8
PANEL, Door Trim w/Speaker Grille
- Cordovan, (D7E), Right ((use after 12/1/86))
12
J792FK1
PANEL, Door Trim w/Speaker Grille
- Almond, (D7K), Right ((use after 12/1/86))
12
J792FS8
PANEL, Door Trim w/Speaker Grille
- Charcoal, (D7S), Right ((use after 12/1/86))
12
J793FC5
PANEL, Door Trim w/Speaker Grille
- Blue, (D7C), Left ((use after 12/1/86))
12
J793FE8
PANEL, Door Trim w/Speaker Grille
- Cordovan, (D7E), Left ((use after 12/1/86))
12
J793FK1
PANEL, Door Trim w/Speaker Grille
- Almond, (D7K), Left ((use after 12/1/86))
12
J793FS8
PANEL, Door Trim w/Speaker Grille
- Charcoal, (D7S), Left ((use after 12/1/86))
12
J794FC5
PANEL, Door Trim w/Speaker Grille
- Blue, (E7C), Right ((use after 12/1/86))
12
J794FEE
PANEL, Door Trim w/Speaker Grille
- Cordovan, (E7E), Right ((use after 12/1/86))
12
J794FKK
PANEL, Door Trim w/Speaker Grille
- Almond, (E7K), Right ((use after 12/1/86))
12
J794FSA
PANEL, Door Trim w/Speaker Grille
- Charcoal, (E7S), Right ((use after 12/1/86))
12
J795FC5
PANEL, Door Trim w/Speaker Grille
- Blue, (E7C), Left ((use after 12/1/86))
12
J795FEE
PANEL, Door Trim w/Speaker Grille
- Cordovan, (E7E), Left ((use after 12/1/86))
12
J795FKK
PANEL, Door Trim w/Speaker Grille
- Almond, (E7K), Left ((use after 12/1/86))
12
J795FSA
PANEL, Door Trim w/Speaker Grille
- Charcoal, (E7S), Left ((use after 12/1/86))

13
D612EE8
BUTTON, Bolster
Cordovan, (HLE)
13
D612EK1
BUTTON, Bolster
- Almond, (HLK)
13
D612FC5
BUTTON, Bolster
- Blue, (HLC)
13
D612FS8
BUTTON, Bolster
- Charcoal, (HLS)

14
6016144
FASTENER, Liner Attaching
- Require Quantity: 4

15
6032431
FASTENER, Bolster Mounting

16
6501353
NUT, Pocket Panel

17
6501292
CLIP, Panel Retaining Lower
- Require Quantity: 4

18
2821994
RETAINER, Button

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1987 Chrysler LeBaron GTS parts. Parts like Door Trim - Front are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
