Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS COWL AND DASH PANEL H BODY

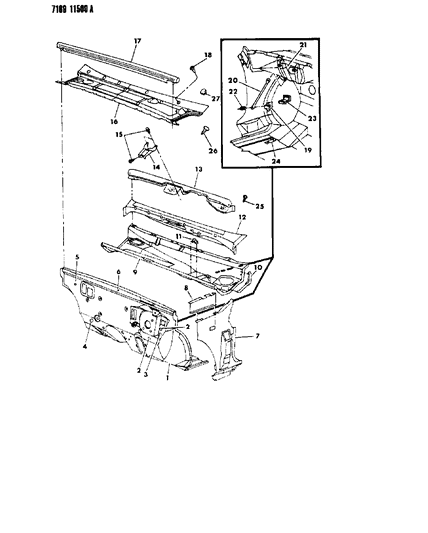

1987 Chrysler LeBaron GTS Cowl & Dash Panel Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4416163
PANEL, Dash

2
3445939
PLUG, .906" Dia./23 mm
- Require Quantity: 2
- Package Quantity: 1

3

2860332
PLUG, .500" Dia./13 mm
$8.85 $6.01
1
Add To Cart

4
5200456
PLUG, 2.75" Dia./70 mm

5
2483571
PLUG, 2.50" Dia./63 mm

6
4206515
PLUG, .430" Dia./11 mm

7
4371962
PANEL, Cowl Side Up To 1-5-87, Right
PANEL, Cowl Side Up To 1-5-87, Right
7
4371963
PANEL, Cowl Side Up To 1-5-87, Right
- PANEL, Cowl Side Up To 1-5-87, Left
7
4416458
PANEL, Cowl Side Up To 1-5-87, Right
- After 1-5-87, Right
7
4416459
PANEL, Cowl Side Up To 1-5-87, Right
- After 1-5-87, Left

8
4314546
REINFORCEMENT, Cowl Side Panel Hood Hinge, Right
REINFORCEMENT, Cowl Side Panel Hood Hinge, Right
8
4314547
REINFORCEMENT, Cowl Side Panel Hood Hinge, Right
- REINFORCEMENT, Cowl Side Panel Hood Hinge, Left

9
4371134
PANEL, Cowl Plenum

10
4371365
SEAL, w/Retainer Cowl Plenum To Cowl Side

11
4337249
BRACKET, Cowl Plenum Panel Lower Wiper Motor Mounting

12
4371332
REINFORCEMENT, Cowl Plenum Panel

13
4371618
SUPPORT, Cowl Top Screen Mounting

14
4371136
SUPPORT, Cowl Top Support To Dash Panel Wiper Pivot

16
4416210
SCREEN, Cowl Top

17
4371144
SEAL, Dash Panel To Hood

19
4206641
BRACKET, Dash To Plenum Panel Brace Mounting Lt.

20
4314879
BRACE, Dash To Plenum Panel Lt.

21
4278979
SUPPORT, Cowl Plenum Steering Column Bracket

22
6500532
NUT and WASHER
- Require Quantity: 2

23
4410559
BRACKET, Floor Panel Footrest Mounting Upper

24
5200384
SEAL, Park Brake Cable

25

3759944
RETAINER, Cowl Plenum To Cowl Side Seal

26
6501387
RETAINER, Cowl Top Screen
- Require Quantity: 2
- Package Quantity: 1

27
6501152
PLUG
- Require Quantity: 10

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1987 Chrysler LeBaron GTS parts. Parts like Cowl & Dash Panel are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
