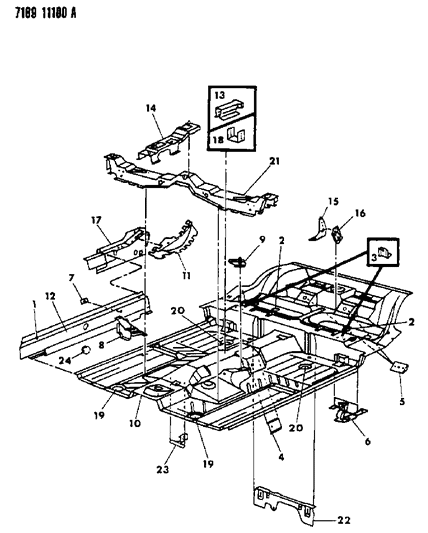

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS FLOOR PAN FRONT H BODY

1987 Chrysler LeBaron Floor Pan Front Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
2574792
PLUG, .75" Dia./19.5 mm
- Require Quantity: 2

2
4073475
PLUG, 1.50" Dia./38.1 mm
- Require Quantity: 2

3
4206904
RETAINER, Front Floor Pan Rear Seat Cushion
- Require Quantity: 2

4
4314259
REINFORCEMENT, Front Floor Pan Front Seat Belt Inner Mounting
- Require Quantity: 2

5
4314260
REINFORCEMENT, Front Floor Pan Rear Seat Belt Inner Mounting
- Require Quantity: 2

6
4314318
BRACKET, Front Floor Pan Lift Hoisting, Right
BRACKET, Front Floor Pan Lift Hoisting, Right
6
4314319
BRACKET, Front Floor Pan Lift Hoisting, Right
- BRACKET, Front Floor Pan Lift Hoisting, Left

7
4314326
REINFORCEMENT, Front Seat Belt Outer Mounting
- Require Quantity: 2

8
4314494
REINFORCEMENT, Front Floor Pan Front Seat Rear Outer Mounting, Right
REINFORCEMENT, Front Floor Pan Front Seat Rear Outer Mounting, Right
8
4314495
REINFORCEMENT, Front Floor Pan Front Seat Rear Outer Mounting, Right
- REINFORCEMENT, Front Floor Pan Front Seat Rear Outer Mounting, Left

9
4314502
REINFORCEMENT, Front Floor Pan Front Seat Rear Inner Mounting, Right
REINFORCEMENT, Front Floor Pan Front Seat Rear Inner Mounting, Right
9
4314503
REINFORCEMENT, Front Floor Pan Front Seat Rear Inner Mounting, Right
- REINFORCEMENT, Front Floor Pan Front Seat Rear Inner Mounting, Left

10
4337972
PAN, Front Floor

11
4314866
REINFORCEMENT, Front Floor Pan Rear Seat Belt Outer Mounting, Right
REINFORCEMENT, Front Floor Pan Rear Seat Belt Outer Mounting, Right
11
4314867
REINFORCEMENT, Front Floor Pan Rear Seat Belt Outer Mounting, Right
- REINFORCEMENT, Front Floor Pan Rear Seat Belt Outer Mounting, Left

12
4371114
PANEL, Body Side Sill Inner, Right
PANEL, Body Side Sill Inner, Right
12
4371115
PANEL, Body Side Sill Inner, Right
- PANEL, Body Side Sill Inner, Left

13
4337945
BRACKET, Rear Console To Floor Pan Mounting

14
4314937
BRACKET, Front Console To Front Floor Pan

15
4337106
BRACKET, Front Floor Pan Rear Seat Back Center Pivot Mounting Right

16
4337161
BRACKET, Front Floor Pan Rear Seat Back Center Pivot Mounting Left

17
4371522
EXTENSION, Sill Inner Rear, Right
EXTENSION, Sill Inner Rear, Right
17
4371523
EXTENSION, Sill Inner Rear, Right
- EXTENSION, Sill Inner Rear, Left

18
4337948
BRACKET, Front Floor Pan Center Seat Mounting

19
5200456
PLUG, 2.75" Dia./69.9 mm
- Require Quantity: 2

20
2424864
PLUG, 1.75" Dia./44.5 mm
- Require Quantity: 2
- Package Quantity: 1
$14.00 $9.70
1
Add To Cart

21
4325673
CROSSMEMBER, Front Floor Pan Seat Track Mounting

24
3794032
SEAL, Side Sill Inner Panel Drian Hole
- Require Quantity: 2
- Package Quantity: 1

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1987 Chrysler LeBaron GTS parts. Parts like Floor Pan Front are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
