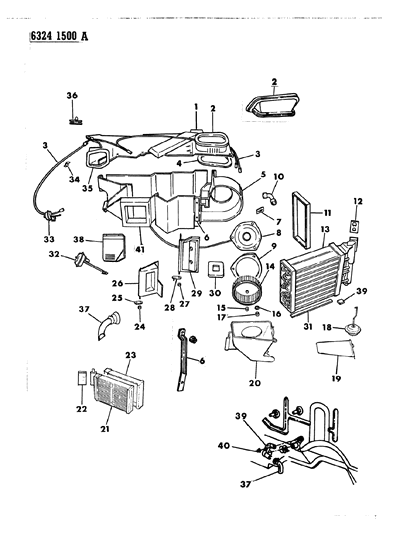

Diagram (1 of 1): HEATER AND AIR CONDITIONING AIR CONDITIONER AND HEATER UNIT N MODELS

1987 Dodge Dakota Air Conditioner & Heater Unit Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4361026
COVER, A/C Evap. Hsg.

2
4350104
ADAPTOR, A/C and Heater Unit to Plenum
- Require Quantity: 2

3
3780508
HOSE, A/C Vacuum
HOSE, A/C Vacuum Ext., 1/8" (Serv in Roll)
$35.85 $26.71
1
Add To Cart
3
4105167
HOSE, A/C Vacuum
- HOSE, A/C Vacuum Ext., 3/16" (Serv in Roll)
3
4361025
HOSE, A/C Vacuum
- HOSE, A/C Vacuum

4
3847721
SEAL, A/C Evap. Hsg. Cover Mtg.

5
3848418
HOUSING, w/STUD, A/C Evap. Scroll

6
4350105
BRACE, A/C Unit Mtg. to Plenum Support

7
3849235
RESISTOR, A/C

8
3849575
MOTOR, A/C Blower

9
3847476
SEAL, A/C Blower Motor Mounting

10
5210066
TUBE, A/C Blower Motor

11
3847116
SEAL, A/C Evap. Coil Header End

12
3846836
GASKET, A/C Evap. Valve Mtg.
$5.00 $3.41
1
Add To Cart

13
4339423
COIL, A/C Evap. Compelete

14
5210234
WHEEL, A/C Blower Motor

15

2837680
CLAMP, A/C Blower Wheel Motor Mtg.
$2.35 $1.31
1
Add To Cart

16
6500376
NUT, A/C Blower Motor J Type

17
6031694
SCREW, w/WASHER, A/C Blower Motor Mtg.
$3.20 $2.19
1
Add To Cart

18
5210111
ACTUATOR, A/C Recirc Door

19
5210056
DOOR, w/SEAL, A/C Recirc.

20
5210070
HOUSING, A/C Recirc.

21
3847943
CORE, A/C Heater
$245.68 $193.07
1
Add To Cart

22
5210109
SEAL, A/C Unit to Dash at Core Tubes

23
3848093
SEAL, A/C Heater Core

24
0219462
NUT, Door Shaft Lever

25
3847858
LEVER, Mode Door Shaft

26
3849511
DOOR, w/SEAL, A/C Mode

27
0219462
NUT, Door Shaft Lever

28
5210113
LEVER, A/C Temp. Door

29
4361028
DOOR, A/C Temp. Molded

30
3847602
SEAL, A/C Unit to Dash at Coil Header

31
5210073
SEAL, A/C Evap. Coil to Hsg.
- Require Quantity: 2

32
3847849
ACTUATOR, A/C Mode Door Vacuum

33
5210068
ACTUATOR, A/C Heater and Defr. Door Vacuum

34
2521336
CLIP, A/C Evap. Hsg. Cover Mtg.
- Require Quantity: 2

35
3847606
SEAL, A/C Unit to Defr. Duct

36
6015778
CLIP, A/C Vacuum Hose Retaining

37
3848827
TUBE, A/C Unit Drain

38
5210093
DOOR, w/SHAFT, A/C Heater Defr.

39
4361084
ELBOW, A/C Unit Drain

40
0219462
NUT, A/C Unit to Dash Mounting

41
5210336
SEAL, A/C Ctr. Air Distr. Duct

2465756
CLAMP, A/C Unit Drain Elbow

2837876
CONNECTOR, Vacuum Hose

6031147
NUT, A/C Defr. Actr. Rod Retaining
$1.55 $1.02
1
Add To Cart

116000
NUT, A/C Unit Recirc. Dr. Actr. Mtg.
- Require Quantity: 2
- Package Quantity: 1

3848841
SEAL, A/C Evap. Coil to Hsg. Hair Pin End

3847720
SEAL, A/C Evap. Hsg. Cover Ctr.

3847681
SEAL, A/C Heater Core End

3847853
SPRING, A/C. Unit Mode Door

3848827
TUBE, A/C Unit Drain

3441609
VALVE, A/C Two Port Check (Vac. Hose)

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1987 Dodge Dakota parts. Parts like Air Conditioner & Heater Unit are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 6 Cyl 3.9L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
