2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

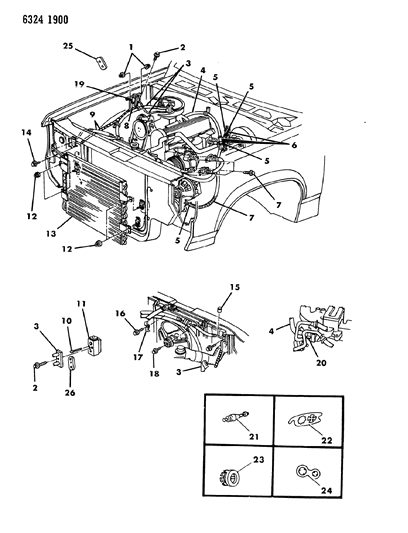

- 1.HEATER AND AIR CONDITIONING PLUMBIMG, AIR CONDITIONING AND HEATER N MODEL - 2.2L ENGINE

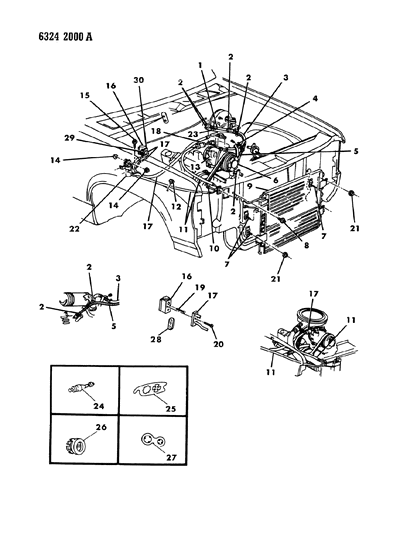

- 2.HEATER AND AIR CONDITIONING PLUMBIMG, AIR CONDITIONING AND HEATER N MODEL - 3.9L ENGINE
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 11315466
HOSE, 5/8" I.D. (Serv in Roll)
- 1
- 2
- 3
- 34217027
LINE, Suction and Liquid
- 44432319
HOSE, A/C, Heater Intake Manifold (Preformed)
- 4
- 5
- 51315466
HOSE, 5/8" I.D. (Serv in Roll)
- 64339455
COMPRESSOR, A/C- COMPRESSOR, A/C
- 6
- 63848729
VALVE, A/C, Heater Water (4 Port)
- 7
6030223
BOLT, Snap In- Require Quantity: 4
- 71315466
HOSE, 5/8" I.D. (Serv in Roll)
- 83848217
DRIER, w/BRACKET, Filter
- 94216992
CONDENSER, A/C Compelete
- 94217028
LINE, Discharge and Liquid
- 10
6032572
SCREW, A/C Expansion Valve Mounting- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 6036623AA
- 106500827
SCREW, w/WASHER, Discharge Liquid Line Mtg. to Cond.
- 114432218
LINE, Discharge and Liquid
- 113849240
VALVE, A/C Expansion
- 126031044
CAP, Frt. Fender Splash Shield Hole
- 126025004
NUT, w/WASHER
- 134216992
CONDENSER
- 131779258
NIPPLE, A/C, Heater Hose Engine
- 14
- 153848585
CAP, Discharge Check Valve
- 159423951
SCREW, A/C Suction Line Mounting
- 166032473
SCREW, A/C Line Mtg. Brkt. to Shroud
- 163849240
VALVE, A/C Expansion
- 174361036
BRACKET, A/C Suction and Discharge Line to Shroud
- 17
- 183848585
CAP, A/C Discharge and Liquid Line Check Valve
- 186032473
SCREW, A/C Discharge Muffler to Shroud
- 196032572
SCREW, A/C Expansion Valve Mounting- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 6036623AA
- 193849406
SWITCH, A/C Damped Cycling Pressure with O Ring
- 200153640
CLAMP
- 206500827
SCREW, w/WASHER, A/C Suction and Liquid Line Mounting to H-Valve
- 216025004
NUT, w/WASHER- Require Quantity: 4
- 213849468
VALVE, Suction and Discharge Check
- 223848217
DRIER, w/BRACKET, Filter
- 223847081
GASKET, Suction and Disharge Line Mtg. to Comp.
- 23
- 233847147
PILOT
- 24$5.00 $3.411
- 243849468
VALVE, A/C Discharge, Suction Line Check
- 253847083
GASKET, A/C Liq. Line Mtg. to Drier
- 253847081
GASKET, A/C Suction, Discharge Line Mtg. to Comp.
- 263846834
GASKET, A/C Suction Liquid Line Mtg. to H-Valve
- 263847147
PILOT- Require Quantity: 2
- 27$5.00 $3.411
- 283846834
GASKET, A/C Suction Liquid Line Mtg. to H-Valve
- 293849406
SWITCH, A/C Damped Cycling Pressure with O Ring
- 303847083
GASKET, A/C Liquid Line Mtg. to Drier
- 0181561
BRACKET, A/C Suction Line Support - 4217000
BRACKET, A/C Suction Line Support
- 3848208
PILOT and GASKET PACKAGE, A/C Expansion Valve
- 3848208
PILOT and GASKET PACKAGE, Expansion Valve
- 4240422
VALVE, A/C Heater Water
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1987 Dodge Dakota parts. Parts like Plumbing - A/C & Heater are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 6 Cyl 3.9L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
