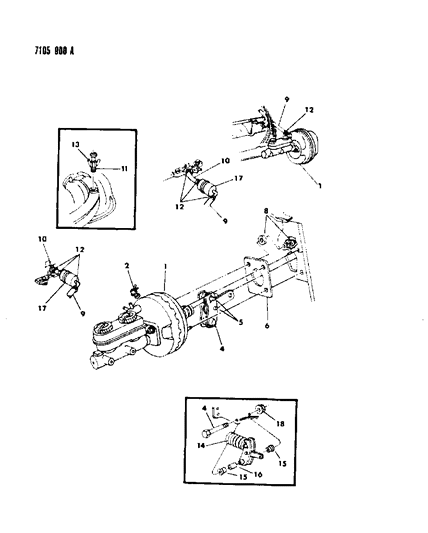

Diagram (1 of 1): BRAKES, SERVICE BOOSTER, POWER BRAKE (M BODY)
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
2
3420973
VALVE and GROMMET PACKAGE, Vac. Check (Bendix)
4
6028165
BOLT, Brake Booster Lever Hub
6
9
10
4267340HOSE, Filter to Carb.
4026117CONNECTOR, 4 Way, w/Caps 11
4210580CONNECTOR, 4 Way, w/Caps
13
14
3766073
BOOT, Push Rod (Bendix)
16
2534227
SLEEVE, Brake Booster Lever Hub
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1987
Dodge Diplomat parts. Parts like Booster, Power Brake are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: Automatic Transmission.
