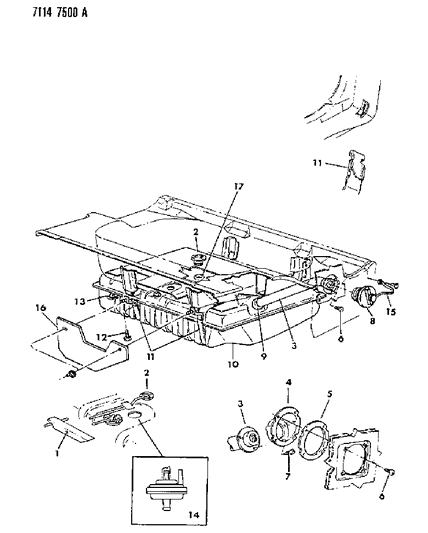

Diagram (1 of 1): FUEL FUEL TANK AND FUEL FILLER TUBES M BODY
1987 Dodge Diplomat Fuel Tank & Fuel Filler Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    4002974
    SHIELD, Fuel Tank to Floor Pan Splash
  • 2
    Dodge 4002252
    4002252
    VALVE, Rollover
  • 3
    4185312
    TUBE, Fuel Tank Filler
    • Leaded Gas
  • 3
    4279429
    TUBE, Fuel Tank Filler
    • Unleaded Gas
  • 4
    4185019
    HOUSING, Filler Tube
  • 5
    4185037
    GASKET, Filler Tube to Wheel House Panel
  • 7
    9414722
    SCREW, Housing to Filler Tube
    • Require Quantity: 3
  • 8
    4279839
    CAP, Filler Tube
  • 10
    4279479
    TANK, Fuel
  • 11
    4185452
    STRAP, Fuel Tank Mounting
    • Right
  • 11
    4185453
    STRAP, Fuel Tank Mounting
    • Left
  • 12
    6031706
    BOLT
    • Require Quantity: 2
  • 14
    4185414
    VALVE, Fuel Tank Vent By - Pass
  • 16
    4185449
    SHIELD
  • 17
    Dodge 4002149
    4002149
    GROMMET, Rollover Valve
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1987 Dodge Diplomat parts. Parts like Fuel Tank & Fuel Filler are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: Automatic Transmission.
