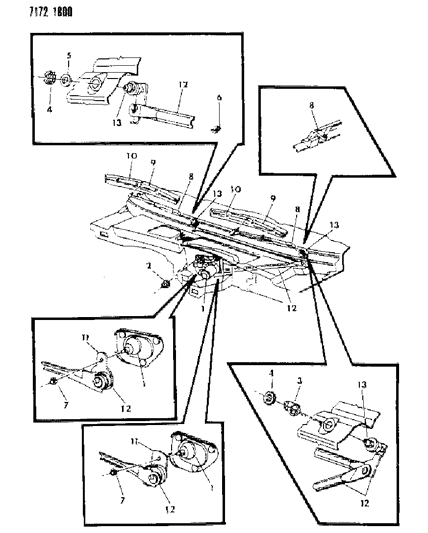

Diagram (1 of 1): WIPER - WASHER AND CYLINDER & KEYS WINDSHIELD WIPER SYSTEM M BODY

1987 Dodge Diplomat Windshield Wiper System Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4048579
MOTOR, Wiper
BRACKET, Intermittent Wipe Control
1
4222060
MOTOR, Wiper
- CONTROL, Intermittent Wipe
1
4270813
MOTOR, Wiper
- COVER, Motor Gearbox
1
4270855
MOTOR, Wiper
- SEAL, Motor Mtg.
1
4270869
MOTOR, Wiper
- COVER, Motor Terminal
1
4339447
MOTOR, Wiper
- BRACKET, Motor Mtg.
1
4339449
MOTOR, Wiper
- MOTOR, Wiper
1
4339452
MOTOR, Wiper
- GROMMET and SPACER PACKAGE, Motor Mtg.
1
4342226
MOTOR, Wiper
- SUPPRESSOR, Motor Radio Noise
1
R0810006
MOTOR, Wiper
- REMAN, Door, REMAN ENGINES - Mopar Remanufactured Part

2
6025413
NUT, Motor Mtg.
- Require Quantity: 2

3
3799827
PLATE, Pivot Mtg., Left

4
5211098
NUT, Pivot Mtg.
- Require Quantity: 2

5
5211099
WASHER, Pivot Mtg.

6
3799089
BUSHING, Wiper Linkage
- Require Quantity: 4
- Package Quantity: 1
$11.30 $7.80
1
Add To Cart

7

6031096
NUT, Crank Mtg.

8
3799862
ARM, Wiper, Right
ARM, Wiper, Right
8
3799863
ARM, Wiper, Right
- ARM, Wiper, Left

9
3799828
BLADE and REFILL, Wiper
- Require Quantity: 2

10
3799685
REFILL, Wiper Blade
- Require Quantity: 2

11
3799105
CRANK and PIN, Drive

12
3799101
LINK, Wiper
Pivot Connecting
12
4334106
LINK, Wiper
- Wiper Drive
$25.17 $19.78
1
Add To Cart

13
3799479
PIVOT, Wiper
Left
13
4026046
PIVOT, Wiper
- Right

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1987 Dodge Diplomat parts. Parts like Windshield Wiper System are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: Automatic Transmission.
