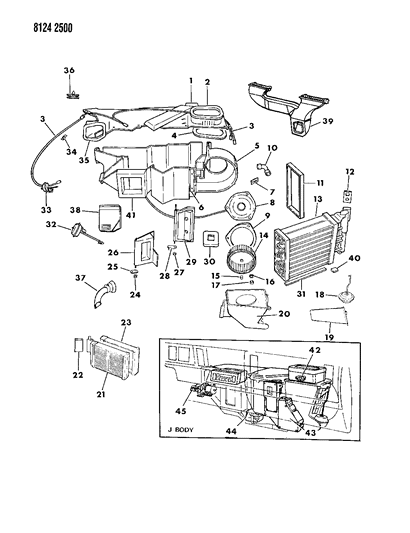

Diagram (1 of 1): HEATER AND AIR CONDITIONING AIR CONDITIONING AND HEATER UNIT J,G BODY
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 12521336
COVER, A/C. Evap. Housing- CLIP, Evaporator Housing, Cover Mounting
- Require Quantity: 2
- 13849412
COVER, A/C. Evap. Housing- COVER, A/C. Evap. Housing
- 13849418
COVER, A/C. Evap. Housing- COVER, A/C. Evap. Housing with ATC
- Fitting Vehicle Options: J
- 23849552
SEAL, A/C. Evap. Hsg. Cvr. (to Plenum)
- 32837876
HOSE and CONNECTOR, A/C Vacuum- CONNECTOR, Vac. Hose
- 33441609
HOSE and CONNECTOR, A/C Vacuum- VALVE, A/C. Two Port Check (Vac. Hose)
- 3$35.85 $26.711
- 33849126
HOSE and CONNECTOR, A/C Vacuum- HOSE and CONNECTOR, A/C Vacuum
- 3$6.65 $4.501
- 43847721
SEAL, A/C. Evap. Hsg. Cvr. Mtg. Rt.- SEAL, A/C. Evap. Cover Mtg. Left
- 43848841
SEAL, A/C. Evap. Hsg. Cvr. Mtg. Rt.- SEAL, A/C. Evap. Coil to Hsg. Hair Pin End
- 43849547
SEAL, A/C. Evap. Hsg. Cvr. Mtg. Rt.- SEAL, A/C. Evap. Hsg. Mtg. Ctr.
- 43849548
SEAL, A/C. Evap. Hsg. Cvr. Mtg. Rt.- SEAL, A/C. Evap. Hsg. Cvr. Mtg. Rt.
- 53849408
HOUSING, w/Stud Pkg. A/C. Evap.- HOUSING, w/Stud Pkg. A/C. Evap.
- 53849425
HOUSING, w/Stud Pkg. A/C. Evap.- HOUSING, w/Stud Pkg. A/C. Evap. with ATC
- Fitting Vehicle Options: J
- 63848238
BRACE, A/C. Unit Mtg. to Plenum Support
- 73849567
RESISTOR, A/C. Blower Motor
- 84266419
MOTOR, A/C. Blower- INSULATOR, A/C. Blower
- 84430170
MOTOR, A/C. Blower- CAPACITOR, A/C Blower Motor
- 84443132
MOTOR, A/C. Blower- MOTOR, A/C. Blower
- 8R4443132
MOTOR, A/C. Blower- MOTOR, Heater Blower
- 9
- 10
- 113847116
SEAL, A/C. Evap. Coil Header End
- 12$5.00 $3.411
- 134339423
COIL, A/C. Evap. Complete
- 143849414
WHEEL, A/C. Blower Motor
- 15
$2.35 $1.311
- 16
6031694
NUT, A/C. Blower Mtr. J Type- SCREW and WASHER, A/C., Blower Mtr. Mtg.
- Require Quantity: 3
- Package Quantity: 1
$3.20 $2.191 - 166500376
NUT, A/C. Blower Mtr. J Type- NUT, A/C. Blower Mtr. J Type
- 17$3.20 $2.191
- 18116000
ACTUATOR, A/C. Recirc. & Fresh Air Door- NUT, A/C., Recirc. Door Actr. Mtg.
- Require Quantity: 2
- Package Quantity: 1
- 18
- 195210056
DOOR, w/Seal A/C. Recirc. & Fresh Air
- 203849410
HOUSING, A/C. Recirc.- HOUSING, A/C. Recirc.
- 203849566
HOUSING, A/C. Recirc.- SEAL, A/C Recirc. Housing Mounting
- 213849741
CORE, A/C., Heater
- 223847681
SEAL, A/C. Unit to Dash at Core Tubes- SEAL, A/C., Htr. Core End
- 22
5210109
SEAL, A/C. Unit to Dash at Core Tubes- SEAL, A/C. Unit to Dash at Core Tubes
- 23
3848093
SEAL, A/C., Htr. Core
- 24
219462
NUT, Door Shaft Lever
- 25
3847858
LEVER, Mode Door Shaft
- 263849511
DOOR, w/Seal A/C. Mode
- 27219462
NUT, Door Shaft Lever
- 28
- 28219462
LEVER, A/C. Blend Air Door- NUT, w/Washer A/c. Blend Air Door Lever Mtg.
- 286006324
LEVER, A/C. Blend Air Door- NUT, Spring Push-on
- 29
$66.60 $52.331
- 303847602
SEAL, A/C. Unit to Dash at Coil Header
- 315210073
SEAL, A/C. Evap. Coil to Hsg. Bottom- Require Quantity: 2
- 323847849
ACTUATOR, A/C. Mode Door
- 33
$1.55 $1.021 - 33
- 342521336
CLIP, A/C. Evap. Hsg. Cover Mtg.- Require Quantity: 2
- 353847606
SEAL, A/C. Evap. Hsg. Cover Defroster Duct
- 366015778
CLIP, A/C. Vac. Hose Retaining
- 373848827
TUBE, A/C. Unit Drain
- 385210093
DOOR, & Shaft A/C. Htr. Defroster
- 393848067
DUCT, Defroster
- 404192019
BUMPER, A/C. Condenser
- 413849551
SEAL, A/C. Ctr. Air Distr. Duct- SEAL, A/C Mounting Stud Silencer (to Dash)
- Require Quantity: 4
- 415210336
SEAL, A/C. Ctr. Air Distr. Duct- SEAL, A/C. Ctr. Air Distr. Duct
- 423849924
SENSOR, ATC Ambient
- 43
- 44
- 453848778
SENSOR, ATC in Car (Complete) with Seat Belts- CAP, ATC Blend Air Door Shaft
- Fitting Vehicle Options: J
- 453849553
SENSOR, ATC in Car (Complete) with Seat Belts- with Air Bags, with Active Passive Restraint System
- 453849618
SENSOR, ATC in Car (Complete) with Seat Belts- SENSOR, ATC in Car (Complete) with Seat Belts
- Fitting Vehicle Options: J
- 454414447
SENSOR, ATC in Car (Complete) with Seat Belts- BRACKET, ATC Insl. Mounting (Harness)
- Fitting Vehicle Options: J
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1988 Chrysler LeBaron Premium parts. Parts like Air Conditioning & Heater Unit are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
