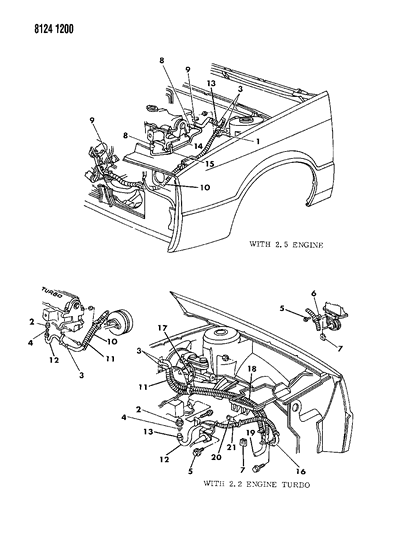

Diagram (1 of 1): HEATER AND AIR CONDITIONING PLUMBING, HEATER J BODY

1988 Chrysler LeBaron Plumbing - Heater Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
3849709
CLIP, Htr. Hose Mtg. w/2.5 Engine

2
6032290
CONNECTOR, Inverted Thermostat Water By Pass

3
2448770
CLAMP
- Replaced By: 53041045
$13.65 $9.15
1
Add To Cart

4
3848948
WASHER, Htr. Tube Flare

5

6100288
SCREW and WASHER, Htr. Hose Clip Mtg.

6
3849709
CLIP, Htr. Hose Mtg. w/2.5 Engine

7
6500681
J-NUT, Htr. Hose Clip Mtg.

8
153640
CLAMP, Thermo, Hose

9
153640
CLAMP,

10
3849303
HOSE, Heater Core to Pump

11
4462089
HOSE, Htr. Tube to Core

12
3849922
TUBE, Htr. Engine to Hose

13
3849334
HOSE, Heater Engine to Core

14
4273486
TUBE, Thermostat Water By-Pass
TUBE, Thermostat Water By-Pass
$39.17 $30.79
1
Add To Cart
14
4273488
TUBE, Thermostat Water By-Pass
- HOSE, Water By-Pass Tube
$9.50 $7.47
1
Add To Cart

15
4273487
BRACKET, Water By-Pass

16
4462093
TUBE, Htr. 4 Port, up to 1-4-88
TUBE, Htr. 4 Port, up to 1-4-88
16
4462401
TUBE, Htr. 4 Port, up to 1-4-88
- after 1-4-88

17
4462083
BRACKET, Htr. Hose Clip Mtg.

18
4462087
HOSE, Htr. Core to Tube

19
4462084
HOSE, Sleeve Heater Valve to Pump

20
3849601
BRACKET, Htr. Hose Mounting
BRACKET, Htr. Hose Mounting
20
4462378
BRACKET, Htr. Hose Mounting
- BRACKET, Htr. Hose Retaining, after 1-8-88

21
1315466
HOSE, Htr. Tube to Tube, 5/8" I.D. 50 Ft. Roll

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1988 Chrysler LeBaron Premium parts. Parts like Plumbing - Heater are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
