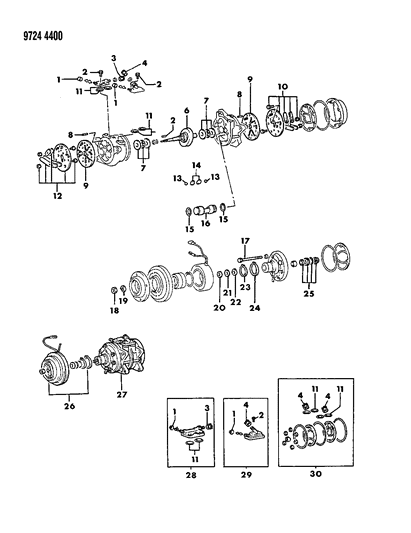

Diagram (1 of 1): HEATER AND AIR CONDITIONING COMPRESSOR AIR CONDITIONER 24 RWD - CONQUEST
1989 Chrysler Conquest Air Conditioner Compressor Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    MB276507
    CAP, Valve
    • Require Quantity: 2
  • 2
    MB239599
    BOLT
    • Require Quantity: 4
  • 3
    MB276077
    CAP, Suction Side
  • 4
    MB276078
    CAP, Discharge Side
  • 5
    MB239603
    KEY, (L=20mm)
  • 6
    MB239602
    SHAFT, Main
  • 7
    MB239601
    BEARING, Thrust
    • Require Quantity: 2
  • 8
    MB239604
    PIN, Straight
    • Require Quantity: 4
  • 9
    MB239611
    REED, Suction Valve
  • 10
    MB239610
    PLATE, Valve Rear Side
  • 11
    MB239600
    O-RING
    • Require Quantity: 4
  • 12
    MB239609
    PLATE, Valve Front Side
  • 13
    MB239605
    BALL, Piston
    • Require Quantity: 6
  • 14
    MB239984
    SHOE SET
  • 15
    MB239984
    SHOE SET
    • Require Quantity: 6
  • 16
    MB239606
    PISTON
    • Require Quantity: 3
  • 17
    MB239608
    BOLT
    • Require Quantity: 6
  • 18
    MB239625
    NUT
  • 19
    MB239626
    WASHER, Spring
  • 20
    MB239624
    WASHER, Plate, T=0.5
  • 21
    MB239623
    WASHER, Plate, T=0.2
  • 22
    MB239622
    WASHER, Plate, T=0.1
  • 24
    MB239620
    RING, Snap
  • 25
    MB239607
    SEAL, Shaft
  • 26
    MB239612
    CLUTCH, Magnet
  • 27
    MB276505
    COMPRESSOR
  • 28
    MB276058
    VALVE SET, Suction
  • 29
    MB276506
    VALVE SET, Discharge
  • 30
    MB276079
    OVERHAUL PACKAGE
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1989 Chrysler Conquest parts. Parts like Air Conditioner Compressor are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.3L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
