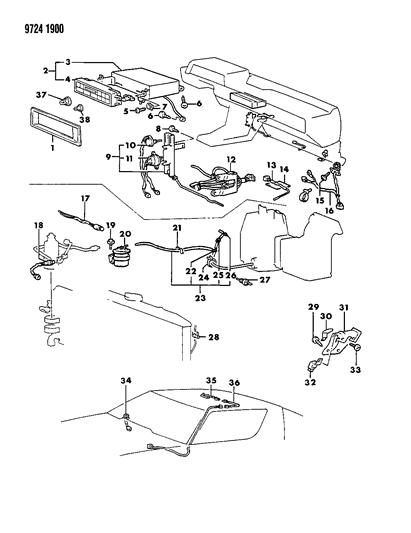

Diagram (1 of 1): HEATER AND AIR CONDITIONING CONTROLS, HEATER AND AIR CONDITIONING 24 RWD - CONQUEST

1989 Chrysler Conquest Controls, Heater And Air Conditioning Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
MB332780
BEZEL, Heater Control

2
MB568261
UNIT, Electronic Control

3
MB276643
CONTROLLER, A/C

4
MB276744
PANEL, Control

5
MF453017
SCREW, Tapping (4x12mm)
- Require Quantity: 4
- Package Quantity: 1
- Replaced By: MB189330

6
MF453031
SCREW, Tapping (5x12mm)
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: MS450156
$5.75 $3.98
1
Add To Cart

7
MB379659
NUT, Spring
- Require Quantity: 4

8
MF453030
SCREW, Tapping (5x10mm)
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: MS450156
$5.75 $3.98
1
Add To Cart

9
MB380286
SERVO, Power Motor

10
MB379698
RESISTOR, Variable

11
MB276495
MOTOR, DC

12
MB380287
VALVE, Vacuum

13
MB272982
SENSOR, Fan

14
MB305773
INSULATOR, Rubber

15
MF455379
SCREW, Tapping (4x16mm)
- Require Quantity: 2

16
MB438923
TRANSISTOR, Fan Control

17
MB438161
SWITCH, Pressure, 5 Speed

18
MB438164
SWITCH, Pressure (Dual), All Trans. (This is a Two Prong Switch But Comes With a New Harness)

19
MS240021
BOLT and WASHER (6x16mm)
- Require Quantity: 2
- Package Quantity: 1

20
MB379897
TANK, Vacuum

21
MD001852
CLAMP, Hose

22
MD001865
TERMINAL, Vacuum
- Require Quantity: 2
- Package Quantity: 1

23
MB380294
HOSE

24
MD005473
BAND, Cable

25
MB188950
VALVE, Vacuum Check

26
MD001865
TERMINAL, Vacuum
- Require Quantity: 2
- Package Quantity: 1

27
MB272705
SWITCH, Water Temperature

28
MS470058
CLIP (60mm)
- Replaced By: MS470057

29

MS450156
SCREW, Tapping (5x12mm)
$5.75 $3.98
1
Add To Cart

30
MS470312
CLIP (40mm)

31
MB435747
BRACKET, Relay

32
MB332453
RELAY, Power, Magnetic Clutch, Condensor Fan Motor

33
MS350165
SCREW and WASHER (5x16mm)
- Require Quantity: 2

34
MB167514
SENSOR, Photo

35
MB452905
SENSOR, In Car
Black
35
MB452906
SENSOR, In Car
- Red

36
MB379646
HARNESS, Joint (A)

37
MB272718
BULB (14v-1.4w)
- Require Quantity: 2

38
MB568582
BULB, Lamp
- Require Quantity: 11

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1989 Chrysler Conquest parts. Parts like Controls, Heater And Air Conditioning are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.3L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
