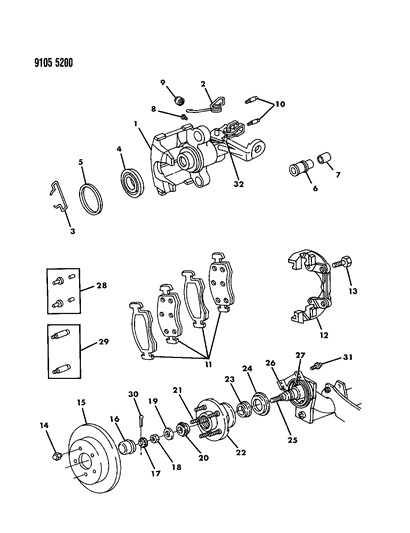

Diagram (1 of 1): BRAKES, SERVICE BRAKES, REAR DISC Q BODY

1989 Chrysler TC Maserati Brakes, Rear Disc Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4313716
HOUSING, Rear Wheel Disc Brake, Partial, Teves, Right
HOUSING, Rear Wheel Disc Brake, Partial, Teves, Right
1
4313717
HOUSING, Rear Wheel Disc Brake, Partial, Teves, Right
- HOUSING, Rear Wheel Disc Brake, Partial, Teves, Left

2
4313724
SPRING, Disc Brake Lever Return, Right
SPRING, Disc Brake Lever Return, Right
2
4313725
SPRING, Disc Brake Lever Return, Right
- SPRING, Disc Brake Lever Return, Left

3
4313722
CLIP, Disc Brake Hsg. Anti Rattle
- Require Quantity: 2

4
4313723
BOOT, Disc Brake Piston
- Require Quantity: 2

5
4313726
RING, Disc Brake Piston Boot
- Require Quantity: 2

8
4126879
SCREW, Bleeder
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 4126879AB

9
4126733
CAP, Bleeder
- Require Quantity: 2
- Package Quantity: 1
$9.25 $6.19
1
Add To Cart

11
4313838
SHOE and LINING PACKAGE, Rear Wheel Disc Brake

12
4313720
ADAPTER, Rear Wheel Disc Brake
- Require Quantity: 2

13
6500158
SCREW and WASHER
- Require Quantity: 4
- Package Quantity: 1

14
6500294
NUT, Chrome

15
4383346
DISC, Rear Wheel Brake
- Require Quantity: 2

16
3580894
CAP, Grease
- Require Quantity: 2
- Package Quantity: 1

17
1673324
LOCK, Bearing Nut
- Require Quantity: 2
- Package Quantity: 1
$5.42 $4.26
1
Add To Cart

18
6029692
NUT, Bearing Adjuster
- Require Quantity: 2
- Package Quantity: 1
$9.84 $7.73
1
Add To Cart

19
600194
WASHER, Bearing Thrust
- Require Quantity: 2
- Package Quantity: 1

20
3683974
BEARING PACKAGE, Outer
- Require Quantity: 2
- Package Quantity: 1
$28.92 $22.73
1
Add To Cart

21
6501512
STUD, Wheel

22
4383983
HUB, Rear Wheel Disc Brake
- Require Quantity: 2

23
4238567
CONE, CUP and BEARING PACKAGE, Inner
- Require Quantity: 2
- Package Quantity: 1
$64.68 $50.83
1
Add To Cart

24
4238570
SEAL, Dust
- Require Quantity: 2
- Package Quantity: 1
$10.42 $8.19
1
Add To Cart

26
4463978
SUPPORT, Rear Wheel Disc Brake, Right
SUPPORT, Rear Wheel Disc Brake, Right
26
4463979
SUPPORT, Rear Wheel Disc Brake, Right
- SUPPORT, Rear Wheel Disc Brake, Left

27
4238853
BOLT, Rear Suspension Spindle Mtg.
GASKET
Require Quantity: 2
Package Quantity: 1
27
6500844
BOLT, Rear Suspension Spindle Mtg.
- BOLT, Rear Suspension Spindle Mtg.
- Require Quantity: 8

28
4205982
BUSHING and SLEEVE PACKAGE
- Require Quantity: 2
- Package Quantity: 1

29
4267329
PIN PACKAGE, Rear Wheel Disc Brake Hsg. Locating
- Require Quantity: 2

31
6501267
SCREW and WASHER
- Require Quantity: 4

32
4383198
PIN, Rear Wheel Disc Brake Stop Roll
- Require Quantity: 2

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1989 Chrysler TC Maserati parts. Parts like Brakes, Rear Disc are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.4L. Transmission: 3-Speed Automatic Transmission, 5-Speed Manual Transmission.
