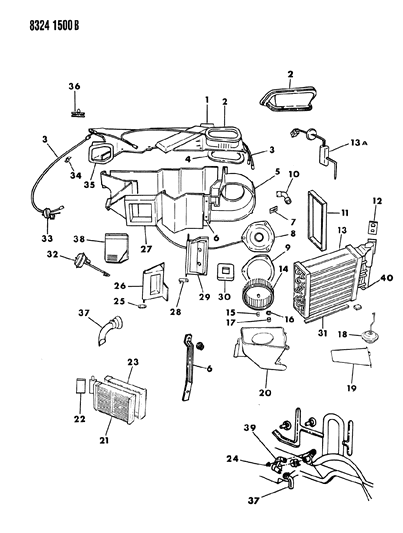

Diagram (1 of 1): HEATER AND AIR CONDITIONING AIR CONDITIONER AND HEATER UNIT N MODELS
1989 Dodge Dakota Air Conditioner & Heater Unit Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    4361026
    COVER, A/C Evap. Hsg. (1988)
    • COVER, A/C Evap. Hsg. (1988)
  • 1
    4482074
    COVER, A/C Evap. Hsg. (1988)
    • (1989)
  • 2
    4350104
    ADAPTOR, A/C and Heater Unit to Plenum
    • Require Quantity: 2
  • 3
    3780508
    HOSE, A/C Vacuum Harness
    • HOSE, A/C Vacuum Ext., 1/8" (Serv in Roll)
    $35.85 $26.71
    1
    Add To Cart
  • 3
    4105167
    HOSE, A/C Vacuum Harness
    • HOSE, A/C Vacuum Ext., 3/16" (Serv in Roll)
  • 3
    4361025
    HOSE, A/C Vacuum Harness
    • HOSE, A/C Vacuum Harness
  • 4
    3847721
    SEAL, A/C Evap. Hsg. Cover Mtg., Left
    • SEAL, A/C Evap. Hsg. Cover Mtg., Left
  • 4
    3847722
    SEAL, A/C Evap. Hsg. Cover Mtg., Left
    • SEAL, A/C Evap. Hsg. Cover Mtg., Right
  • 5
    3848418
    HOUSING, w/STUD, A/C Evap. Scroll (1988)
    • HOUSING, w/STUD, A/C Evap. Scroll (1988)
  • 5
    4462282
    HOUSING, w/STUD, A/C Evap. Scroll (1988)
    • (1989)
  • 5
    6033733
    HOUSING, w/STUD, A/C Evap. Scroll (1988)
    • STUD, Heater Housing (1989)
  • 6
    4350105
    BRACE, A/C Unit Mtg. to Plenum Support
  • 7
    Dodge 4462841
    Dodge 4462841
    Dodge 4462841
    Dodge 4462841
    $7.92 $6.22
    1
    Add To Cart
  • 7
    3849235
    RESISTOR, A/C (1988)
    • RESISTOR, A/C (1988)
  • 7
    3849567
    RESISTOR, A/C (1988)
    • (1989) up to 2-15-89
  • 8
    4443132
    MOTOR, A/C Blower
    • MOTOR, A/C Blower
  • 8
    R4443132
    MOTOR, A/C Blower
    • MOTOR, Heater Blower
  • 11
    3847116
    SEAL, A/C Evap. Coil Header End
  • 13
    4339423
    COIL, A/C Evap. Compelete, w/Cycling Switch
  • 13A
    4462247
    SWITCH, A/C Electric Cycling Clutch
  • 14
    3849414
    WHEEL, A/C Blower Motor (1988)
    • (1989)
  • 14
    5210234
    WHEEL, A/C Blower Motor (1988)
    • WHEEL, A/C Blower Motor (1988)
  • 16
    6500376
    NUT, A/C Blower Motor J Type
  • 19
    5210056
    DOOR, w/SEAL, A/C Recirc.
  • 20
    3849410
    HOUSING, A/C Recirc. (1988)
    • (1989)
  • 20
    5210070
    HOUSING, A/C Recirc. (1988)
    • HOUSING, A/C Recirc. (1988)
  • 22
    Dodge 5210109
    5210109
    SEAL, A/C Unit to Dash at Core Tubes
  • 23
    Dodge 3848093
    3848093
    SEAL, A/C Heater Core
  • 24
    Dodge 219462
    219462
    NUT, A/C Unit to Dash Mounting
  • 25
    Dodge 3847858
    3847858
    LEVER, Mode Door Shaft
  • 26
    3849511
    DOOR, w/SEAL, A/C Mode (1988)
    • DOOR, w/SEAL, A/C Mode (1988)
  • 26
    4462526
    DOOR, w/SEAL, A/C Mode (1988)
    • (1989)
  • 27
    5210073
    SEAL, A/C Unit Evap Coil to Hsg.
  • 29
    4361028
    DOOR, A/C Temp. Molded
  • 30
    3847602
    SEAL, A/C Unit to Dash at Coil Header
  • 31
    5210073
    SEAL, A/C Evap. Coil to Hsg.
    • Require Quantity: 2
  • 32
    3847849
    ACTUATOR, A/C Mode Door Vacuum (1988)
    • ACTUATOR, A/C Mode Door Vacuum (1988)
  • 32
    4462918
    ACTUATOR, A/C Mode Door Vacuum (1988)
    • (1989)
  • 34
    2521336
    CLIP, A/C Evap. Hsg. Cover Mtg.
    • Require Quantity: 2
  • 35
    3847606
    SEAL, A/C Unit to Defr. Duct
  • 36
    6015778
    CLIP, A/C Vacuum Hose Retaining
  • 37
    2465756
    TUBE, A/C Unit Drain
    • CLAMP, A/C Unit Drain Elbow
  • 37
    3848827
    TUBE, A/C Unit Drain
    • TUBE, A/C Unit Drain
  • 38
    5210093
    DOOR, w/SHAFT, A/C Heater Defr.
  • 39
    4361084
    ELBOW, A/C Unit Drain
  • 40
    Dodge 0219462
    0219462
    NUT, A/C Unit to Dash Mounting
  • 40
    5210073
    SEAL, A/C Unit Evap. Coil to Housing
  • 41
    5210336
    SEAL, A/C Ctr. Air Distr. Duct
  • 2837876
    CONNECTOR, Vacuum Hose
  • 3848841
    SEAL, A/C Evap. Coil to Hsg. Hair Pin End
  • 3847720
    SEAL, A/C Evap. Hsg. Cover Ctr.
  • 3847681
    SEAL, A/C Heater Core End
  • Dodge 3847853
    3847853
    SPRING, A/C. Unit Mode Door
  • 3441609
    VALVE, A/C Two Port Check (Vac. Hose)
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1989 Dodge Dakota parts. Parts like Air Conditioner & Heater Unit are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.9L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
