Plumbing - A/C & Heater fit your 1989 Dodge Dakota
Currently shopping for
1989 Dodge Dakota
Change VehicleCategories Close X
Currently selected
Heater & Air Conditioning
Other Categories
Automatic Transmission
Body - Doors And Related Parts
Body - Sheet Metal Except Doors
Brakes, Parking
Brakes, Service
Clutch
Cooling
Electrical
Electrical - Instrument Panel And Consoles
Emission Systems
Engine
Exhaust
Frame & Bumpers
Front Suspension & Drive
Fuel
Manual Transmission
N Light Duty Pick-up
Propeller Shaft And Universal Joint
Rear Axle
Rear Suspension
Steering
Wheels
Wiper & Washers And Cylinder & Keys
Parts Questions
2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

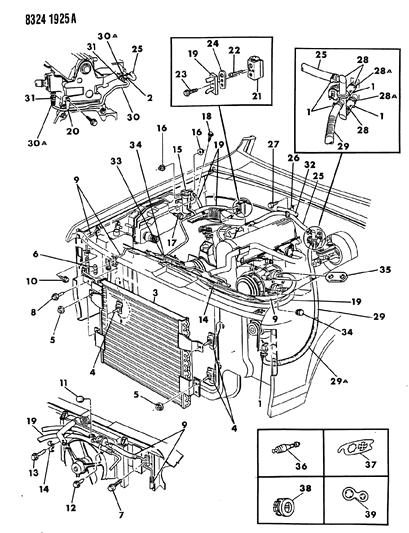

- 1.HEATER AND AIR CONDITIONING PLUMBING AIR CONDITIONING AND HEATER N BODY 2.5 LITER ENGINE 1989

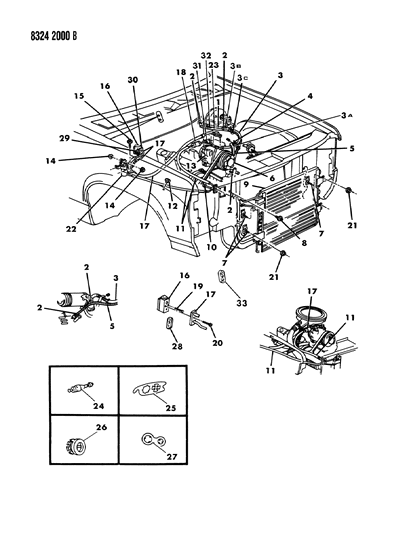

- 2.HEATER AND AIR CONDITIONING PLUMBING, AIR CONDITIONING AND HEATER N MODEL - 3.9L AND 5.2L ENGINE, SHELBY
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
$13.65 $9.151
- 11315466
HOSE, 5/8" I.D. (Serv in Roll)
- 2153640
CLAMP- CLAMP
- 34216992
CONDENSER
- 3
- 3A
- 3B4240422
VALVE, A/C Heater Water
- 3c
$0.45 $0.291
- 4
6030223
BOLT, A/C Condenser Mtg.
- 4
- 51315466
HOSE, 5/8" I.D. (Serv in Roll)
- 56025004
NUT with CONED WASHER
- 6$25.01 $19.351
- 76030223
BOLT, Snap In- Require Quantity: 4
- 7
- 94216992
CONDENSER, A/C Compelete - 94467495
CONDENSER, A/C Compelete- SPACER, A/C Cond. Line Bracket, Shelby Dakota
- 94467496
CONDENSER, A/C Compelete- BRACKET, Upper A/C Cond. Mtg., Shelby Dakota
- 94467497
CONDENSER, A/C Compelete- BRACKET, A/C Cond. Mtg. Lower, Shelby Dakota
- 94462305
LINE with VALVE, A/C Disch. and Liquid- VALVE, A/C High Pressure Relif
- 94462946
LINE with VALVE, A/C Disch. and Liquid- SEAL, A/C High Pressure Relief
- 94482446
LINE with VALVE, A/C Disch. and Liquid
- 106500827
SCREW, w/WASHER, Discharge Liquid Line Mtg. to Cond. (1988)
- 113848585
CAP, Discharge and Liquid Line Check Valve
- 114432741
LINE, Discharge and Liquid (Valve) (1988)- LINE, Discharge and Liquid (Valve) (1988)
- 114467489
LINE, Discharge and Liquid (Valve) (1988)- LINE, A/C Liquid Discharge (Shelby Dakota)
- 114482506
LINE, Discharge and Liquid (Valve) (1988)- (1989)
- 126031044
CAP, Frt. Fender Splash Shield Hole
- 126032473
SCREW, A/C Disch. Muffler to Shroud
- 131779258
NIPPLE, A/C, Heater Hose Engine
- 136032473
SCREW, A/C Line Mtg. Brkt. to Shroud
- 144361036
BRACKET, A/C Suction and Disch. Lines to Shroud
- 14
- 146033562
NUT, w/WASHER, A/C Liquid Line Mtg. to Drier (1988)
- 154217000
DRIER with BRACKET, Filter- BRACKET, A/C Suction Line Support
- 154482451
DRIER with BRACKET, Filter- DRIER with BRACKET, Filter
- 159423951
SCREW, A/C Suction Line Mounting
- 166033562
NUT with WASHER, A/C Liq. Line Mtg. to Drier- Require Quantity: 2
- 163849240
VALVE, A/C Expansion (1988)- VALVE, A/C Expansion (1988)
- 164162499
VALVE, A/C Expansion (1988)- (1989)
- 165210377
VALVE, A/C Expansion (1988)- SWITCH, A/C Pressure Cut Off
- 174432740
LINE, Suction and Liquid A/C (1988)- LINE, Suction and Liquid A/C (1988)
- 17
- 183848585
CAP, A/C Discharge and Liquid Line Check Valve
- 189423951
SCREW, A/C Suction Line Support Mtg.
- 194482253
LINE, A/C Suction and Liquid
- 19
6032572
SCREW, A/C Expansion Valve Mounting- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 6036623AA
- 204273487
BRACKET, Water By Pass
- 206500517
SCREW, w/WASHER, A/C Suction and Liquid Line Mounting to H-Valve (1988)- (1989)
- 206500827
SCREW, w/WASHER, A/C Suction and Liquid Line Mounting to H-Valve (1988)- SCREW, w/WASHER, A/C Suction and Liquid Line Mounting to H-Valve (1988)
- 216025004
NUT, w/WASHER- Require Quantity: 4
- 214162499
VALVE, A/C Expansion (H Type)
- 223848217
DRIER, w/BRACKET, Filter (1988)- DRIER, w/BRACKET, Filter (1988)
- 224217000
DRIER, w/BRACKET, Filter (1988)- BRACKET, A/C Suction Line Support
- 224482451
DRIER, w/BRACKET, Filter (1988)- (1989)
- 22
- 23
- 23
- 243846834
GASKET, A/C Suction and Liquid Line to H Valve
- 243849468
VALVE, A/C Discharge, Suction Line Check
- 253847081
GASKET, A/C Suction, Discharge Line Mtg. to Comp.
- 254432319
HOSE, Htr. Int. Manf. (Preformed)
- 263847147
PILOT- Require Quantity: 2
- 27$5.00 $3.411
- 283846834
GASKET, A/C Suction Liquid Line Mtg. to H-Valve
- 283848729
VALVE, A/C Heater Water (4 Port)
- 28A1315466
HOSE, 5/8" I.D. 50 Ft. Roll
- 29
- 293849406
SWITCH, A/C Damped Cycling Pressure with O Ring- 1988
- 294462134
SWITCH, A/C Damped Cycling Pressure with O Ring- 1989
- 29A
- 303847083
GASKET, A/C Liquid Line Mtg. to Drier
- 304343713
TUBE, Thermo Water By Pass
- 30A
$9.50 $7.471
- 31153640
CLAMP, Thermo Hose By Pass- Require Quantity: 2
- 314462305
VALVE, A/C High Pressure Relief- VALVE, A/C High Pressure Relief
- 314462946
VALVE, A/C High Pressure Relief- SEAL, High Pressure Relief
- 323848021
CAP, Compressor
- 32
- 33$25.01 $19.351
- 334462305
VALVE, A/C High Pressure Relief
- 344462946
SEAL, A/C High Pressure Relief
- 353847083
GASKET, A/C Suction Disch. Liq. Line Mtg. to Drier
- 363849468
VALVE, Suction and Disch. Check
- 373847081
GASKET, Suction Disch. Line Mtg. to Comp.
- 383847147
PILOT- PILOT
- 383848208
PILOT- PILOT, Gasket Package, A/C Expansion Valve
- 39$5.00 $3.411
- 395210377
GASKET, A/C Expansion Valve Mtg.- SWITCH, A/C Low Pressure Cut Off
- 3848208
PILOT and GASKET PACKAGE, Expansion Valve
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1989 Dodge Dakota parts. Parts like Plumbing - A/C & Heater are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.9L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
