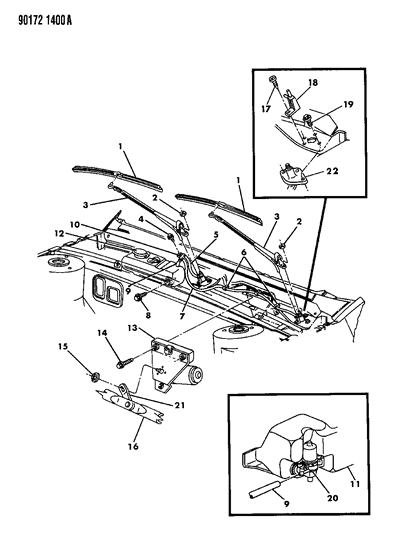

Diagram (1 of 1): WIPER - WASHER AND CYLINDER & KEYS WINDSHIELD WIPER AND WASHER SYSTEM Y BODY

1990 Chrysler Imperial Windshield Wiper & Washer System Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4389358
BLADE, Wiper
- Lower, w/Dual Washer Blade (NOZZLE, Washer)
- Require Quantity: 2
- Package Quantity: 1
$16.92 $13.30
1
Add To Cart
1
WBF00018AA
BLADE, Wiper
- Mopar Alternative Flat Wiper Blade
- Replaced By: WBF00018AB
$31.95 $21.95
1
Add To Cart
1
4334667
BLADE, Wiper
- w/o Dual Washer Nozzle
- Require Quantity: 2
1
4334803
BLADE, Wiper
- w/o Dual Washer Nozzle (REFILL, Blade)
- Require Quantity: 2
1
4334956
BLADE, Wiper
- w/o Dual Washer Blade (NOZZLE, Washer)
- Require Quantity: 2
- Package Quantity: 1
1
4389350
BLADE, Wiper
- w/Dual Washer Nozzle
- Require Quantity: 2
1
4389351
BLADE, Wiper
- w/Dual Washer Nozzle (REFILL, Blade)
- Require Quantity: 2
1
4389357
BLADE, Wiper
- Upper, w/Dual Washer Blade (NOZZLE, Washer)
- Require Quantity: 2
- Package Quantity: 1
1
WB000018AE
BLADE, Wiper
- Mopar V-Line Alternative Part
- Replaced By: 1AMWC018AA
$19.35
1
Add To Cart

2
6500165
NUT, Arm Mtg.
- Require Quantity: 2
- Package Quantity: 1

3
4389363
ARM, Wiper
- Upper, w/Dual Washer Nozzle (GUARD, Hose)
- Require Quantity: 2
- Package Quantity: 1
3
4389364
ARM, Wiper
- Lower, w/Dual Washer Nozzle (GUARD, Hose)
- Require Quantity: 2
- Package Quantity: 1
3
4334958
ARM, Wiper
- w/o Dual Washer Nozzle (GUARD, Hose)
- Require Quantity: 2
3
4389295
ARM, Wiper
- COVER, Wiper Arm
- Require Quantity: 2
- Package Quantity: 1
3
4389382
ARM, Wiper
- ARM, Wiper
- Require Quantity: 2

5
3837036
HOSE

7
3837036
HOSE

9
3780798
HOSE

10
4334274
CONNECTOR

11
4467341
RESERVOIR, Washer
- RESERVOIR, Washer
11
4270609
RESERVOIR, Washer
- SENSOR, Reservoir

12
4389110
CAP, Reservoir

13
4389131
MOTOR, w/Bracket, Wiper
- MOTOR, w/Bracket, Wiper
$335.87 $263.94
1
Add To Cart
13
4389300
MOTOR, w/Bracket, Wiper
- BRACKET, Motor
13
R4389131
MOTOR, w/Bracket, Wiper
- MOTOR, Wiper

14
6501160
SCREW, Motor Mtg.
- Require Quantity: 3

15

6031096
NUT, Crank Mtg.

16
4270976
LINK, Wiper
- Left
16
4270980
LINK, Wiper
- Right

18
4334113
CONNECTOR, Elbow
- Require Quantity: 2
- Package Quantity: 1

19
6031754
SCREW, Pivot Mtg.
- Require Quantity: 4

20
4419161
PUMP, Washer
$64.10 $50.37
1
Add To Cart

21
4270978
CRANK and PIN, Wiper Drive

22
4389387
PIVOT, Wiper
- Right
22
4389389
PIVOT, Wiper
- Left
