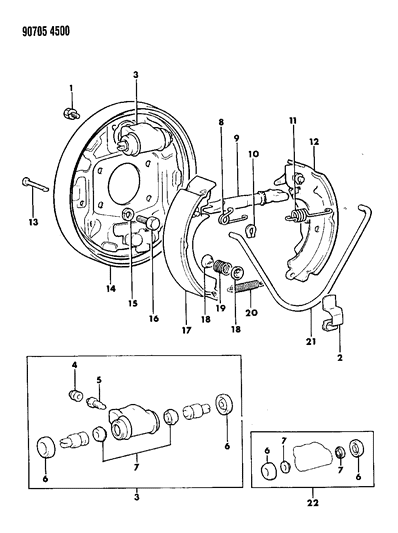

Diagram (1 of 1): BRAKE, SERVICE BRAKE, REAR DRUM 24, COLT LC - 41, SUMMIT LC LARGE DIA. 9 1/2" X 1 1/2"

1990 Dodge Colt Brake, Rear Drum Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
MT191887
BOLT, (Washer Assembled 6x12)
- Require Quantity: 4
- Package Quantity: 1

2
MB082240
CLIP, Rear Brake Shoe to Shoe Spring
- Require Quantity: 2

3
MB193411
CYLINDER ASSEMBLY, Rear Brake Wheel
3/4" Bore
Require Quantity: 2
Package Quantity: 1
3
MB618188
CYLINDER ASSEMBLY, Rear Brake Wheel
- 11/16" Bore
- Require Quantity: 2

4
MV026287
CAP
- Require Quantity: 2
- Package Quantity: 1

5
MB366146
SCREW, Brake Caliper Bleeder
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 4610A018

8
MB366353
SPRING, Rear Brake Shoe Anti-Rattle, Lt.
SPRING, Rear Brake Shoe Anti-Rattle, Lt.
8
MB366354
SPRING, Rear Brake Shoe Anti-Rattle, Lt.
- Rt.

9
MB366336
ADJUSTER, Rear Brake Shoe Slack, Lt.
ADJUSTER, Rear Brake Shoe Slack, Lt.
9
MB366337
ADJUSTER, Rear Brake Shoe Slack, Lt.
- Rt.

10
MA151648
RETAINER, Parking Brake Oper. Lever
- Require Quantity: 4
- Package Quantity: 1
$1.35 $0.92
1
Add To Cart

11
MB366355
SPRING, Rear Brake Shoe Auto. Adj., Lt.
SPRING, Rear Brake Shoe Auto. Adj., Lt.
11
MB366356
SPRING, Rear Brake Shoe Auto. Adj., Lt.
- Rt.

12
MB618190
SHOE ASSEMBLY, Rear Brake Secondary, Lt.
SHOE ASSEMBLY, Rear Brake Secondary, Lt.
12
MB618191
SHOE ASSEMBLY, Rear Brake Secondary, Lt.
- Rt.

13
MT191875
PIN, Rear Brake Shoe Hold-Down
- Require Quantity: 4

14
MB366441
PLATE, Rear Brake Backing, Lt.
PLATE, Rear Brake Backing, Lt.
14
MB366442
PLATE, Rear Brake Backing, Lt.
- Rt.

15
MS450043
WASHER, (Spring 10)
- Require Quantity: 8
- Package Quantity: 1

16
MB316607
CLEVIS, Rear Brake (Flange 10x14)
- Require Quantity: 8

17
MB618189
SHOE ASSEMBLY, Rear Brake Primary, Lt.

18
MA111608
CUP, Shoe Hold Down Spring
- Require Quantity: 8

19
MT381927
SPRING, Shoe Hold down
- Require Quantity: 4

20
MT191860
SPRING, Rear Brake Shoe Retainer
- Require Quantity: 2

21
MB082228
SPRING, Rear Brake Shoe to Shoe
- Require Quantity: 2

22
MB134975
CUP and BOOT KIT, Rear Brake Wheel Cyl.
- Require Quantity: 2
- Package Quantity: 1
$11.54 $7.07
1
Add To Cart

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1990 Dodge Colt parts. Parts like Brake, Rear Drum are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.6L, Open. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission, Open.
