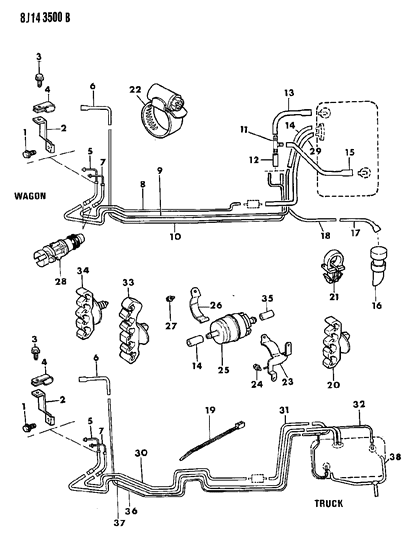

Diagram (1 of 1): FUEL FUEL LINES 2.5L EFI ENGINE CHEROKEE, WAGONEER, COMANCHE

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
J0271444
BOLT

2
53003045
BRACKET

3
34201193
SCREW

4
J4007063
CLIP

5
53004496
HOSE ASSEMBLY, Fuel Return

6
53004608
HOSE

7
53004495
HOSE ASSEMBLY, Fuel Supply

8
53004486
TUBE, Fuel Supply

9
53004487
TUBE, Fuel Return

10
53002651
TUBE, Fuel Return - w/Unleaded Fuel

11
J3210891
TEE
$17.84 $14.02
1
Add To Cart

12
J8125995
HOSE, Bulk

13
53000194
HOSE, Vent

14
J8125823
HOSE, Return - Bulk

15
33000058
HOSE, Vent

16

J5352955
CAP, Vent - w/Leaded Fuel - ECE
$8.80 $5.90
1
Add To Cart

17
53001740
HOSE - w/Leaded Fuel - ECE

18
53001741
TUBE, Fuel Vent - w/Leaded Fuel - ECE

19
56001144
STRAP, Tie
- Require Quantity: 3
- Package Quantity: 1
$0.35 $0.29
1
Add To Cart

20
53000585
CLIP

21
34201633
CLIP

22
33000785
CLAMP, Hose
.47" to .78"
Replaced By: 6502081
$4.70 $3.18
1
Add To Cart
22
33000786
CLAMP, Hose
- .28" to .59"

23
53002198
BRACKET, Mounting

24
34201756
SCREW
- Require Quantity: 2
- Package Quantity: 1

25

33000076
FILTER, Fuel

26
33000203
CLAMP, Fuel Filter

27
11502453
SCREW
- Replaced By: 34201895

28
83502745
REPAIR PACKAGE
- Require Quantity: 2
- Package Quantity: 1
$27.85 $20.50
1
Add To Cart

29
53002189
HOSE, Supply

30
53004416
TUBE, Fuel Supply

31
53002192
TUBE, Fuel Supply

32
53003426
HOSE ASSEMBLY
7 Ft. Box - Canada
32
53004723
HOSE ASSEMBLY
- 7 Ft. Box - U.S.
32
53004726
HOSE ASSEMBLY
- 6 Ft. Box - U.S.
32
53004731
HOSE ASSEMBLY
- 6 Ft. Box - Canada

33
34202414
CLIP, Tube

34
34202371
CLIP

35
J3225790
HOSE, Bulk
TUBE, 5/16"ID x 1.50 L
35
J8125781
HOSE, Bulk
- HOSE, Bulk

36
53004418
TUBE, Fuel Vent

37
53004417
TUBE, Fuel Return

38
53003427
HOSE ASSEMBLY - Canada 1987

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1990 Jeep Wrangler parts. Parts like Fuel Line are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 4.2L. Transmission: 3-Speed Automatic Transmission, 5-Speed Manual Transmission.
