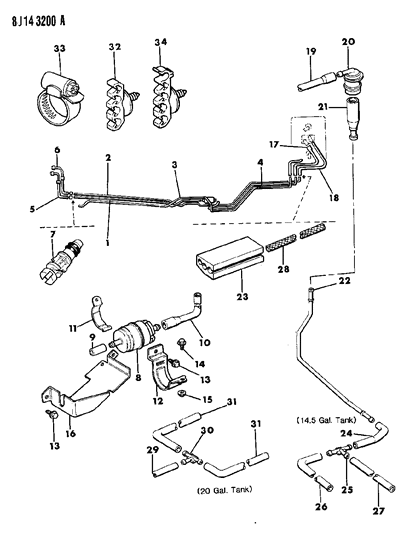

Diagram (1 of 1): FUEL FUEL LINES U.S., CANADA AND ECE WRANGLER, YJ

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
53002194
TUBE, Fuel Supply
2.5L Eng.
1
53003601
TUBE, Fuel Supply
- 4.2L Eng.

2
53002196
TUBE, Fuel Return
2.5L Eng.
2
53003602
TUBE, Fuel Return
- 4.2L Eng.

3
53003537
TUBE, Fuel Vent

4
53002195
TUBE, Fuel Supply - 2.5L Eng.

5
53002163
HOSE ASSEMBLY, Fuel Supply - 2.5L Eng.

6
53002167
HOSE ASSEMBLY, Fuel Return - 2.5L Eng.

7
83502745
REPAIR PACKAGE - 2.5L Eng.
- Require Quantity: 2
- Package Quantity: 1
$27.85 $20.50
1
Add To Cart

8

33000076
FILTER, Fuel - 2.5L Eng.

9
J8125823
HOSE, Bulk - 2.5L Eng.

10
53004014
HOSE - 2.5L Eng.
$43.10 $29.68
1
Add To Cart

11
33000203
CLAMP, Fuel Filter - 2.5L Eng.

12
53002199
BRACKET, Mounting - 2.5L Eng.

13
34201756
SCREW - 2.5L Eng.
- Require Quantity: 6
- Package Quantity: 1

14
11503877
BOLT - 2.5L Eng.

15
11503745
NUT - 2.5L Eng.

16
53003536
SHIELD - 2.5L Eng.

17
53003597
HOSE, Supply
14.5 Gal. Tank
17
53003607
HOSE, Supply
- 20 Gal. Tank

18
53003606
HOSE, Return

19
53004053
HOSE, Vent

20

J5360058
VALVE, Vent

21
53004047
CONNECTOR

22
53004048
TUBE, Fuel Vent

23
53003646
GROMMET, Hose

24
J3232942
HOSE, Vent

25
J3237497
TEE

26
J3228132
HOSE, Vent (Modify to Fit)

27
J8125781
HOSE, Vent - Bulk

28
32001056
SLEEVE - 20 Gal. Tank

29
83501071
HOSE, Bulk

30
J3239827
TEE

31
83300080
HOSE, Bulk

32
34202371
CLIP

33
33000785
CLAMP, Hose
.47" to .79"
Replaced By: 6502081
$4.70 $3.18
1
Add To Cart
33
33000786
CLAMP, Hose
- .28" to .59"
33
J3203076
CLAMP, Hose
- .25" to 1.06"
- Replaced By: 53041045
$13.65 $9.15
1
Add To Cart

34
34202728
CLIP

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1990 Jeep Wrangler parts. Parts like Fuel Lines are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 4.2L. Transmission: 3-Speed Automatic Transmission, 5-Speed Manual Transmission.
