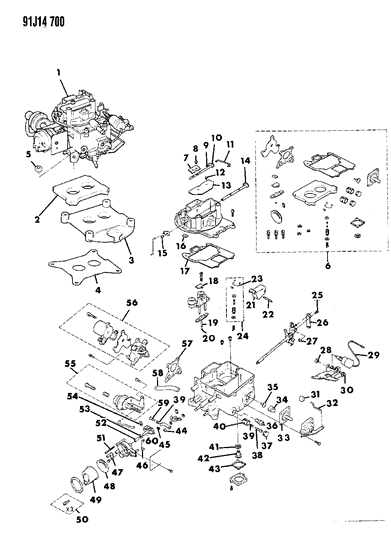

Diagram (1 of 1): FUEL CARBURETOR AND COMPONENT PARTS 5.9L ENGINE GRAND WAGONEER

1991 Jeep Grand Wagoneer Carburetor & Component Parts Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
53006748
CARBURETOR - Tag #0RHA2

2
J3229622
GASKET, Carburetor

3
J3240515
INSULATOR, Carburetor
$21.67 $17.03
1
Add To Cart

4
J3191886
GASKET, Carb. Adapter

5
J4003825
NUT
- Require Quantity: 4

6
83502174
REPAIR PACKAGE, Carburetor

7
J8128320
VALVE, Air

8
J8128321
SCREW
- Require Quantity: 2

9
J8128323
CLIP, Retaining

10
J8128319
SHAFT

11
J8128322
LINK

12
J3209901
SCREW
- Require Quantity: 2

13
J4488175
VALVE, Choke

14
J8128318
SHAFT

16
J3209880
SEAL

17
83503356
GASKET, Air Horn

18
J4488180
PLATE

19
J8123037
WEIGHT

20
S0145637
BALL, Discharge Check

21
83500930
FLOAT, Carburetor

22
J3209910
SHAFT

23
J8121330
RETAINER

24
J8128309
NEEDLE and SEAT

25
J4003924
SCREW

26
J5352990
ADAPTER

27
J0271163
NUT

28
S9420169
NUT

29
83505563
SOLENOID, Idle Speed

30
J8121166
BRACKET ASSEMBLY

31
83503368
TRUNNION

32
83503367
ROD

33
J8133833
DIAPHRAGM ASSEMBLY, Accelerator Pump

34
J8125040
SPRING, Pump

35
83501195
VALVE, Check

36
J0137406
FITTING

37
J8133831
CAP
- Require Quantity: 2

38
J8133890
SCREW, Idle Mixture
- Require Quantity: 2

39
J3209917
SPRING
- Require Quantity: 3

40
J8133832
PLUG
- Require Quantity: 2

41
J8127515
GASKET

42
J8125042
VALVE, Power

43
J3209885
GASKET

44
J0271169
NUT

45
J4488171
CLIP, Retaining
- Require Quantity: 3

46
J3209893
ROD

47
J8128327
LEVER

48
83502166
GASKET, Choke Cover

49
J8133889
COVER ASSEMBLY

50
J8133834
SCREW PACKAGE

51
J4485441
SCREW
- Require Quantity: 3

52
J8125987
BUSHING

53
J3209925
CLIP, Retaining

54
J3209922
CLIP, Retaining

55
J8134496
DIAPHRAGM, Choke

56
J8128314
COMPENSATOR, Altitude

57
J8128315
GASKET

58
J8125812
HOSE, 3/16" I.D. Bulk

59
J8121329
SCREW, Fast Idle

60
J8128276
LEVER ASSEMBLY

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1991 Jeep Grand Wagoneer parts. Parts like Carburetor & Component Parts are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.9L. Transmission: 3-Speed Automatic Transmission.
