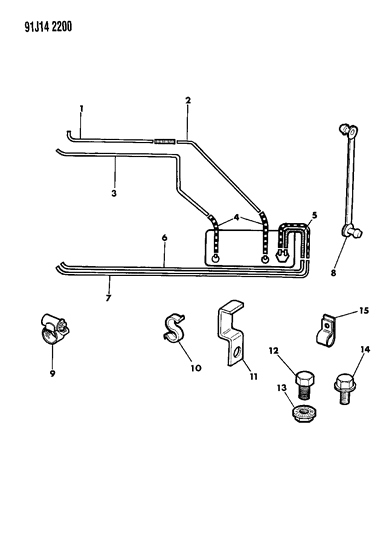

Diagram (1 of 1): FUEL FUEL LINES 5.9L ENGINE GRAND WAGONEER

1991 Jeep Grand Wagoneer Fuel Line Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
J5361733
TUBE, Vent

2
J5364188
TUBE, Vent

3
J5361555
TUBE, Vent

4
4443175
HOSE, .25" I.D. - Bulk

5
4443176
HOSE, .31" I.D. - Bulk
- Replaced By: HFV00516

6
J5361195
TUBE, Fuel Supply

7
53002557
TUBE, Fuel Return

8
J4001712
FASTENER

9
33000785
CLAMP, Hose
- .47" to .78"
- Replaced By: 6502081
$4.70 $3.18
1
Add To Cart
9
33000786
CLAMP, Hose
- .28" to .59"

10
J4004928
CLIP, S Type

11
J4004901
CLIP

12
S0179814
BOLT

13
J4003587
NUT
- Replaced By: 152472
$8.55 $7.01
1
Add To Cart

14
J4005063
SCREW
- .31"
14
J9426241
SCREW
- .25"

15
J0120522
CLIP
- .28"
15
J0192107
CLIP
- .34"

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1991 Jeep Grand Wagoneer parts. Parts like Fuel Line are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.9L. Transmission: 3-Speed Automatic Transmission.
