3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

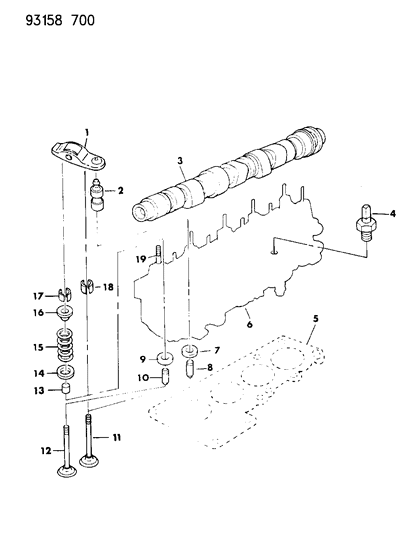

- 1.ENGINE, 4 CYLINDER CAMSHAFT & VALVES 2.5 L ENGINE
- 2.ENGINE, 4 CYLINDER CAMSHAFT AND VALVES 2.2 L ENGINE E.F.I.
- 3.ENGINE, 6 CYLINDER CAMSHAFT & VALVES 3.0 L ENGINE
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
1
4397767ROCKER, Valve (Roller)
1
4298143VALVE, Exhaust - Standard- 0.15mm O/S
- Require Quantity: 4
1
4298144VALVE, Exhaust - Standard- 0.40mm O/S
- Require Quantity: 4
1
2
4298138VALVE, Intake - Standard EDM Engine- 0.15mm O/S
- Require Quantity: 4
2
4298139VALVE, Intake - Standard EDM Engine- 0.40mm O/S
- Require Quantity: 4
2
4298140VALVE, Intake - Standard EDM Engine- 0.80mm O/S
- Require Quantity: 4
2
2
4323245VALVE, Intake - Standard EDM Engine- 0.15MM O/S
- Require Quantity: 4
2
4323246VALVE, Intake - Standard EDM Engine- 0.40MM O/S
- Require Quantity: 4
2
4323247VALVE, Intake - Standard EDM Engine- 0.80MM O/S
- Require Quantity: 4
MD145656
CAMSHAFT ASSEMBLY,(A)-Lt.
3
4387850CAMSHAFT, w/Standard Journals- CAMSHAFT, w/Standard Journals
3
4448479CAMSHAFT, w/Standard Journals
4
4105295
NIPPLE, Thermostat Water By-Pass (Also in Group 7)
4
5203792SEAT, Exhaust Valve
5
4483714GUIDE, Intake Valve
MD125669SPRING, Rocker Shaft Rt.
6
6
5203472SEAT, Intake Valve
7
5203472SEAT, Intake Valve 43.375 MM O/D
8
4483714GUIDE, Intake Valve 12.540 MM O/D 40 MM Lgh.
9
4105295
NIPPLE, Thermostat Water By-Pass (Also in Group 7)
9
5203792SEAT, Exhaust Valve 36.815 MM O/D
10
4387850
CAMSHAFT, Standard Journals
10
4483711GUIDE, Exhaust Valve 12.540 MM O/D 43 MM Lgh.
10
MD061895LOCK, Valve Spring Retainer
MD066498RETAINER, Valve Spring
11
4298138VALVE, Intake Standard- 0.15 MM O/S
- Require Quantity: 4
11
4298139VALVE, Intake Standard- 0.40 MM O/S
- Require Quantity: 4
11
4298140VALVE, Intake Standard- 0.80 MM O/S
- Require Quantity: 4
12
12
4298143VALVE, Exhaust Standard- 0.15 MM O/S
- Require Quantity: 4
12
4298144VALVE, Exhaust Standard- 0.40 MM O/S
- Require Quantity: 4
12
13
4105366SEAL, Valve Guide Standard- 0.15 MM O/S (Green)
- Require Quantity: 8
13
4105367SEAL, Valve Guide Standard- 0.40 MM O/S (Yellow)
- Require Quantity: 8
13
4105368SEAL, Valve Guide Standard- 0.80 MM O/S (Red)
- Require Quantity: 8
13
MD073398SPRING, Valve Intake and Exhaust
14
4397767ROCKER, Valve (Roller)
14 MD096944SEAT, Valve Spring- SEAT, Valve Spring
- Require Quantity: 12
15
15 15
16
5203578RETAINER, Valve Spring
16
5203578RETAINER, Valve Spring Intake and Exhaust
16
17
18
19
4105366SEAL, Valve Guide - Standard EDM Engine- 0.15mm O/S (Green)
- Require Quantity: 8
19
4105367SEAL, Valve Guide - Standard EDM Engine- 0.40mm O/S (Yellow)
- Require Quantity: 8
19
4105368SEAL, Valve Guide - Standard EDM Engine- 0.80mm O/S (Red)
- Require Quantity: 8
19 19
4667243SEAL, Valve Guide - Standard EDM Engine- Standard, Flex Fuel Engine
- Require Quantity: 8
19
4667376SEAL, Valve Guide - Standard EDM Engine- 0.15mm O/S
- Require Quantity: 8
19
4667377SEAL, Valve Guide - Standard EDM Engine- 0.40mm O/S
- Require Quantity: 8
19
4667378SEAL, Valve Guide - Standard EDM Engine- 0.80mm O/S
- Require Quantity: 8
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1993
Dodge Shadow parts. Parts like Camshaft & Valves are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L, 6 Cyl 3.0L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
