3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

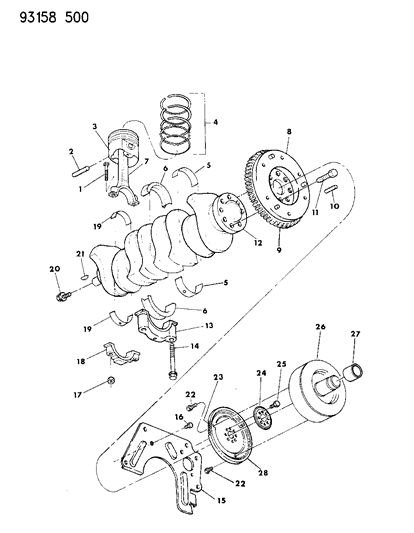

- 1.ENGINE, 4 CYLINDER CRANKSHAFT & PISTONS 2.5 L ENGINE
- 2.ENGINE, 4 CYLINDER CRANKSHAFT, PISTONS AND TORQUE CONVERTER 2.2 L ENGINE E.F.I.
- 3.ENGINE, 6 CYLINDER CRANKSHAFT, PISTONS AND TORQUE CONVERTER 3.0 L ENGINE
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 15241076
BEARING PACKAGE, Connecting Rod Standard- BEARING PACKAGE, Connecting Rod Standard
- Require Quantity: 4
- 1
- 1
- 14448934
BOLT, Connecting Rod Bearing Cap- Require Quantity: 8
- 1MD105201
RING SET, Piston (Up to Prod Date 11-30-92)- (0.25 MM O/S)
- 1MD105202
RING SET, Piston (Up to Prod Date 11-30-92)- (0.50 MM O/S)
- 1MD105203
RING SET, Piston (Up to Prod Date 11-30-92)- (0.75 MM O/S)
- 1MD105204
RING SET, Piston (Up to Prod Date 11-30-92)- (1.00 MM O/S)
- 1MD129548
RING SET, Piston (Up to Prod Date 11-30-92)- (Std.) (RING SET, Piston(EUROPE)(Up to Prod Date 11-30-92))
- 1MD129549
RING SET, Piston (Up to Prod Date 11-30-92)- (0.25 MM O/S) (RING SET, Piston(EUROPE)(Up to Prod Date 11-30-92))
- 1MD129550
RING SET, Piston (Up to Prod Date 11-30-92)- (0.50 MM O/S) (RING SET, Piston(EUROPE)(Up to Prod Date 11-30-92))
- 1MD129551
RING SET, Piston (Up to Prod Date 11-30-92)- (0.75 MM O/S) (RING SET, Piston(EUROPE)(Up to Prod Date 11-30-92))
- 1MD129552
RING SET, Piston (Up to Prod Date 11-30-92)- (1.00 MM O/S) (RING SET, Piston(EUROPE)(Up to Prod Date 11-30-92))
- 1
- 1MD301717
RING SET, Piston (Up to Prod Date 11-30-92)- (0.25 MM O/S) ((Prod Date 12-01-92 and After))
- 1MD301718
RING SET, Piston (Up to Prod Date 11-30-92)- (0.50 MM O/S) ((Prod Date 12-01-92 and After))
- Replaced By: MD329757
- 1MD301719
RING SET, Piston (Up to Prod Date 11-30-92)- (0.75 MM O/S) ((Prod Date 12-01-92 and After))
- 1MD301720
RING SET, Piston (Up to Prod Date 11-30-92)- (1.00 MM O/S) ((Prod Date 12-01-92 and After))
- 1MD301803
RING SET, Piston (Up to Prod Date 11-30-92)- (Std.) ((Prod Date 12-01-92 and After)(EUROPE))
- 1MD301804
RING SET, Piston (Up to Prod Date 11-30-92)- (0.25 MM O/S) ((Prod Date 12-01-92 and After)(EUROPE))
- 1MD301805
RING SET, Piston (Up to Prod Date 11-30-92)- (0.50 MM O/S) ((Prod Date 12-01-92 and After)(EUROPE))
- 1MD301806
RING SET, Piston (Up to Prod Date 11-30-92)- (0.75 MM O/S) ((Prod Date 12-01-92 and After)(EUROPE))
- 1MD301807
RING SET, Piston (Up to Prod Date 11-30-92)- (1.00 MM O/S) ((Prod Date 12-01-92 and After)(EUROPE))
- 2
- 3
4227678
NUT, Connecting Rod Bearing Cap Bolt- Require Quantity: 8
- 3$45.34 $35.631
- 3MD131251
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (0.25 MM O/S) Rt.
- Require Quantity: 3
- 3MD131252
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (0.50 MM O/S) Rt.
- Require Quantity: 3
- 3MD131253
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (0.75 MM O/S) Rt.
- Require Quantity: 3
- 3MD131254
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (1.00 MM O/S) Rt.
- Require Quantity: 3
- 3
- 3MD152575
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (0.25 MM 0/S) Lt.
- Require Quantity: 3
- 3MD152576
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (0.50 MM 0/S) Lt.
- Require Quantity: 3
- 3MD152577
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (0.75 MM 0/S) Lt.
- Require Quantity: 3
- 3MD152578
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (1.00 MM 0/S) Lt.
- Require Quantity: 3
- 3
MD197808
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (Std.) Rt. (PISTON, w/PIN, (Prod Date 12-01-92 and After))
- Require Quantity: 3
- Package Quantity: 1
- 3
MD197814
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (Std.) Lt. (PISTON, w/PIN, (Prod Date 12-01-92 and After))
- Require Quantity: 3
- Package Quantity: 1
$44.34 $34.851 - 3MD301733
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (0.25 MM O/S) Rt. (PISTON, w/PIN, (Prod Date 12-01-92 and After))
- Require Quantity: 3
- 3MD301734
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (0.50 MM O/S) Rt. (PISTON, w/PIN, (Prod Date 12-01-92 and After))
- Require Quantity: 3
- 3MD301735
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (0.75 MM O/S) Rt. (PISTON, w/PIN, (Prod Date 12-01-92 and After))
- Require Quantity: 3
- 3MD301736
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (1.00 MM O/S) Rt. (PISTON, w/PIN, (Prod Date 12-01-92 and After))
- Require Quantity: 3
- 3MD301741
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (0.25 MM O/S) Lt. (PISTON, w/PIN, (Prod Date 12-01-92 and After))
- Require Quantity: 3
- 3MD301742
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (0.50 MM O/S) Lt. (PISTON, w/PIN, (Prod Date 12-01-92 and After))
- Require Quantity: 3
- 3MD301743
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (0.75 MM O/S) Lt. (PISTON, w/PIN, (Prod Date 12-01-92 and After))
- Require Quantity: 3
- 3
MD301744
PISTON, w/PIN, (Up to Prod Date 11-30-92)- (1.00 MM O/S) Lt. (PISTON, w/PIN, (Prod Date 12-01-92 and After))
- Require Quantity: 3
- 34626120
PISTON, w/Pin- 'C' Size 87.468 MM
- Require Quantity: 4
- 34728765
PISTON, w/Pin- 'D' Size 87.481 MM
- Require Quantity: 4
- 34728769
PISTON, w/Pin- 'E' Size 87.494 MM
- Require Quantity: 4
- 34773796
PISTON, w/Pin- 'B' Size 87.455 MM
- Require Quantity: 4
- 4$22.00 $17.031
- 4
- 46501934
SCREW, Crankshaft Bearing Cap- Require Quantity: 10
- 54637595
BEARING PACKAGE, Crankshaft Main #1,2,4,5, Standard- BEARING PACKAGE, Crankshaft Main #1,2,4,5, Standard
- Require Quantity: 4
- 54637596
BEARING PACKAGE, Crankshaft Main #1,2,4,5, Standard- 0.025 MM U/S
- Require Quantity: 4
- 54637598
BEARING PACKAGE, Crankshaft Main #1,2,4,5, Standard- 0.250 MM U/S
- Require Quantity: 4
- 5
- 64637602
BEARING PACKAGE, Crankshaft # 3 Standard - 64637604
BEARING PACKAGE, Crankshaft # 3 Standard
- 64637602
BEARING PACKAGE, Crankshaft Main #3, Standard - 64637604
BEARING PACKAGE, Crankshaft Main #3, Standard
- 6
- 74637595
BEARING PACKAGE, Crankshaft # 1,2,4 or 5 Standard- BEARING PACKAGE, Crankshaft # 1,2,4 or 5 Standard
- Require Quantity: 4
- 74637596
BEARING PACKAGE, Crankshaft # 1,2,4 or 5 Standard- .025mm U/S
- Require Quantity: 4
- 74637598
BEARING PACKAGE, Crankshaft # 1,2,4 or 5 Standard- .250mm U/S
- Require Quantity: 4
- 7
- 74387736
ROD ASSEMBLY, Connecting
- 8MD096778
DAMPER ASSEMBLY, Crankshaft
- 84471317
FLYWHEEL, w/Ring Gear
- 9
6501099
BOLT, Drive Plate to Torque Converter- Require Quantity: 4
- 9
- 10MD144525
CRANKSHAFT
- 10
$8.80 $5.901
- 10
- 116501099
BOLT, Drive Plate to T/Converter- Require Quantity: 4
- 11
- 124723463
CONVERTER, Torque
- 124448495
CRANKSHAFT
- 12
- 136501193
BOLT, Drive Plate to Crankshaft- Require Quantity: 8
- 14
$8.70 $5.861
- 146501934
SCREW, Crankshaft Bearing Cap- Require Quantity: 10
- 144723463
TORQUE CONVERTER ASSEMBLY
- 15
- 15$8.70 $5.861
- 164471319
FLYWHEEL, w/Ring Gear
- 174448487
CRANKSHAFT
- 174227678
NUT, Connecting Rod Bearing Cap Bolt- Require Quantity: 8
- 18$8.80 $5.901
- 195241076
BEARING PACKAGE, Connecting Rod Standard- BEARING PACKAGE, Connecting Rod Standard
- Require Quantity: 4
- 195241077
BEARING PACKAGE, Connecting Rod Standard- 0.025 U/S (2----Bearing, Connecting Rod)
- Require Quantity: 4
- Package Quantity: 1
- 195241079
BEARING PACKAGE, Connecting Rod Standard- 0.250 U/S (2----Bearing, Connecting Rod)
- Require Quantity: 4
- Package Quantity: 1
- 19
- 19
- 206501947
SCREW, Crankshaft Sprocket
- 214471319
FLYWHEEL ASSY, (Not Used w/Modular Clutch)
- 21
$19.351
- 226501099
BOLT, Drive Plate to Torque Converter (M10x1.50-13.2 Special)- Require Quantity: 4
- 24$8.70 $5.861
- 24
- 244626683
RING SET, Piston for Complete Engine- Flex Fuel Engine (STANDARD)
- 256501193
BOLT, Drive Plate to Crankshaft (M10x1.0-18)- Require Quantity: 8
- 264448934
BOLT, Connecting Rod Bearing Cap- Require Quantity: 8
- 26$314.00 $212.061
- 26
- 26
- 26$364.00 $300.571
- 26$364.00 $341.371
- 276501947
SCREW and WASHER, Crankshaft Sprocket
- 28$19.351
- 28
- 294728945
PISTON, PIN, and ROD Assy(exc turbo)- (A-Size) 3.4435"
- Require Quantity: 4
- 294728946
PISTON, PIN, and ROD Assy(exc turbo)- (B-size) 3.4440"
- Require Quantity: 4
- 294728947
PISTON, PIN, and ROD Assy(exc turbo)- (C-size) 3.4446"
- Require Quantity: 4
- 294728948
PISTON, PIN, and ROD Assy(exc turbo)- (D-size) 3.4451"
- Require Quantity: 4
- 294728949
PISTON, PIN, and ROD Assy(exc turbo)- (E-size) 3.4460"
- Require Quantity: 4
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1993 Dodge Shadow parts. Parts like Crankshaft , Pistons And Torque Converter are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L, 6 Cyl 3.0L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
