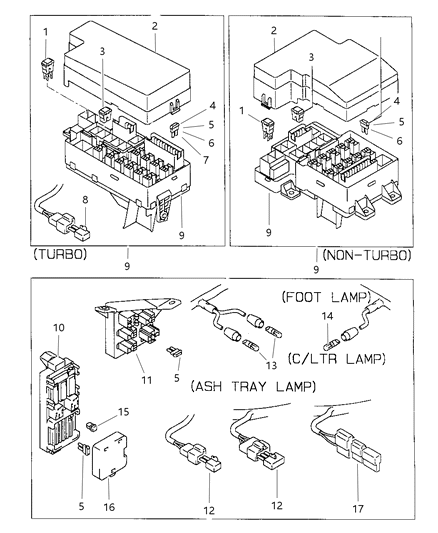

Diagram (1 of 1): Electrical Wiring--attaching Parts--relay Boxes 3 Of 3
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
3 3
MS810987FUSE Blade Type 15 AMP, Blue
6
MS810986FUSE Blade Type 10 AMP, Red
8
MU804011DIODE Body Wiring
9
10
MB920230
JUNCTION BLOCK Relay
12
MU804011DIODE Body Wiring- 1.5A, 2-Term.
- Require Quantity: 2
12
17
MB606742
RESISTOR Anti-lock Brakes
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1997
Chrysler Sebring Coupe parts. Parts like Wiring - Attaching Parts - Relay Boxes are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.0L, 6 Cyl 2.5L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
