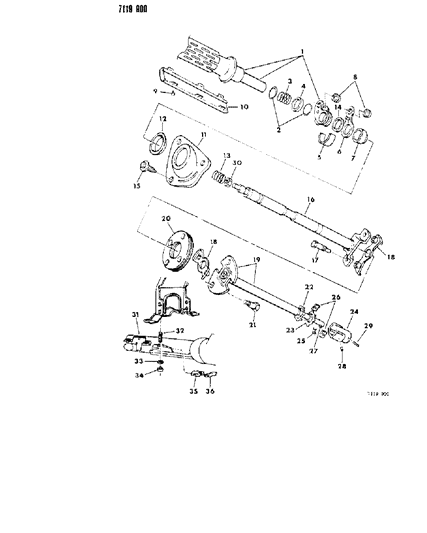

Diagram (1 of 1): STEERING COLUMN, STEERING, LOWER WITHOUT TILT M BODY

1987 Dodge Diplomat Column, Steering, Lower Without Tilt Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
3748247
TUBE, Strg. Col. Gearshift, w/Auto. Trans., w/Col.Shift

4
4147318
BEARING, Strg. Col. Shaft
BEARING, Strg. Col. Shaft
$22.60 $12.25
1
Add To Cart
4
4147319
BEARING, Strg. Col. Shaft
- WEDGE, Shaft Bearing

5
4333108
SEAL, Strg. Col. Jacket to Tube

7
3748229
SUPPORT, Shaft Bearing (Floor Shift)

9
6015925
RETAINER, Wiring Trough
- Require Quantity: 4

10
4188202
TROUGH, Strg. Col. Wiring

11
3748802
PLATE, Jacket Support

12
3748634
GROMMET, Strg. Col.

13
3748242
SPRING, Strg. Col. Lower Bearing

15
181088
SCREW, w/Washer Jacket Support Plate
- Require Quantity: 3
- Package Quantity: 1

16
4094080
COUPLING, Upper
Shaft (Consist of:)
16
4333644
COUPLING, Upper
- COUPLING, Upper

17
6031801
BOLT, Strg. Col. Shaft Coupling
- Require Quantity: 2

18
4186826
STRAP PACKAGE, Steering Col. Coupling, w/Bolts
- Require Quantity: 2

19
3748649
COUPLING, Lower
Shaft (Consist of:)
19
4333643
COUPLING, Lower
- COUPLING, Lower

20
3748310
COUPLING, Strg. Col. Shaft

21
6031802
BOLT, Strg. Col. Shaft Coupling
- Require Quantity: 2

22
2530538
COVER, Shaft Coupling Body

23
4019278
SEAL, Shaft Coupling Body

24
3748268
BODY, Strg. Col. Shaft Coupling, w/Power Strg.

25
2925492
SPRING, Shaft Coupling Body

26
2800738
SHOE, Strg. Col. Shaft Coupling Body
- Require Quantity: 2

27
2266743
PIN, Strg. Col. Intermediate Shaft Coupling

28
6029951
PIN, Coupling Body

29
6028750
PIN, Spring Coupling

30
6500906
NUT, Steering Wheel

31
4019759
PLATE, Strg. Col. Switch Mounting

32
6027947
STUD, Strg. Col. Mounting
- Require Quantity: 2

34
6027403
NUT, Stud
- Require Quantity: 2

35
4147290
CLIP, Strg. Col. Ground

36
3748492
SPACER, Strg. Col. Ground Clip
- Require Quantity: 2

5211212
STRAP, Strg. Column Ground (Not Shown)

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1987 Dodge Diplomat parts. Parts like Column, Steering, Lower Without Tilt are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: Automatic Transmission.
