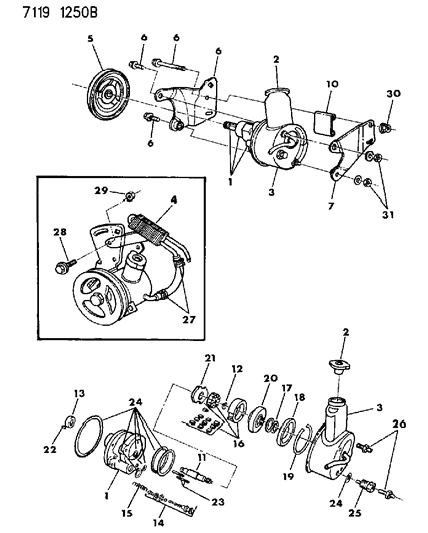

Diagram (1 of 1): STEERING PUMP, POWER STEERING PULLEY, BRACKETS, OIL COOLER M BODY

1987 Dodge Diplomat Power Steering Pump, Pulley, Brackets Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
3815971
OIL PUMP, Power Strg.

2
4219036
CAP, Oil Pump Reservoir

3
2891741
RESERVOIR, Power Strg. Oil Pump

4
3643482
COOLER, Power Strg. Pump Oil

5
3870089
PULLEY, Strg. Pump w/318 Eng. (See Note)

6
6500399
BOLT, Pump Mounting Bracket
Pump Mounting Bracket Spacer
$9.80 $6.61
1
Add To Cart
6
0433105
BOLT, Pump Mounting Bracket
6
6500374
BOLT, Pump Mounting Bracket
- BOLT, Pump Mounting Bracket

6
4179736
BRACKET, Power Strg. Pump, Front, w/318 Eng.

7
4179738
BRACKET, Power Strg. Pump Rear, w/318 Eng.

10
6029507
SPACER, Pump Mounting Bracket, w/318 Eng.

11
3815960
SHAFT, w/Retaining RING PACKAGE, Pump
SERVICE PACKAGE, Ring Retaining
11
3815961
SHAFT, w/Retaining RING PACKAGE, Pump
- SHAFT, w/Retaining RING PACKAGE, Pump

13
2537899
SEAL, Pump Drive Shaft

14
2891460
VALVE, Pump Flow Control Pressure Relief

15
2537833
SPRING, Pump Flow Control
$25.01 $19.35
1
Add To Cart

16
3815962
REPAIR PACKAGE, Pump Ring and Rotor Vane

17
3815966
SPRING, Pump Pressure Plate

18
2537820
PLATE, Pump End

19
2537823
RING, Pump End Plate Retainer

20
3815967
PLATE, Pump Pressure

21
3815914
PLATE, Pump Thrust

23
2537819
PIN, Pump Ring Dowel
- Require Quantity: 2

24
4333377
SEAL PACKAGE, Pump
- Replaced By: 4333377AB

25
3643493
FITTING, Pump Discharge

26
3643466
STUD, Pump Mounting
- Require Quantity: 2

29
6025020
NUT, Oil Cooler Mounting

30
6100525
NUT, Bolt Mounting Bracket
- Require Quantity: 2
- Package Quantity: 1

31
6100053
NUT, w/Washer

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1987 Dodge Diplomat parts. Parts like Power Steering Pump, Pulley, Brackets are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: Automatic Transmission.
